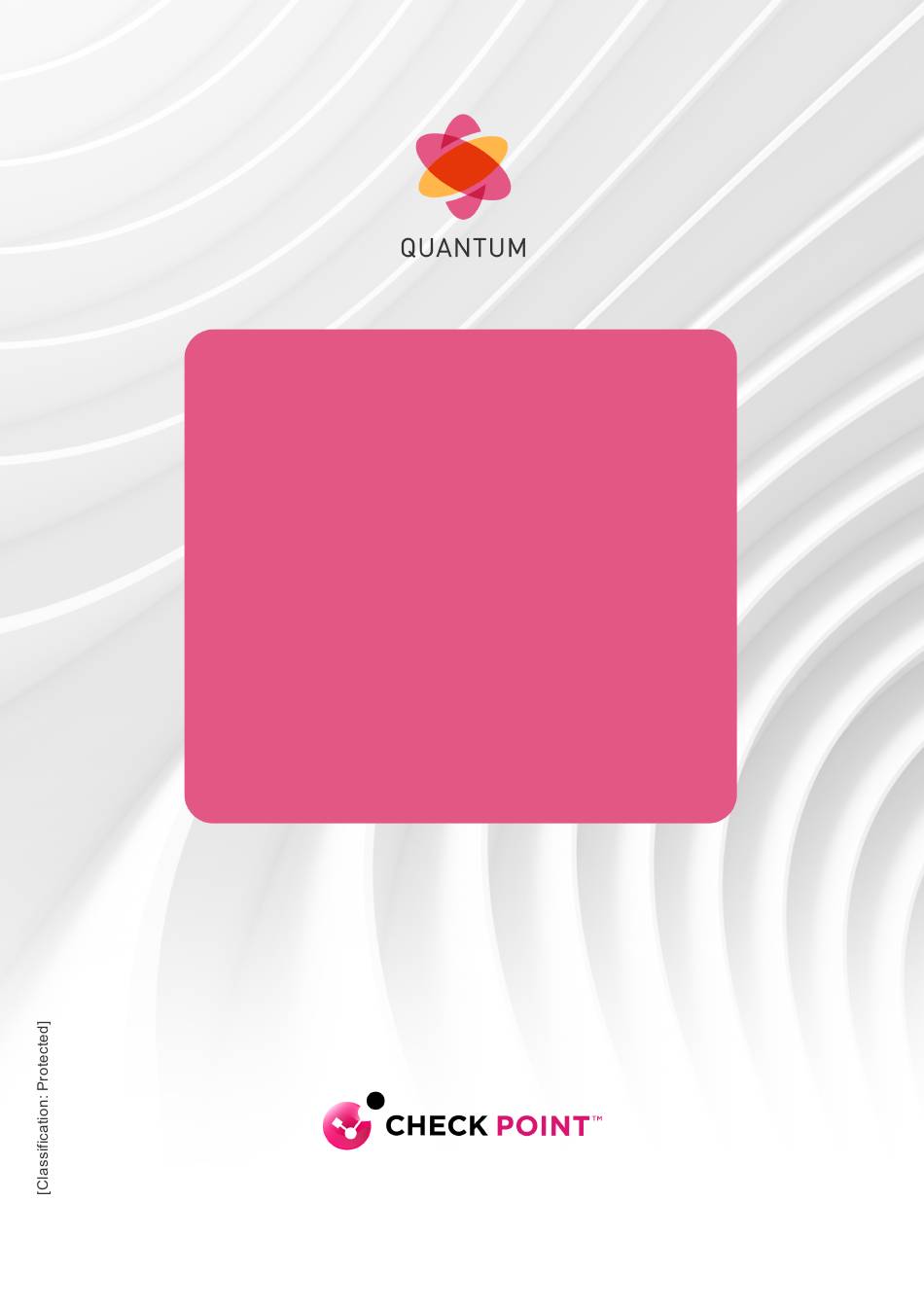

  • Page 1 03 October 2022 SANDBLAST TE2000XN- 28VM/56VM APPLIANCES Getting Started Guide...
  • Page 2 Check Point. While every precaution has been taken in the preparation of this book, Check Point assumes no responsibility for errors or omissions. This publication and features described herein are subject to change without notice.
  • Page 3 Web browser. Download the latest version of this document in PDF format. Feedback Check Point is engaged in a continuous effort to improve its documentation. Please help us by sending your comments. Revision History Date Description 03 October 2022 Added a new section - "Storage Device"...

  • Page 4: Table Of Contents

    Table of Contents Table of Contents Safety, Environmental, and Electronic Emissions Notices Declaration of Conformity Remarques relatives à la sécurité, l'environnement et les émissions électroniques Sicherheits-, Umwelt- und EMV-Hinweise Introduction Welcome TE2000XN Appliances Overview Shipping Carton Contents Terminology Mounting the TE2000XN Appliances in a Rack Appliance Physical Specifications Appliance Air Vents Configuring TE2000XN Appliances...
  • Page 5 Table of Contents Support Where To From Here? Sandblast TE2000XN-28VM/56VM Appliances Getting Started Guide   |   5...

  • Page 6: Safety, Environmental, And Electronic Emissions Notices

    Safety, Environmental, and Electronic Emissions Notices Safety, Environmental, and Electronic Emissions Notices Read the following warnings before setting up or using the appliance. Warning - Do not block air vents. A minimum 1/2-inch clearance is required. Warning - Many components described in this document can be damaged by Electrostatic Discharge (ESD).
  • Page 7 Safety, Environmental, and Electronic Emissions Notices Lithium Battery Caution There is a risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Installation only by a skilled person who knows all Installation and Device Specifications which are to be applied.
  • Page 8 Safety, Environmental, and Electronic Emissions Notices 1. Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature specified by the manufacturer.
  • Page 9 Safety, Environmental, and Electronic Emissions Notices Information to user: The user's manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 10 Safety, Environmental, and Electronic Emissions Notices Product Disposal This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

  • Page 11: Declaration Of Conformity

    Declaration of Conformity Declaration of Conformity Name and address of the authorized trademark: Check Point Software Technologies Ltd. 5 Shlomo Kaplan Street, Tel Aviv 6789159, Israel. Brand name: Check Point Marketing models: TE2000XN Regulated models: QP-10 Manufacturer's name: Check Point Software Technologies Ltd.
  • Page 12 Declaration of Conformity Category Technical Specification Description EMC /EMI FCC/IC Information Technology Equipment - Radio FCC: FCC Part 15, Subpart B Class A Disturbance Characteristics ANSI C63.4-201 ICES-003 Issue 6: 2016(updated April 2017) Class A ICES-003 Issue 7 VCCI Information Technology Equipment - Radio VCCI-TECHNICAL REQUIREMENTS Disturbance Characteristics (VCCI-CISPR 32: 2016)

  • Page 13: Remarques Relatives À La Sécurité, L'environnement Et Les Émissions Électroniques

    Remarques relatives à la sécurité, l'environnement et les émissions électroniques Remarques relatives à la sécurité, l'environnement et les émissions électroniques Avant de mettre en place ou d'utiliser l'appareil, veuillez lire les avertissements suivants. Avertissement : ne pas obturer les aérations. Il faut laisser au moins 1,27 cm d'espace libre. Avertissement - Un grand nombre des composants décrits dans ce document peuvent être endommagés par Décharge électrostatique (ESD).
  • Page 14 Remarques relatives à la sécurité, l'environnement et les émissions électroniques Ne pas faire fonctionner le processeur sans refroidissement. Le processeur peut être endommagé en quelques secondes. Produit laser de classe 1 : un systìme laser totalement clos et contenant un laser de classe 1. Cet appareil n'est pas prévu pour être utilisé...
  • Page 15 Remarques relatives à la sécurité, l'environnement et les émissions électroniques Avertissement chambres informatiques Convient à une installation en Chambre Informatique conformément à l'Article 645 du National Electrical Code et au NFPA 75. Instructions de montage en rack Les instructions d'installation sont livrées avec les instructions de montage en rack ci-aprìs (ou similaires) : 1.
  • Page 16 Remarques relatives à la sécurité, l'environnement et les émissions électroniques Attention ! Le fabricant n'est pas responsable des éventuelles interférences radio ou TV dues à des modifications non autorisées du présent équipement. Ces modifications pourraient annuler le droit de l'utilisateur à faire fonctionner l'équipement.
  • Page 17 Remarques relatives à la sécurité, l'environnement et les émissions électroniques Déclaration de conformité VCCI Cette section présente la déclaration de conformité du Voluntary Control Council for Interference (VCCI) concernant les équipements de technologie de l'information, qui régit les émissions de fréquence radio au Japon.

  • Page 18: Sicherheits-, Umwelt- Und Emv-Hinweise

    Sicherheits-, Umwelt- und EMV-Hinweise Sicherheits-, Umwelt- und EMV- Hinweise Lesen Sie die folgenden Warnhinweise durch, bevor Sie das Gerät einrichten oder verwenden. Achtung - Halten Sie die Belüftungsöffnungen frei. Es ist ein Mindestabstand von 1,3 cm einzuhalten. Achtung - Viele in diesem Dokument beschriebene Komponenten können durch elektrostatische Entladung (ESD) beschädigt werden.
  • Page 19 Sicherheits-, Umwelt- und EMV-Hinweise Prozessor nicht ohne eine Kühlvorrichtung in Betrieb nehmen. Der Prozessor kann innerhalb weniger Sekunden Schaden nehmen. Laserproduktwarnung Klasse 1 - Dieses vollständig geschlossene Lasersystem enthält einen Laser der Klasse 1. Das Gerät ist nicht zur Verwendung im direkten Blickfeld von Arbeitsplätzen mit visueller Anzeige vorgesehen.
  • Page 20 Sicherheits-, Umwelt- und EMV-Hinweise Warnung IT-Raum Geeignet fÜr die Installation in IT-Räumen in Übereinstimmung mit Artikel 645 des National Electrical Code und NFPA 75. Anweisungen zur Rackmontage Die folgenden oder ähnliche Anweisungen zur Rackmontage sind in den Installationsanweisungen enthalten: 1. Erhöhte Betriebstemperatur - Bei Installation in einer geschlossenen oder Mehrfachgeräte-Rack- Baugruppe kann die Betriebsumgebungstemperatur der Rackumgebung höher als die Raumtemperatur sein.
  • Page 21 Sicherheits-, Umwelt- und EMV-Hinweise Dieses Gerät ist mit Part 15 der FCC Rules konform. Der Betrieb ist unter den folgenden zwei Bedingungen zulässig: (1) Das Gerät darf keine schädlichen Interferenzen verursachen und (2) das Gerät muss jede Art von Interferenz, selbst wenn diese Betriebsstörungen verursachen können, tolerieren können. Vorsicht! Der Hersteller übernimmt keine Verantwortung für Radio- oder Fernsehsignalstörungen, die durch nicht genehmigte Modifikationen des Geräts auftreten.
  • Page 22 Sicherheits-, Umwelt- und EMV-Hinweise Anschließen des Geräts an einen anderen Stromkreis als den, an den der Empfänger angeschlossen ist. Lassen Sie sich vom Händler oder einem erfahrenen Radio- bzw. Fernsehtechniker beraten. ICES (Konformitätserklärung Kanada) Dieses digitale Gerät der Klasse A ist mit der kanadischen Richtlinie ICES-003 konform. VCCI-Konformitätserklärung Dieser Absatz umfasst die Konformitätserklärung für den Voluntary Control Council for Interference by Information Technology Equipment (VCCI), der die Funkwellenemissionen in Japan regelt.

  • Page 23: Introduction

    Check Point products, consult the Check Point Support Center. Welcome to the Check Point family. We look forward to meeting all of your current and future network, application and management security needs. TE2000XN Appliances Overview The SandBlast TE2000XN appliance provides zero-day protection preventing infections from undiscovered exploits and advanced targeted attacks.

  • Page 24: Shipping Carton Contents

    Introduction Shipping Carton Contents This section describes the contents of the shipping carton. Item Description Appliance TE2000XN Cables and 2 power cables Adapters 2 PSU restraints 1 RJ45 network cable 1 RJ45 console cable 1 RJ45 loopback adapter 1 USB Type-C cable 2 x CPAC-TR-10SR-C transceivers 2 x QSFP to SFP adapter Rack Mounting...

  • Page 25: Terminology

    SmartDashboard: A Legacy SmartConsole GUI application that is used by the system administrator to create and manage specific settings for some Software Blades. Locally Managed Deployment: When all Check Point components responsible for both the management and enforcement of the Security Policy (the Security Management Server and the Security Gateway) are installed on the same machine.

  • Page 26: Mounting The Te2000Xn Appliances In A Rack

    You can install your TE2000XN appliance with the Telescopic Rails hardware. See the SandBlast TE2000XN Appliances Installing the Telescopic Rails booklet for the procedure. Appliance Physical Specifications These are the physical specifications of the Check Point appliance. Maximum Regulated Electrical Appliance...
  • Page 27 Mounting the TE2000XN Appliances in a Rack Sandblast TE2000XN-28VM/56VM Appliances Getting Started Guide   |   27...

  • Page 28: Configuring Te2000Xn Appliances

    Configuring TE2000XN Appliances Configuring TE2000XN Appliances Connecting to the Appliance CLI You can configure advanced options in Gaia from the Gaia Portal or the CLI. To connect to the command line interface of the appliances, use one of these: An SSH connection to the management interface (if SSHD is configured). A serial console cable and terminal emulation software, such as PuTTY (from Windows) or Minicom (from Unix/Linux).

  • Page 29: Initial Configuration

    Configuring TE2000XN Appliances Initial Configuration Configure the appliance with the First Time Configuration Wizard. See the Installation and Upgrade Guide related to the software version. Go to the Installing Security Gateways on Appliances section, and see the instructions to use the First Time Configuration Wizard.

  • Page 30: Te2000Xn Appliances Hardware

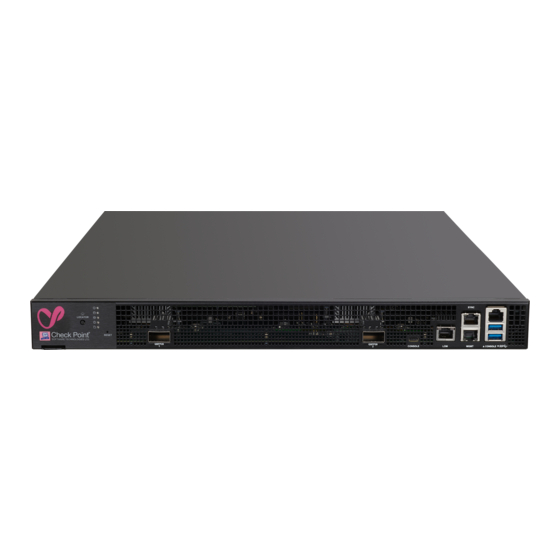

    TE2000XN Appliances Hardware TE2000XN Appliances Hardware Front Panel Item Component Description Service tag A slide out card that identifies the appliance and shows its serial number and MAC address. Locator button Turns the location beacon LED on and off in the appliance. System LEDs See the "Front Panel System LEDs"...
  • Page 31 TE2000XN Appliances Hardware Item Component Description QSFP28 port 1 10/25/40/100 GbE QSFP28 port assigned eth1 in the OS. QSFP28 port 2 10/25/40/100 GbE QSFP28 port assigned eth2 in the OS. Link speed LED On (Blue) - 10/25/40 Gbit/s data rate is selected On (Green) - 100 Gbit/s data rate is selected Port activity LED Off - No activity...

  • Page 32: Front Panel System Leds

    TE2000XN Appliances Hardware Front Panel System LEDs Item Icon Component Description System power Off - System power off On (Green) - System power on Storage device Off - No storage device activity activity On (Amber) - Read/write activity Power supply Off - No power/no status status Amber - Power supply fault detected...

  • Page 33: Rear Panel

    TE2000XN Appliances Hardware Rear Panel Item Component Description LED indicator Off - No power cord is connected to any of the PSUs in the system for each power Green - System on supply unit Blinking green - Power cords are connected to all PSUs, but system is off Amber - No power cord is connected to the PSU, but other PSUs in the system have a power cord connected...
  • Page 34 TE2000XN Appliances Hardware Item Component Description Location LED Off - Location beacon is turned off Blinking blue - Location beacon is turned on through the Gaia Portal Gaia Clish Solid blue - Location beacon is turned on through the Locator button Note - Turn off the Location LED the same way you turned it on.

  • Page 35: Installing The Power Cable Restraint

    TE2000XN Appliances Hardware Installing the Power Cable Restraint You can use the power cable restraint to prevent accidental removal of the power cable. Item Description Restraint anchor Cable loop Restraint strip tab Restraint strip Item Description Restraint strip slot Power supply inlet To install the power cable restraint: 1.

  • Page 36: Lights Out Management

    9. Make sure the cable loop is secured and the power cable cannot be removed. Lights Out Management The Check Point Lights Out Management (LOM) card lets you use a dedicated management channel to remotely control Check Point appliances. Lights Out Management can also work when the appliance is turned off or not responding.

  • Page 37: Dual Redundant Bios

    To recover from a BIOS failure, see sk108517 or contact Check Point Support . The appliance is fully functional until the BIOS recovery is completed. Note that it can take a few minutes for it to boot in BIOS recovery mode.

  • Page 38: Psu Configuration And Monitoring

    TE2000XN Appliances Hardware PSU Configuration and Monitoring The supported PSU configurations for the appliance's PSU types: PSU Type Number of PSUs AC PSU 2 AC PSUs DC PSU 2 DC PSUs Important - All PSUs on an appliance must be of the same type, either all AC or all DC. When a PSU is functioning correctly: the PSU LED is green, the Alert LED is not blinking due to a PSU issue (might still be blinking due to other errors), and there is no SNMP alarm.

  • Page 39: Replacing And Upgrading Components

    For more information about installing these parts and components, see the appliance home page. Unless directed to do so by Check Point technical support, you are prohibited by warranty and support agreements from replacing any parts. Storage Device TE2000XN appliances are shipped with one internal storage device, and do not support a RAID configuration.

  • Page 40: Restoring Factory Defaults

    Restoring Factory Defaults Restoring Factory Defaults If necessary, restore the appliance to its factory default settings. Important - If you restore factory defaults, note that all information on the appliance is deleted. Restoring from the Gaia Portal Use the Gaia Portal to restore the appliance to the factory default settings.

  • Page 41: Restoring From Gaia Clish

    Restoring Factory Defaults 8. When the message "Press any key to see the boot menu" is shown, you have approximately four seconds to hit any key to activate the Boot menu. 9. From the Boot menu, select the relevant Reset to factory defaults image.

  • Page 42: Registration And Support

    For additional technical information about Check Point products, consult the Check Point Support Center Where To From Here? You have the basics to get started. The next step is to get more advanced knowledge of your Check Point software. Sandblast TE2000XN-28VM/56VM Appliances Getting Started Guide   |   42...
