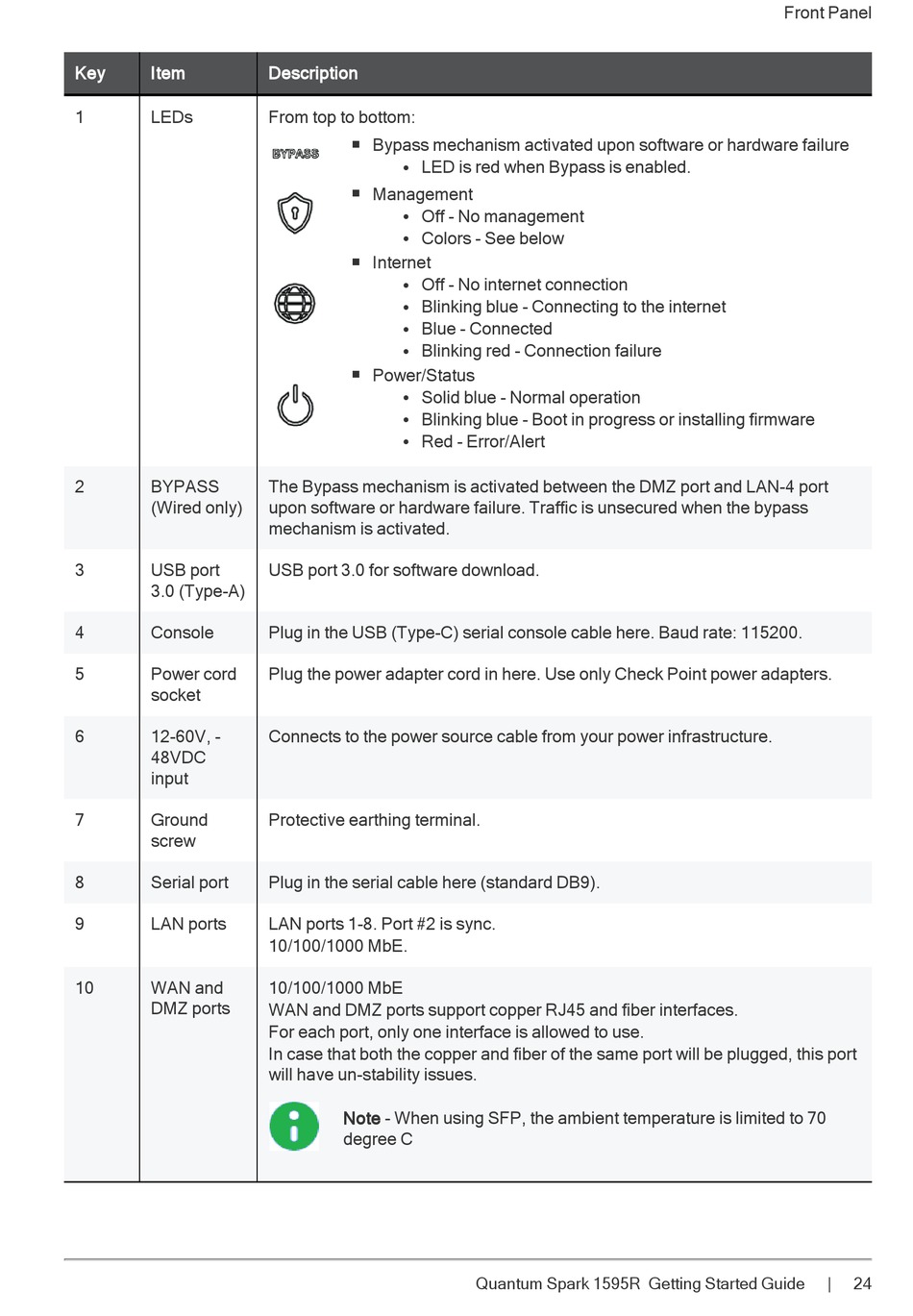

Key Item
1 LEDs
2 BYPASS
(Wired only)
3 USB port
3.0 (Type-A)
4 Console
5 Power cord
socket
6 12-60V, -
48VDC
input
7 Ground
screw
8 Serial port
9 LAN ports
10 WAN and
DMZ ports
Description
From top to bottom:
Bypass mechanism activated upon software or hardware failure
n
LED is red when Bypass is enabled.
l
Management
n
Off - No management
l
Colors - See below
l
Internet
n
Off - No internet connection
l
Blinking blue - Connecting to the internet
l
Blue - Connected
l
Blinking red - Connection failure
l
Power/Status
n
Solid blue - Normal operation
l
Blinking blue - Boot in progress or installing firmware
l
Red - Error/Alert
l
The Bypass mechanism is activated between the DMZ port and LAN-4 port
upon software or hardware failure. Traffic is unsecured when the bypass
mechanism is activated.
USB port 3.0 for software download.
Plug in the USB (Type-C) serial console cable here. Baud rate: 115200.
Plug the power adapter cord in here. Use only Check Point power adapters.
Connects to the power source cable from your power infrastructure.
Protective earthing terminal.
Plug in the serial cable here (standard DB9).
LAN ports 1-8. Port #2 is sync.
10/100/1000 MbE.
10/100/1000 MbE
WAN and DMZ ports support copper RJ45 and fiber interfaces.
For each port, only one interface is allowed to use.
In case that both the copper and fiber of the same port will be plugged, this port
will have un-stability issues.
Note - When using SFP, the ambient temperature is limited to 70
degree C
