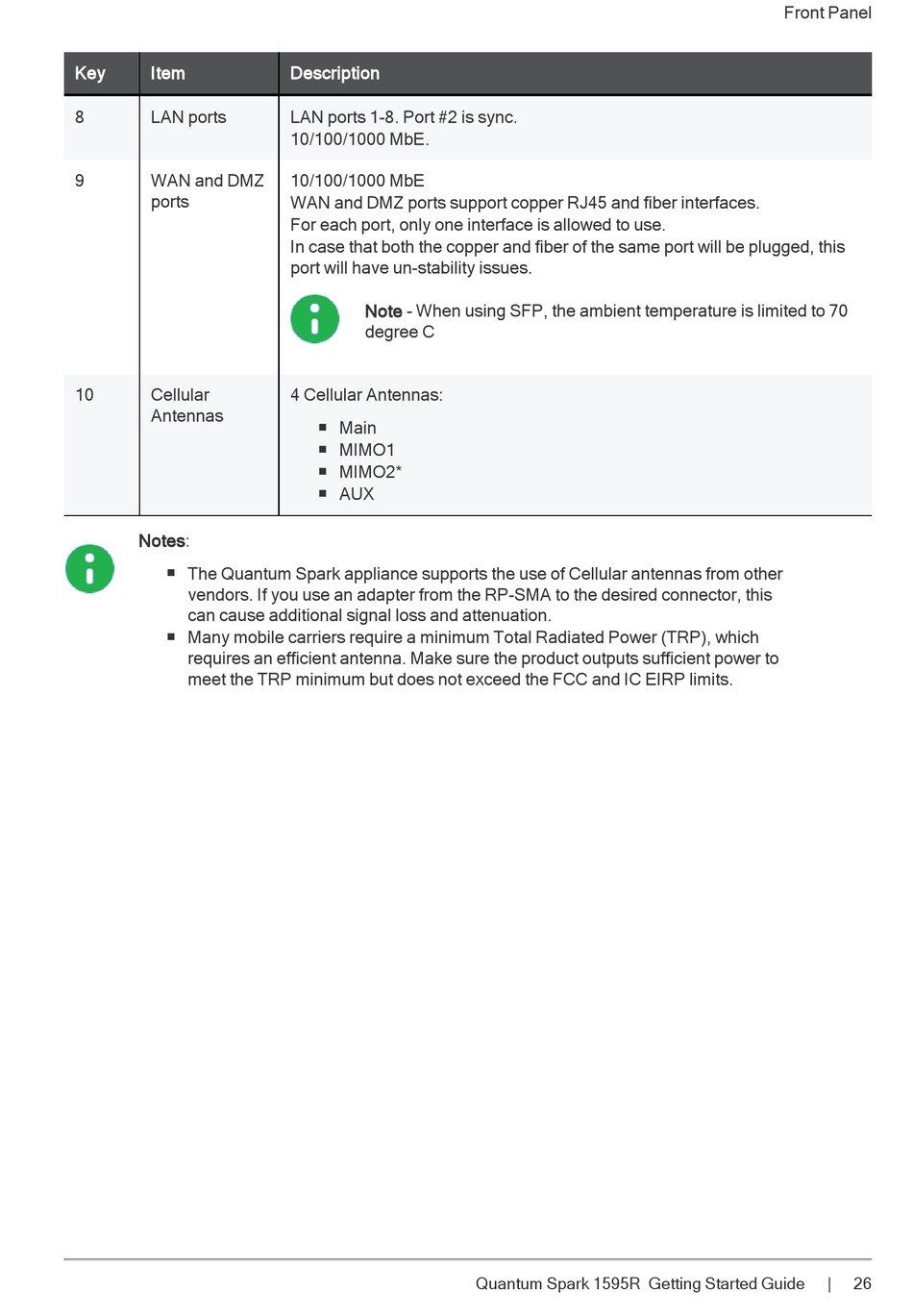

Key Item
8 LAN ports
9 WAN and DMZ
ports
10 Cellular
Antennas
Notes:
The Quantum Spark appliance supports the use of Cellular antennas from other
n
vendors. If you use an adapter from the RP-SMA to the desired connector, this
can cause additional signal loss and attenuation.
n Many mobile carriers require a minimum Total Radiated Power (TRP), which
requires an efficient antenna. Make sure the product outputs sufficient power to
meet the TRP minimum but does not exceed the FCC and IC EIRP limits.
Description
LAN ports 1-8. Port #2 is sync.
10/100/1000 MbE.
10/100/1000 MbE
WAN and DMZ ports support copper RJ45 and fiber interfaces.
For each port, only one interface is allowed to use.
In case that both the copper and fiber of the same port will be plugged, this
port will have un-stability issues.
Note - When using SFP, the ambient temperature is limited to 70
degree C
4 Cellular Antennas:
Main
n
MIMO1
n
MIMO2*
n
n AUX
