- Page 1 07 May 2024 QUANTUM SPARK 1900 / 2000 APPLIANCE Getting Started Guide...
- Page 2 Check Point. While every precaution has been taken in the preparation of this book, Check Point assumes no responsibility for errors or omissions.
- Page 3 For third party independent certification of Check Point products, see the Check Point Certifications page. Check Point Quantum Spark 1900 / 2000 Appliance Getting Started Guide For more about 1900 / 2000 appliances, see the home page. Latest Version of this Document in English...
-
Page 4: Table Of Contents
Appliance Registration Security Management Server Authentication Security Management Server Connection Software Blade Activation Summary Zero Touch Cloud Service USB Drive Appliance Diagrams and Specifications Front Panel 1900 / 2000 Appliance Front Panel Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 4... - Page 5 Table of Contents Management LED Network LEDs Back Panel Health and Safety Information Information sur la Santé et la Sécurité Support Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 5...
-
Page 6: Introduction
Check Point also delivers worldwide technical services including educational, professional, and support services through a network of Authorized Training Centers, Certified Support Partners, and Check Point technical support personnel to ensure that you get the most out of your security investment. -
Page 7: Quantum Spark 1900 / 2000 Appliance

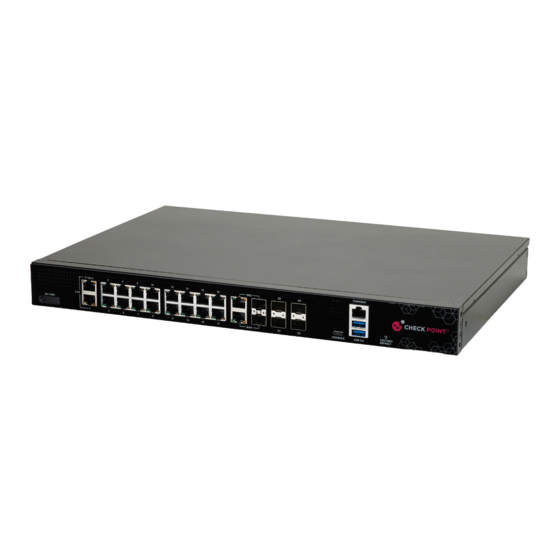

Quantum Spark 1900 / 2000 Appliance The Quantum Spark 1900 / 2000 Security Appliances, part of the new 1500 / 1600 / 1800 Appliance family, deliver enterprise-grade security and run the R81 code base in an all-in-one security solution to protect Medium Business employees, network and data from cyber-theft. -
Page 8: Shipping Carton Contents
Thread these ties directly into the back panel of the appliance. Rack Mount kit Brackets + screws, side ears. Guides Quantum Spark 1900 / 2000 Appliance Quick Start Guide . License End user license agreement. Agreement Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 8... -
Page 9: Setting Up The Appliance
Setting up the Appliance Setting up the Appliance 1. Remove the Quantum Spark 1900 / 2000 Appliance from the shipping carton and place it on a tabletop. For other mounting options, see below. 2. Optional - Remove the transparent protective sticker from the front panel of the appliance. -
Page 10: Connecting The Cables
Connecting the Cables 1. Connect the power cord. Note - Quantum Spark 1900 / 2000 appliances have 2 power cords for redundancy. You do not need to connect both cords. 2. When the appliance is turned on, the Power LED on the front panel lights up in red for a short period. -
Page 11: First Time Deployment Options
First Time Deployment Options There are different options for first time deployment of your gateways: "Using the First Time Configuration Wizard" on page 12 "Zero Touch Cloud Service" on page 39 "USB Drive" on page 41 Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 11... -
Page 12: Using The First Time Configuration Wizard
Note - In the First Time Configuration Wizard, you may not see all the pages described in this guide. The pages that show in the wizard depend on your appliance model and the options you select. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 12... -
Page 13: Starting The First Time Configuration Wizard
To open the Appliance WebUI, enter one of these addresses in a web browser: http://my.firewall https://192.168.1.1:4434 If a security warning message shows, confirm it and continue. The First Time Configuration Wizard starts. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 13... -
Page 14: Welcome
You can connect to the Zero Touch server to fetch settings automatically from the cloud. To change the language of the WebUI application: Select the language link at the top of the page. Note - Only English is allowed as the input language. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 14... -
Page 15: Zero Touch
LAN IP address is changed, a message appears in the system logs. When you reconnect to the WebUI or click Refresh, the browser opens to show the status of the installation process. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 15... - Page 16 Welcome After the gateway downloads and successfully applies the settings, it does not connect to the Zero Touch server again. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 16...
-
Page 17: Authentication Details
If you select a country and install a valid license, but the wireless region of the device does not match the selected country, a warning message shows and you must edit the country information. When the country and wireless region match, you see the full settings. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 17... - Page 18 Authentication Details Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 18...
-
Page 19: Appliance Date And Time Settings
Primary NTP server - The IP or host name of the primary NTP server. The default server is ntp.checkpoint.com Secondary NTP server - The IP or host name of the secondary NTP server. The default server is ntp2.checkpoint.com Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 19... - Page 20 Appliance Date and Time Settings Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 20...
-
Page 21: Appliance Name
When the gateway performs DNS resolving for a specified object’s name, the domain name is appended to the object name. This lets hosts in the network look up hosts by their internal names. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 21... -
Page 22: Security Policy Management
With the appliance WebUI, you can configure the Software Blades you activated and fine tune the security policy. This Getting Started Guide describes how to configure both locally and centrally managed deployments. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 22... -
Page 23: Internet Connection
LTE modem do not support an external USB modem. Only customers with an approved RFE will be supported with the external modem specified in the RFE. Bridge - Connects multiple network segments at the data link layer (Layer 2). Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 23... - Page 24 We recommend that you configure the DNS as the appliance needs to perform DNS resolving for different functions. For example, to connect to Check Point User Center during license activation or when Application Control, Web Filtering, Anti-Virus, or Anti-Spam services are enabled.
-
Page 25: Local Network
The appliance's IP address is automatically excluded from the range. For example, if the appliance IP is 1.1.1.1 the range also starts from 1.1.1.1, but excludes its own IP address. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 25... - Page 26 Important - If you choose to disable the switch on LAN ports (clear the checkbox), make sure your network cable is placed in the LAN1 port. Otherwise, connectivity will be lost when you click Next. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 26...
-
Page 27: Administrator Access
2. In the IP Address Configuration window, select an option: Specific IP address - Enter the IP address or click Get IP from my computer. Specific network - Enter the Network IP address and Subnet mask. 3. Click Apply. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 27... - Page 28 Administrator Access Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 28...
-
Page 29: Appliance Registration
You are notified that you successfully activated the appliance and you are shown the status of your license for each blade. If there is a proxy between your appliance and the Internet, you must configure the proxy details before you can activate your license. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 29... - Page 30 The License activation was not complete notification message is shown. 2. Click OK. The appliance uses a 30-day trial license for all blades. You can register the appliance later in the WebUI from the Device > License page. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 30...
- Page 31 To create a new User Center account (for Locally Managed appliances only): 1. Click Activate License. The Appliance Registration window opens. 2. Select Create a new User Center account and click Next. 3. In the new window, enter: Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 31...
- Page 32 Email. You must enter this a second time to confirm. Company - This is the Account Name to which the appliance is paired. 4. Click Next. The Software Blades Activation page opens. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 32...
-
Page 33: Security Management Server Authentication
(for example, when in a lab setting). Configure one-time password later - Set the one-time password at a different time using the WebUI application. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 33... - Page 34 Security Management Server Authentication Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 34...
-
Page 35: Security Management Server Connection
Send logs to - Enter the IP address of a log server. Send logs according to policy - The logs are sent according to the log server definitions that are defined in the policy. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 35... - Page 36 Security Management Server Connection Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 36...
-
Page 37: Software Blade Activation
Software Blade Activation Software Blade Activation Select the Software Blades to activate on this appliance. QoS (bandwidth control) can only be activated from the WebUI after completing the First Time Configuration Wizard. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 37... -
Page 38: Summary
Click Finish to complete the First Time Configuration Wizard. The WebUI opens on the Home > System page. To back up the system configuration in the WebUI: Go to Device > System Operations > Backup. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 38... -
Page 39: Zero Touch Cloud Service
Page not found - The appliance local IP address may have been changed by the cloud settings installation. Try http://my.firewall or consult your administrator for the new local IP address. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 39... - Page 40 Zero Touch Cloud Service After the gateway downloads and successfully applies the settings, it does not connect to the Zero Touch server again. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 40...
-
Page 41: Usb Drive
An appliance that already has an existing configuration. The appliance starts, automatically mounts the USB drive, and searches the root directory for a configuration file. Note - The USB drive must be formatted in FAT32. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 41... -
Page 42: Appliance Diagrams And Specifications
Appliance Diagrams and Specifications Appliance Diagrams and Specifications This section describes the different features in the front and back panels of these appliances: 1900 / 2000 Appliance Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 42... -
Page 43: Front Panel
Boot in progress or installing firmware - Blinking blue Error/Alert - Red Console There are two console ports for the serial console cable: USB Type- C and RJ45. USB Type-C has priority when both are connected. Baud rate: 115200. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 43... - Page 44 Press and hold the button 12 seconds to restore the appliance to its Default factory default. All user parameters previously configured are removed. Service tag Shows the regulated module, serial number, and the MAC address. Side For rack mount. brackets Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 44...
-
Page 45: Management Led
Gateway failed to connect to the SMP and will exit from the retry Solid red script. Wait times before retry: Failure Waiting Time 2 minutes 4 minutes 8 minutes 16 minutes Subsequent Retries every 16 minutes until Cloud Services are successfully activated. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 45... -
Page 46: Network Leds
This also applies to the DMZ port. Speed Link/Act LED1 RJ45 and 1G SFP LED2 (Green) (Amber) No link 1G link 1G Act Blink 100M link 100M Act Blink 10M link 10M Act Blink Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 46... - Page 47 100M Act Blink Blink 10M link 10M Act Blink RJ45 and SFP 10GbE port Link/Act Speed 10GbE RJ45 LED1 (Bi-color) LED2 (Bi-color) Green Amber Green Amber 10G link 10G Act Blink Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 47...
-
Page 48: Back Panel
Thread cable tie through these holes. Power on/off 0 - Off switch 1 - On Fans Cooling function. Ground screw Protective earthing. For more information, refer to the "Health and Safety Information" on page 49 Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 48... -
Page 49: Health And Safety Information
The appliance contains an embedded power supply AC-DC. The 1900 / 2000appliance contains a dual power supply. To prevent damage to any system, it is important to handle all parts with care. Caution, Shock Hazard - Disconnect all power sources. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 49... - Page 50 3.5mm diameter; star washers or spring washers can be used. Warning - After power is off and disconnected from the equipment, then disconnect the frame of the equipment to earth. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 50...
- Page 51 Warning - Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 51...
- Page 52 FCC CFR Title 47 Part 15 Subpart B:2021, Class B VCCI-CISPR 32:2016, Class B EN 62368-1:2014+A11:2017. BS EN 62368-1:2014+A11:2017 Safety IEC62368-1:2018 UL 62368-1 ROHS10, REACH Environmental Date and Place of Issue: Tel Aviv, Israel September 2023 Testing labs Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 52...
- Page 53 Kou Laboratories Address: No 9 Harrison Road, Harrison Industrial Building, #05-01 Issued By: Prodigy Technology Consultant Co., Ltd. (PTC) Address: No.12, Gong 7th Road, Linkou Dist., 24450, New Taipei City, Taiwan, R.O.C. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 53...
- Page 54 This is a Class B product based on the standard of the Voluntary Control Council for Interference (VCCI). If this equipment is used in a domestic environment, radio interference may occur, in which case the user may be required to take corrective actions. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 54...
- Page 55 For more information about where you can drop off your waste equipment for recycling, please contact your local city office or your household waste disposal service. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 55...
-
Page 56: Information Sur La Santé Et La Sécurité
Veillez à connecter le cordon d'alimentation à une prise de courant reliée à la terre autorisé par Check Point. N'ouvrez jamais l'équipement. Pour des raisons de sécurité, les équipements ne doivent être ouverts que par un homme de métier qualifié. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 56... - Page 57 élevée pouvant entraîner une explosion ou une fuite de liquide ou de gaz inflammable. 4. Batterie soumise à une pression d'air extrêmement faible pouvant entraîner une explosion ou une fuite de liquide ou de gaz inflammable. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 57...
- Page 58 Numéro de modèle: Options de produit: 1900 / 2000 Appliance Wired Date de demande initiale: Septembre 2023 Déclare sous son entière responsabilité que les produits sont conformes aux normes produit suivantes: Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 58...
- Page 59 No 9 Harrison Road, Harrison Industrial Building, #05-01 Délivré Prodigy Technology Consultant Co., Ltd. (PTC) par: Adresse: No.12, Gong 7th Road, Linkou Dist., 24450, New Taipei City, Taiwan, R.O.C. Directive de l'Union européenne relative à la compatibilité électromagnétique Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 59...
- Page 60 Cet émetteur ne doit pas être colocalisé ou fonctionner en conjonction avec une autre antenne ou un autre émetteur. Déclaration de conformité du département Canadien Cet appareil est conforme aux normes NMB003 d'Industrie Canada. Déclaration de conformité de classe B pour le Japon Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 60...
- Page 61 Pour obtenir plus d'informations sur les lieux où déposer vos équipements mis au rebut, veuillez contacter votre municipalité ou le service de gestion des déchets. Quantum Spark 1900 / 2000 Appliance Getting Started Guide | 61...
-
Page 62: Support
Support Support For technical assistance, contact Check Point 24 hours a day, seven days a week at: +1 972-444-6600 (Americas) +972 3-611-5100 (International) When you contact support, you must provide your MAC address. Check Point Support Center For more technical information, go to:...
