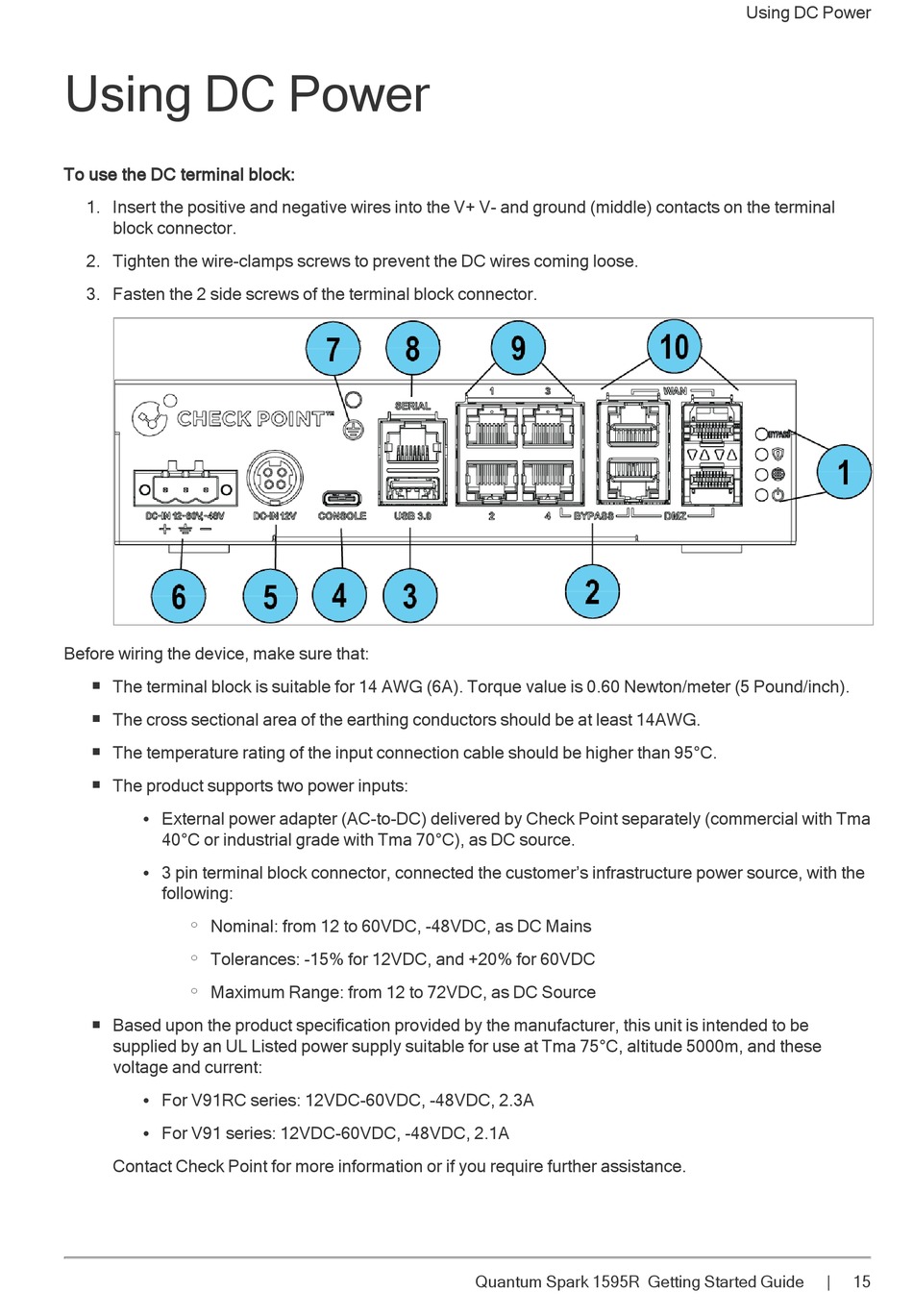

Using DC Power

To use the DC terminal block:
1. Insert the positive and negative wires into the V+ V- and ground (middle) contacts on the terminal
block connector.
2. Tighten the wire-clamps screws to prevent the DC wires coming loose.
3. Fasten the 2 side screws of the terminal block connector.
Before wiring the device, make sure that:
The terminal block is suitable for 14 AWG (6A). Torque value is 0.60 Newton/meter (5 Pound/inch).
n
The cross sectional area of the earthing conductors should be at least 14AWG.
n
n The temperature rating of the input connection cable should be higher than 95°C.
The product supports two power inputs:
n
External power adapter (AC-to-DC) delivered by Check Point separately (commercial with Tma
l
40°C or industrial grade with Tma 70°C), as DC source.
3 pin terminal block connector, connected the customer's infrastructure power source, with the
l
following:
Nominal: from 12 to 60VDC, -48VDC, as DC Mains
o
o Tolerances: -15% for 12VDC, and +20% for 60VDC
Maximum Range: from 12 to 72VDC, as DC Source
o
n Based upon the product specification provided by the manufacturer, this unit is intended to be
supplied by an UL Listed power supply suitable for use at Tma 75°C, altitude 5000m, and these
voltage and current:
For V91RC series: 12VDC-60VDC, -48VDC, 2.3A
l
For V91 series: 12VDC-60VDC, -48VDC, 2.1A
l
Contact Check Point for more information or if you require further assistance.
