10 December 2022

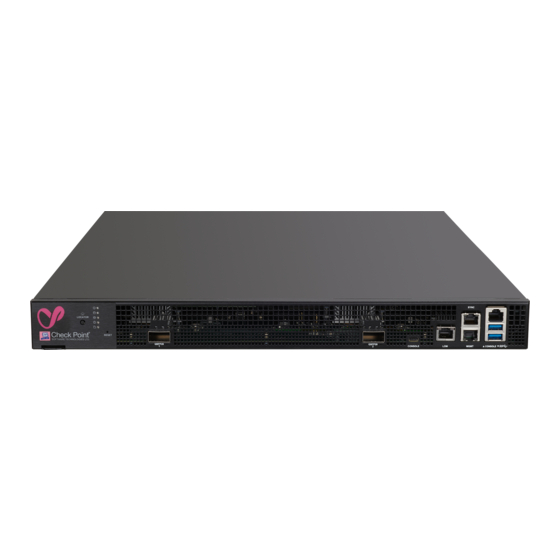

INSTALLING AND
REMOVING LOM CARDS
IN CHECK POINT
APPLIANCES
16000, 26000, 28000, TE2000XN

Advertisement

loading
Need help?

Need help?

Do you have a question about the 16000 and is the answer not in the manual?

Questions and answers

Related Manuals for Check Point 16000

Summary of Contents for Check Point 16000

  • Page 1 10 December 2022 INSTALLING AND REMOVING LOM CARDS IN CHECK POINT APPLIANCES 16000, 26000, 28000, TE2000XN...
  • Page 2 Check Point. While every precaution has been taken in the preparation of this book, Check Point assumes no responsibility for errors or omissions. This publication and features described herein are subject to change without notice.
  • Page 3 Updated for TE2000XN appliances 23 July 2020 Updated for 28600HS appliances 30 April 2020 Updated for 16200, 16600HS, and 28000 appliances 02 October 2019 First release of this document Installing and Removing LOM Cards in Check Point Appliances 16000, 26000, 28000, TE2000XN      |      3...

  • Page 4: Table Of Contents

    Removing the LOM Card in 16000/16200/26000/28000 Appliances Installing the LOM Card in 16000/16200/26000/28000 Appliances Removing the LOM Card in 16600HS/28600HS/TE2000XN Appliances Installing the LOM Card in 16600HS/28600HS/TE2000XN Appliances Initial Login to the LOM Card WebUI Installing and Removing LOM Cards in Check Point Appliances 16000, 26000, 28000, TE2000XN      |      4...

  • Page 5: 16000, 26000, 28000, And Te2000Xn Appliances Replacing A Lom Card

    TE2000XN This document applies to these Check Point appliances: 16000/16200/26000/28000 appliances - Lights Out Management (LOM) Card is optional by default in Base models of these appliances and included in Plus and Turbo models. 16600HS/28600HS/TE2000XN appliances - Lights Out Management (LOM) Card is included by default in these appliances.

  • Page 6: Preparing The Appliance

    2. Pull the top cover back in the direction of the arrows. 3. Pull the cover up to remove it fully. Legend Item Description Appliance cover Appliance cover screws ESD grounding point Installing and Removing LOM Cards in Check Point Appliances 16000, 26000, 28000, TE2000XN      |      6...
  • Page 7 16000, 26000, 28000, and TE2000XN Appliances Replacing a LOM Card 16000/16200/26000/28000 The 28000 appliance is shown above. Removal of the top cover is the same in the 16000/16200/26000 appliances. 16600HS/28600HS/TE2000XN Installing and Removing LOM Cards in Check Point Appliances 16000, 26000, 28000, TE2000XN      |      7...

  • Page 8: Finding The Lom Card Socket

    16000, 26000, 28000, and TE2000XN Appliances Replacing a LOM Card Finding the LOM Card Socket The illustrations show the location of the LOM Card in the appliances. Legend Item Description Front panel LOM Card (in socket) Rear panel 16000/16200/26000/28000 Installing and Removing LOM Cards in Check Point Appliances 16000, 26000, 28000, TE2000XN      |      8...
  • Page 9 16000, 26000, 28000, and TE2000XN Appliances Replacing a LOM Card 16600HS/28600HS/TE2000XN Installing and Removing LOM Cards in Check Point Appliances 16000, 26000, 28000, TE2000XN      |      9...

  • Page 10: Removing The Lom Card In 16000/16200/26000/28000 Appliances

    2. Press the two retaining clips outward. 3. Carefully pull the LOM Card up. 4. Lift the front end of the card up and pull it out of the socket. Installing and Removing LOM Cards in Check Point Appliances 16000, 26000, 28000, TE2000XN      |      10...

  • Page 11: Installing The Lom Card In 16000/16200/26000/28000 Appliances

    2. Press outward on the two white retaining clips. 3. Align the new LOM Card above the socket. 4. Press the new LOM Card into the socket until it clicks into position. 5. Close the appliance. Installing and Removing LOM Cards in Check Point Appliances 16000, 26000, 28000, TE2000XN      |      11...
  • Page 12 1. Connect the power cords to the appliance. The appliance turns on. 2. Connect an Ethernet cable between your computer and the LOM port of the appliance. The LEDs on each port must light up. Installing and Removing LOM Cards in Check Point Appliances 16000, 26000, 28000, TE2000XN      |      12...

  • Page 13: Removing The Lom Card In 16600Hs/28600Hs/Te2000Xn Appliances

    3. Pull the socket locking levers OUT (away from the card edges). 4. Lift the front end of the card up and pull it out of the socket carefully. Installing and Removing LOM Cards in Check Point Appliances 16000, 26000, 28000, TE2000XN      |      13...

  • Page 14: Installing The Lom Card In 16600Hs/28600Hs/Te2000Xn Appliances

    LOM Card. 2. Hold the LOM Card at an angle to align it with the receptacle in the socket. 3. Press down on the LOM Card until it lies flat. Installing and Removing LOM Cards in Check Point Appliances 16000, 26000, 28000, TE2000XN      |      14...
  • Page 15 1. Connect the power cords to the appliance. The appliance turns on. 2. Connect an Ethernet cable between your computer and the LOM port of the appliance. The LEDs on each port must light up. Installing and Removing LOM Cards in Check Point Appliances 16000, 26000, 28000, TE2000XN      |      15...

  • Page 16: Initial Login To The Lom Card Webui

    For appliances with the regular LOM Card, see the Lights Out Management (LOM) Card Administration Guide for 5000, 6000, 7000, 13000, 15000, 16000, 21000, 23000, 26000, 28000 and Smart-1 225/3050/3150 Appliances Installing and Removing LOM Cards in Check Point Appliances 16000, 26000, 28000, TE2000XN      |      16...
