Flavor
1570WLE
with rear DIN
adapter
WiFi-LTE
1570WLE
with bottom
DIN adapter
To mount the appliance using the DIN rail kit:
Attach the DIN rail kit with the 4 M3 screws which came in the box. Depending on the model, the DIN rail
mount holes are located on the back panel or bottom panel or both.

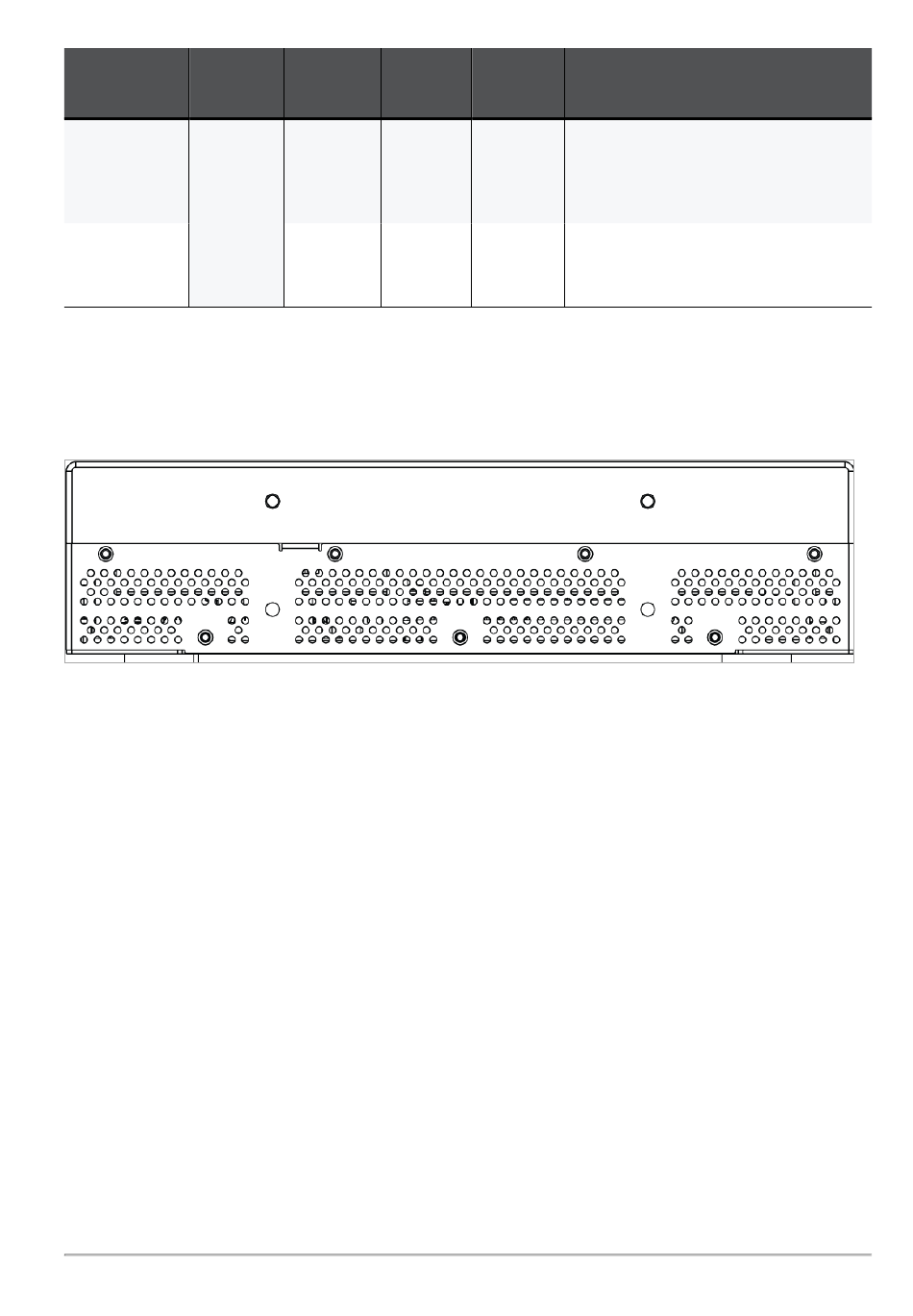

Back panel
Height Width
(mm) (mm)
177 150
195 150
Depth
Notes
(mm)
225 Includes the LTE and WiFi antennas.
For that setup, a middle-part adapter
is required between the DIN adapter
and the 1595R Appliance.
225 Includes the LTE and WiFi antennas.
Quantum Spark 1595R Getting Started Guide | 12
