Pro Tools Tutorial
Sends - Level

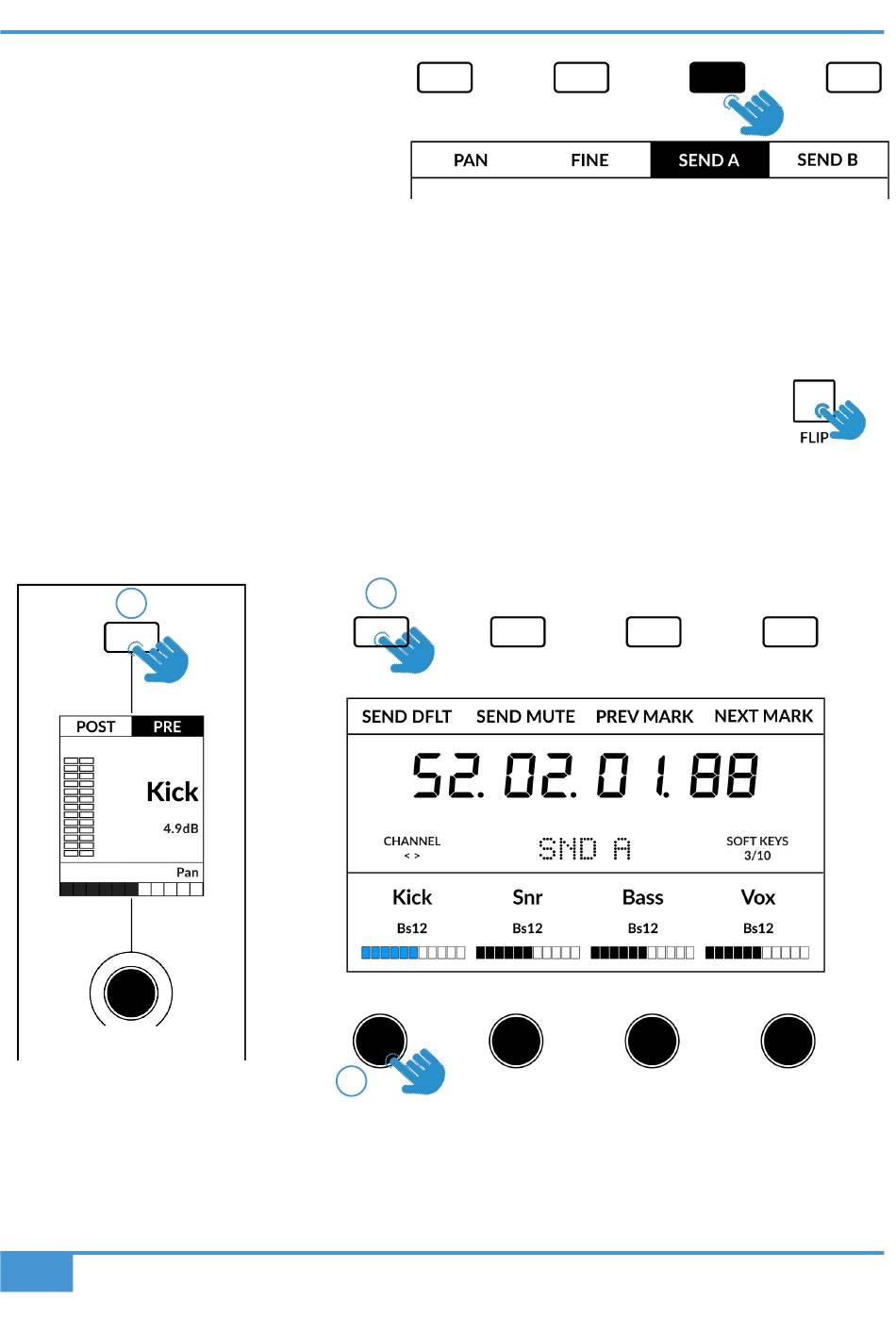

The soft keys labelled SEND A-E (found within Soft Key
Pages 1 and 2) will allow you to control send levels
A-E on the V-Pots. The V-Pot readout bar will display
the Send position on the LCD. Pushing on the V-Pot
will default a send to 0 dB (providing the SEND DLFT
function is active). Sends F-J are unavailable to assign
as they are not made available for control by Pro Tools. To assign Sends to the V-Pots, select the Send slot (A-E) you wish to control
using the appropriate Soft Key. Pressing the Send Slot Soft Key again will toggle the Bus Assignment name to show on-screen
briefly. If the channels in the current channel bank have any Sends assigned to that Send slot, the level will be shown on the V-Pot
readout bar. If no send has been assigned to the channel, then the lower Scribble strip will remain blank. Don't forget you can
press and hold the FINE key to get a finer resolution and numeric readout whilst adjusting send levels.
Flip
Sends can be flipped to the faders using the FLIP key. This is useful for riding Send levels or creating headphone
mixes using faders instead of V-Pots. In FLIP mode, the V-Pots control the Pan of the Send.
Sends - Pre/Post
Disengaging the SEND DFLT key (Soft Key Page 3, 1st Key) will allow you to control send pre/post states. On the channel shown
on the fader strip, you can use the soft key above the small display to do this. On the channels shown across the large display, the
V-Pot push function will control pre/post states.
1
2
3
1 - Disengaging the SEND DFLT key allows send pre/post to be controlled.
2 - Small LCD Soft Key - press to toggle pre/post state for the channel on the fader strip.
3 - Large LCD V-Pots - push the V-Pots beneath the large screen to control pre/post states on these channels.
