Large LCD Layout - Meter Mode

This mode is for controlling your SSL Meter plug-ins. Access this mode by toggling the MODE key to the yellow state.

Overview

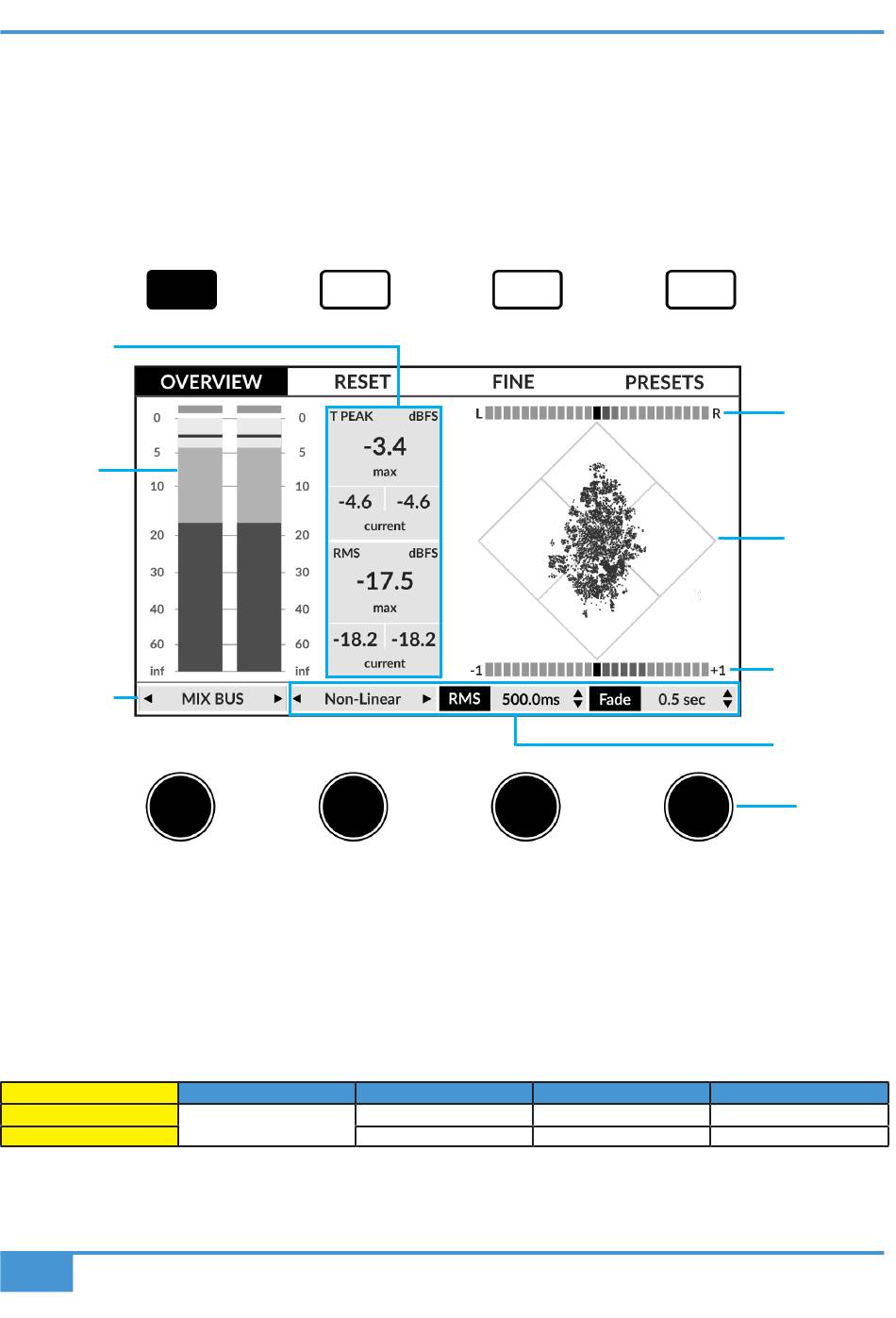

The Overview screen displays all your key Peak & RMS metering, phase and stereo balance information.
Meter Screen
Selector
Text
Readouts
Max and
Current Values
Digital
Meter
Bargraphs
Selected
Meter Plug-in
Instance
Meter Plug-in
Selector
Meter Screen Selector - Press the key to toggle through the 3 different meter screens: Overview, Analogue and RTA.
Reset - Resets all metering, including clip indicators and max values.
Fine Encoder Mode - Puts the encoders into fine resolution mode for precise adjustments.
Presets Menu - Opens a menu where you can load your Meter plug-in presets from by scrolling with the 4th encoder and pushing
to confirm the load.
Page
1
2
128
Reset
Parameter
Control 1
Meter Plug-in Selector
Scroll to select the Meter
plug-in instance
Fine
Encoder Mode
Parameter
Control 2
Parameter Control 1
Digital Meter Type
Peak Hold Time
Presets
Menu
Parameter
Control 3
Parameter Control 2
RMS Integration Time
True Peak Mode On/Off
L-R
Balance
Bar
Lissajous
Phase
Scope
Phase
Correlation
Meter
Meter Plug-in
Parameters
V-Pots
Parameter Control 3
Lissajous Fade Time
-
