CENTRE KEYS
MODE (Button 1)
The MODE key determines the operation of the large screen and
its 4 associated V-Pots. Pressing the MODE key toggle you through
the different options. Holding down the MODE button allows direct
access to each mode via the soft keys at the top of the large LCD.
Each mode is colour coded:
General DAW (white)
The 4 x V-Pots beneath the large display control various parameters
such as pans, sends etc depending on the current V-Pot assignment
mode.
DAW Faders (green) - "FAdr"
The V-Pots control the fader levels across 4 tracks in
the current controller bank. The level is represented
by both a dB text readout and the V-Pot readout bar.
Meter Plug-in (yellow)
The V-Pots and soft keys directly control the SSL
Meter plug-in, via SSL 360°. Because this mode is
the same across all DAWs, please refer to the
Meter control section at the end of this user guide
for more information.
5-8 Key (Button 2)
Assigns the V-Pots to control tracks 5-8 of the
current controller bank.
Soft Key Page Banks (3)
Allows you to move through various pages of parameters
that are assigned to the soft keys.
Bank Keys (Button 4)
The bank keys move the fader selection in multiples of 8,
with the 1st channel of the 8 appearing on both the Main
Fader and the 1st of the channels to appear across the 4
V-Pots unless 5-8 is selected.
360° / LAYER selection Key (Button 5)
A short press of the 360° button opens and closes the SSL 360° application, allowing access to edit settings & assignable keys on
the UF1 & all other SSL 360° powered devices. A long press and hold of the 360° button, in conjunction with a press of the relevant
top-row soft key allows you to switch to a different DAW or Plug-in Mixer Layer.
112
SSL

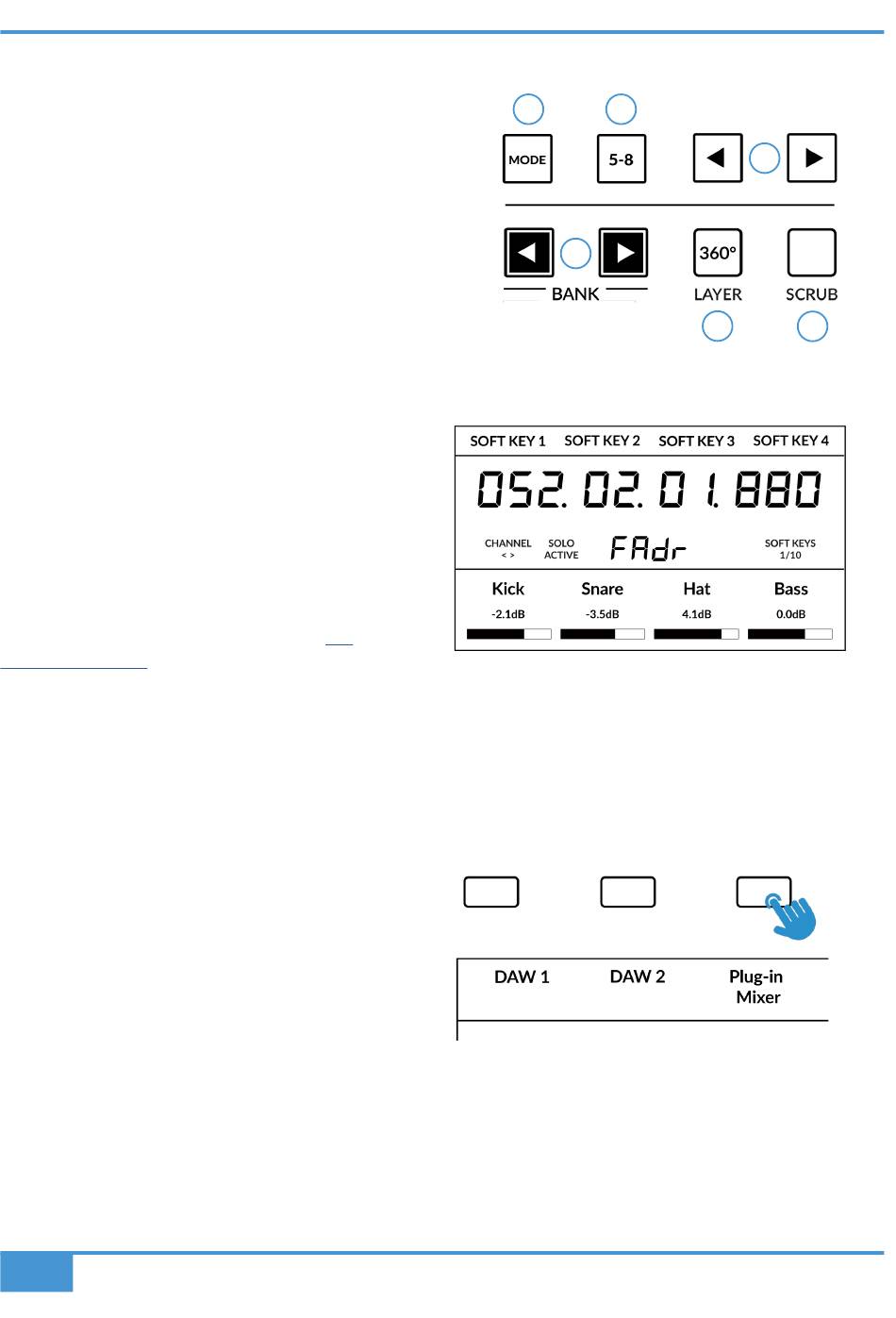

Above shows the DAW Faders "FAdr" mode has been
selected. The V-Pots beneath the large screen control
Press and hold the 360° button and whilst keeping
it held down, you can switch to a different Layer by
1 2
4
DAW fader levels.
pressing the relevant top-row soft key.
3
5
6
