2.1 Hardware Features

• CC3301 Wi-Fi 6 and Bluetooth
adding connectivity
• Two 20-pin stackable connectors (BoosterPack Standard)
• On-board chip dual-band antenna with on-board SMA/U.FL connector for conducted RF testing
• Power from on board dual rail (3.3 V and 1.8 V) LDO using USB or LaunchPad
• 3 level shifters for voltage translation (3.3 V to 1.8 V)
• JTAG header pins for SWD interface with XDS110 or LP-XDS110
• One push-button for reset
• Jumper for current measurement on both power supplies (3.3 V and 1.8 V) with provision to mount 0.1 ohm
(0603) resistors for measurement with voltmeter
• 32 kHz oscillator for lower power evaluation
SWAU130 – MARCH 2023
Submit Document Feedback

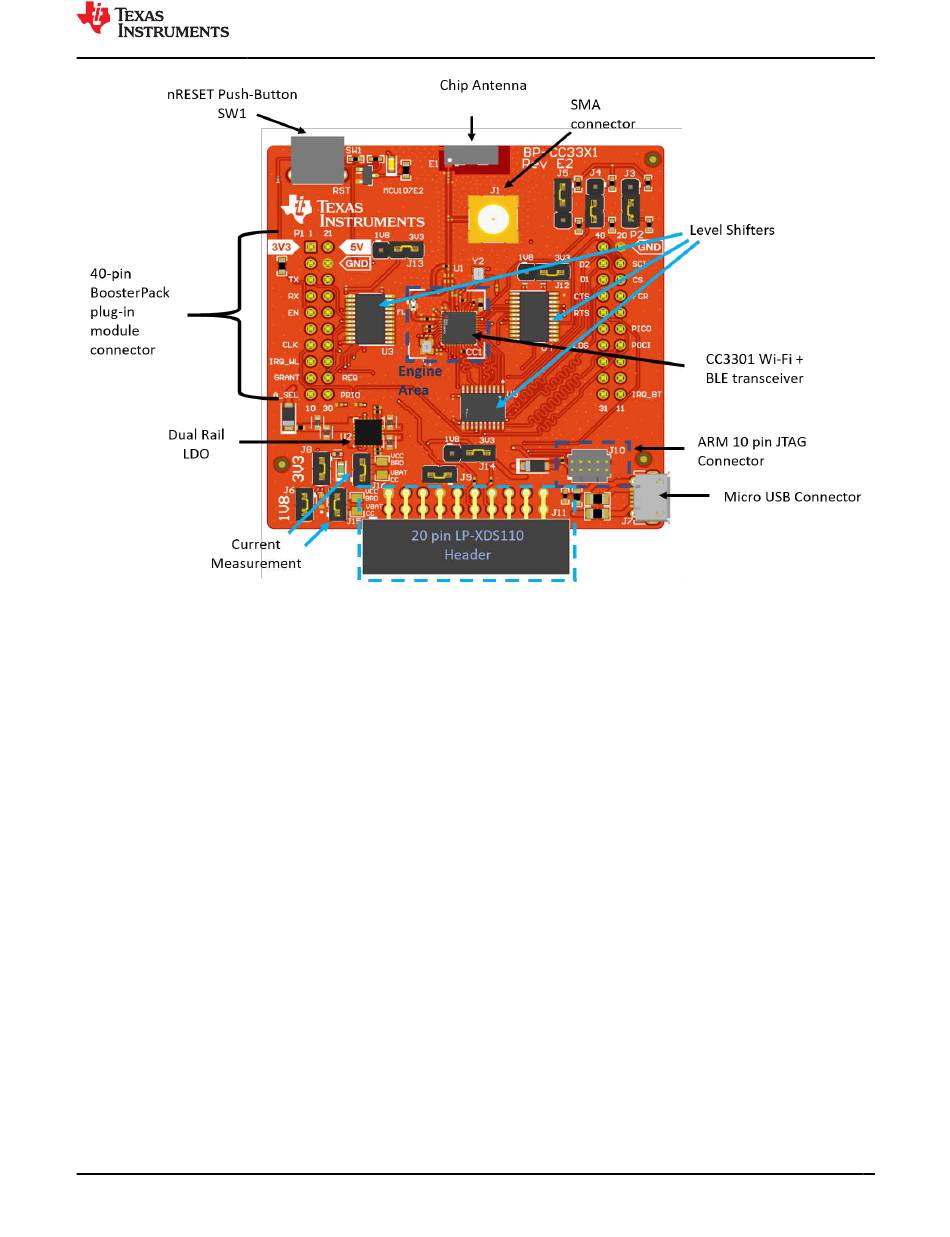

Figure 2-1. BP-CC3301 Overview
