2.1 Block Diagram
Push
Buttons

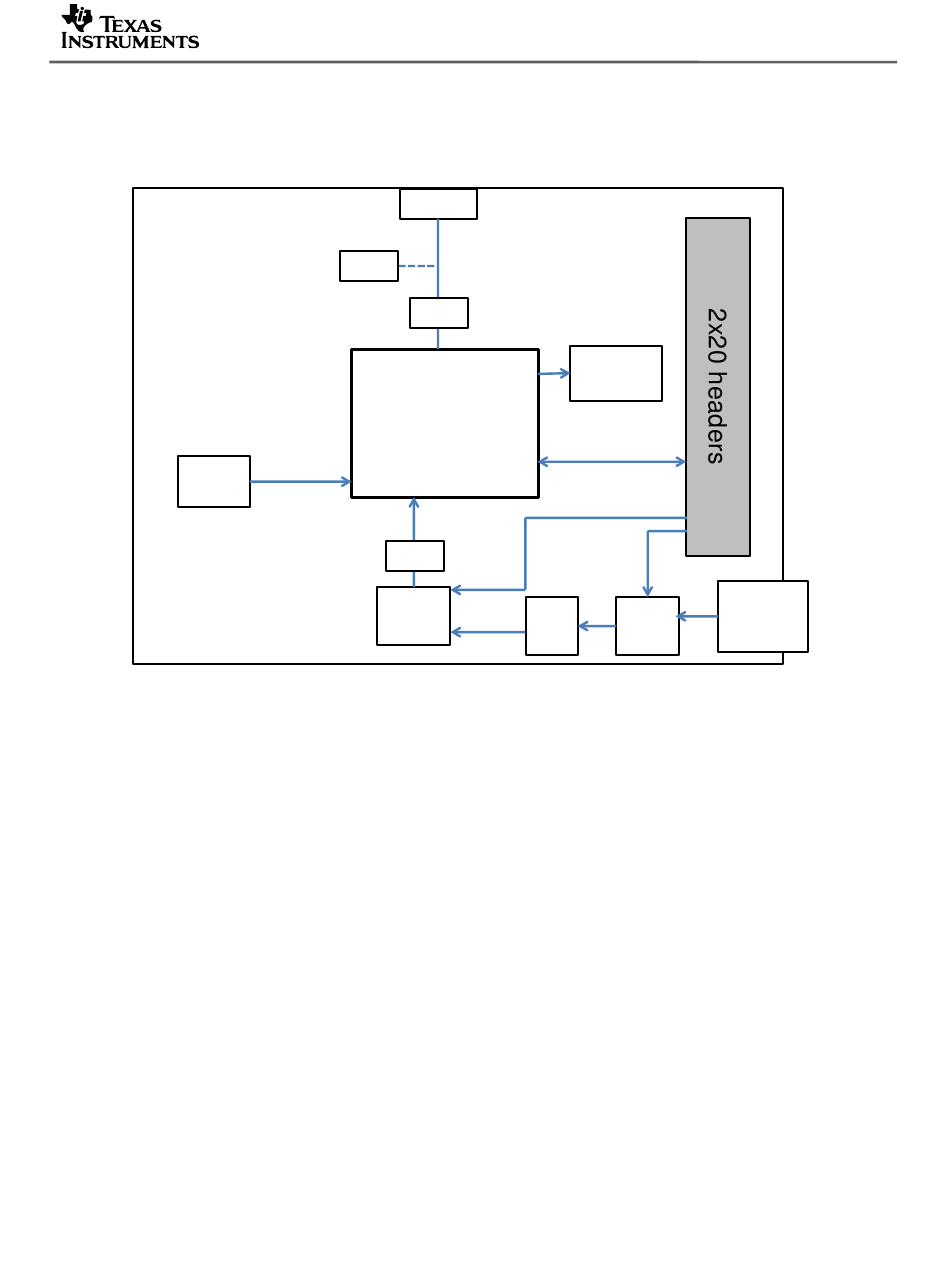

Figure 2 : CC3100MODBOOST Block diagram
2.2 Hardware Features of the evaluation board
• CC3100MOD module with fully integrated solution.
2x20 pin stackable connectors
• On-board chip antenna with option for U.FL based conducted testing.
• Power from on-board LDO using USB OR 3.3V from MCU Launchpad
• Push buttons (3x), LEDs (2x)
• Jumper for current measurement with provision to mount 0.1R resistor for measurement
with voltmeter
• 2 Layer PCB with 6mil spacing and track width.
TI Confidential – Strictly Private
Chip
Antenna
U.FL
Conn
Murata
Conn
CC3100MOD
Current
J6
Meas
J8
Jumper
3.3V
EVM User's Guide
LED
Indicators
SPI/UART/GPIO
Vcc
5V
5V
3.3V
Diode
LDO
Mux
Micro
USB
6
