Evaluation Setups

3.3 Standalone RF Testing

The BP-CC3301 can be used standalone (without a host) to test RF capabilities, using Radio Tool. For more
information on Radio Tool and where to download, refer to
The BP-CC3301 has an on-board SMA connector and component antenna, and a U.FL can be populated on the
board, for conducted RF testing using compatible cables (a rework can be needed). For more information, see
Section 2.5.
™
20 SimpleLink CC3301 Wi-Fi 6 and Bluetooth
in Module (BP-CC3301)

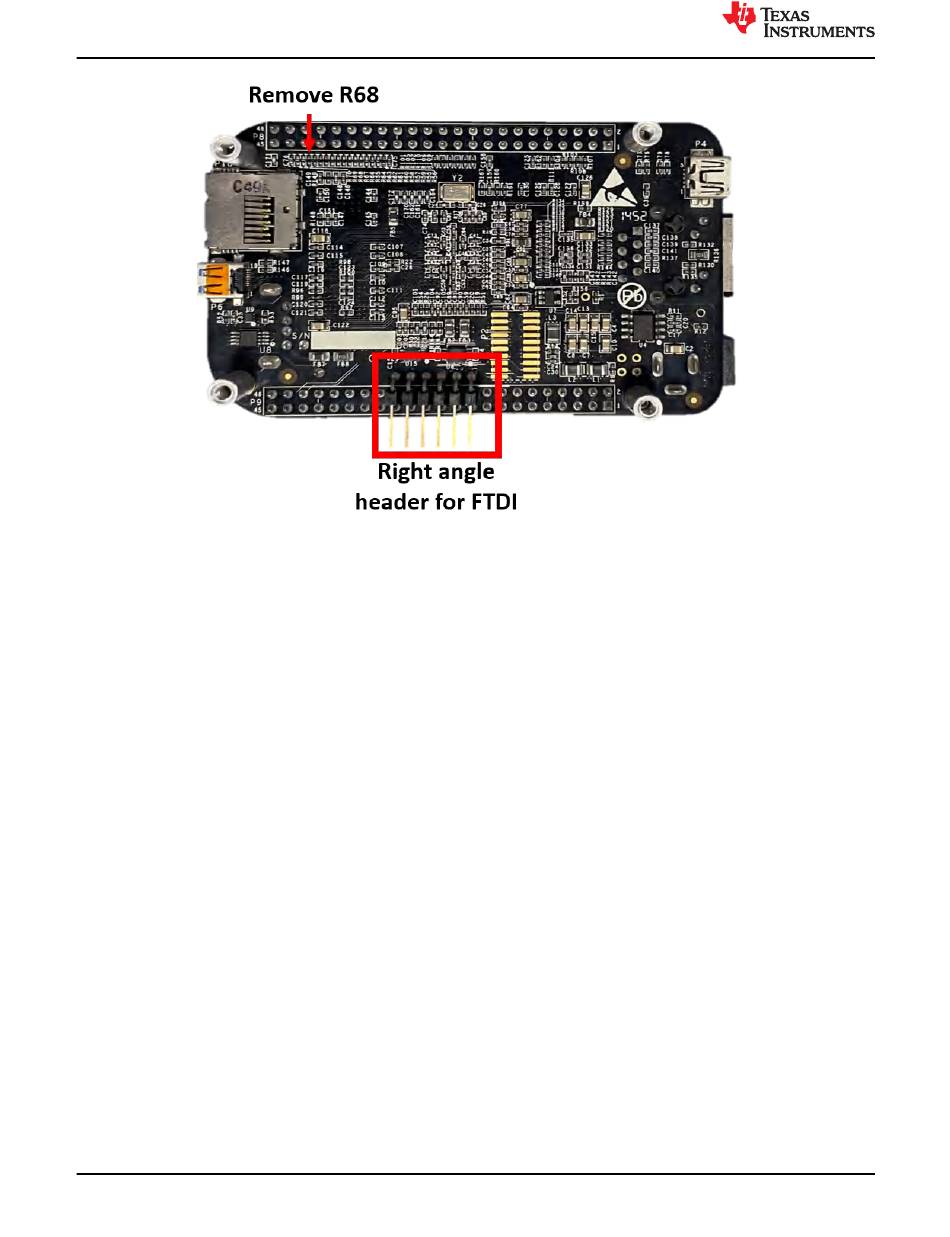

Figure 3-7. Bottom View of Modified BBB

Wi-Fi Toolbox BP-CC3301 Hardware
® ™
Low Energy BoosterPack Plug-
Copyright © 2023 Texas Instruments Incorporated
www.ti.com
Setup.
