Hardware
A rework can be needed before using the connector on J1/J2. This involves swapping the position of the existing
3.9 pF capacitor to lead the transmission line to the desired connection (see
™
16
SimpleLink
CC3301 Wi-Fi 6 and Bluetooth
in Module (BP-CC3301)

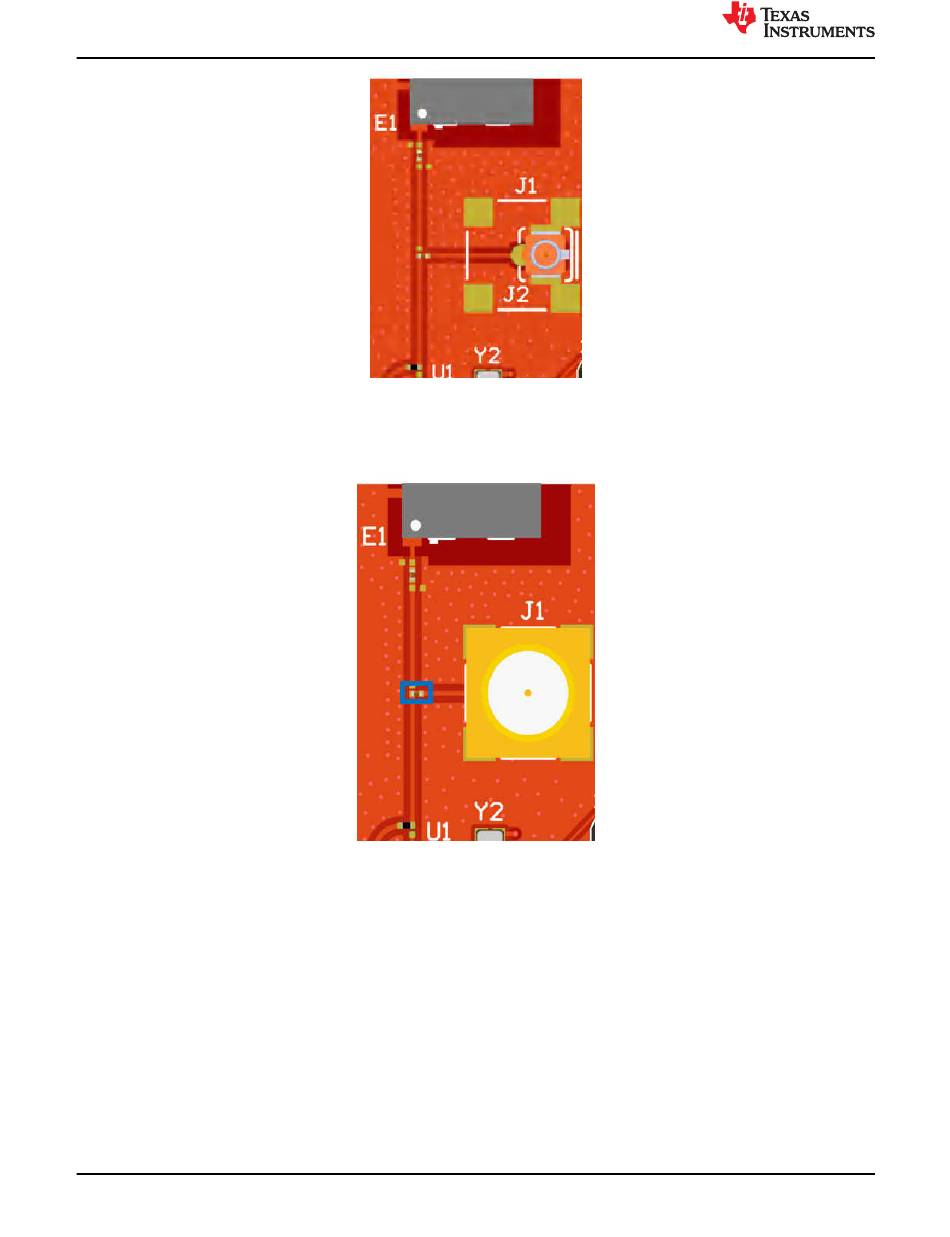

Figure 2-12. U.FL Connector
Figure 2-13. SMA/U.FL option
®
™
Low Energy BoosterPack
Plug-
Copyright © 2023 Texas Instruments Incorporated
Figure
2-13).
SWAU130 – MARCH 2023
Submit Document Feedback
www.ti.com
