www.ti.com
2.1
Block Diagram
2.2
Hardware Features
•
CC3200MOD, SimpleLink Wi-Fi, internet-on-a-chip module solution with integrated MCU40-pin
LaunchPad standard that leverages the BoosterPack ecosystem
•
FTDI-based JTAG emulation with serial port for flash programming
•
Supports both 4-wire JTAG and 2-wire SWD
•
Two buttons and three LEDs for user interaction
•
Virtual COM port UART through USB on PC
•
On-board chip antenna with U.FL for conducted testing
•
On-board accelerometer and temperature sensor for out-of-box demo with option to isolate them from
the inter-integrated circuit (I2C) bus
•
Micro USB connector for power and debug connections
•
Headers for current measurement and external JTAG connection
•
Bus-powered device with no external power required for Wi-Fi
•
Long range transmission with highly optimized antenna (200m typical in open air with a 6dBi antenna
AP)
•
Can be powered externally, with 2xAA or 2xAAA alkaline batteries working down to 2.3V typical (typ)
SWRU397 – December 2014
Submit Documentation Feedback

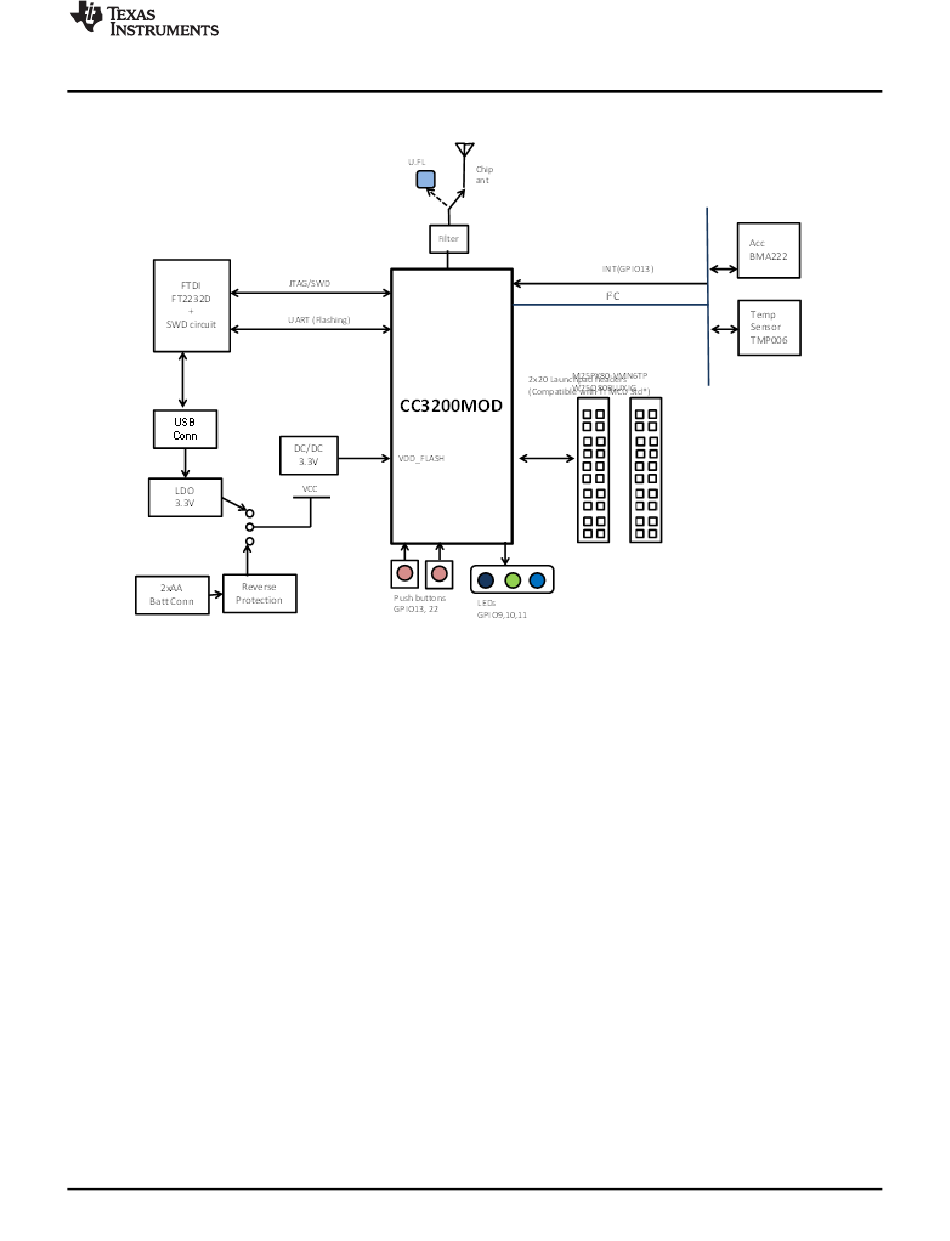

Figure 2. CC3200MOD LaunchPad Block Diagram
CC3200MOD SimpleLink™ Microcontroller and Wi-Fi® Network Processor
Copyright © 2014, Texas Instruments Incorporated
Hardware Description
Module - LaunchPad Hardware
7
