4.2 Option 2: XDS110 JTAG Debug Probe

For this hardware connection, grab the XDS110 JTAG Debug Pod, 20-pin debug cable, and the TI 20-pin to
ARM Cortex 10-pin converter adapter (can be labeled as "CTI20MALE to ARM20-ETM FEMALE 516980-0001")
from the kit.
Note: If the user is having problems with the computer recognizing the XDS110 DebugProbe, then you can
download and install the XDS110 Support Utilities package currently on release 7.0.100.1 from
Utilities Package.

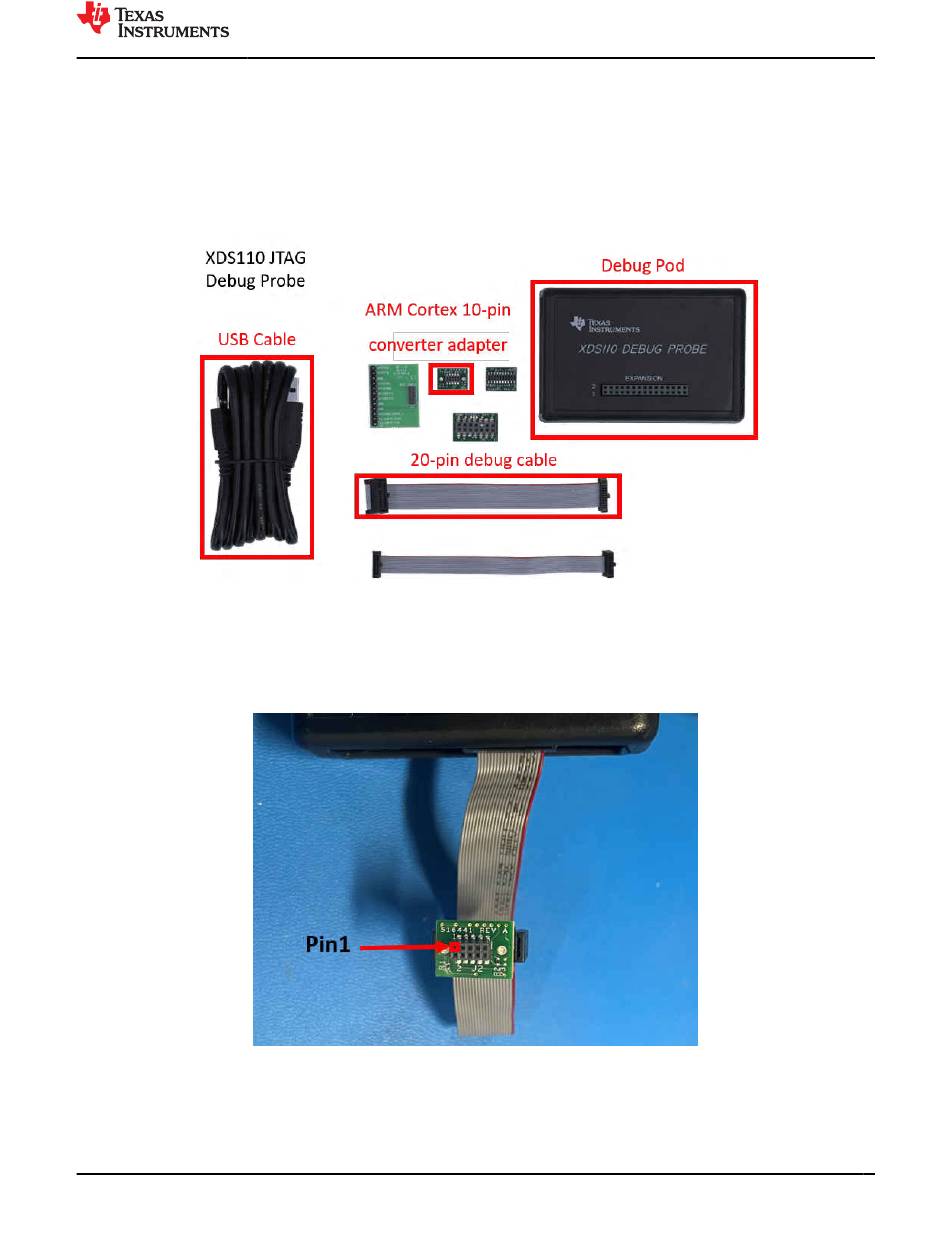

Figure 4-2 above shows contents included when buying the XDS110 kit, and highlights the accessories used for
this hardware configuration. Grab the 20-pin debug cable then attach to the Debug port of the Debug Pod, on
the other side of the cable connect the 10-pin adapter. The end of the cable with the 10-pin adapter must be
connected to the ARM 10pin JTAG Connector (J10), see

Figure 4-3. XDS110 20 pin debug cable with ARM 10 pin Adapter
