2.5 Performing Conducted Testing

As seen in Figure 2-11, the BP-CC3301 has an on-board SMA connector and component antenna. The SMA
connector (J1) provides a way for testing conducted measurements. Alternately, a track pad for a UF.L connector
(J2) is provided on-board to replace the SMA connector and provide a way to test in the lab using a compatible
cable (see Figure 2-12).
SWAU130 – MARCH 2023
Submit Document Feedback

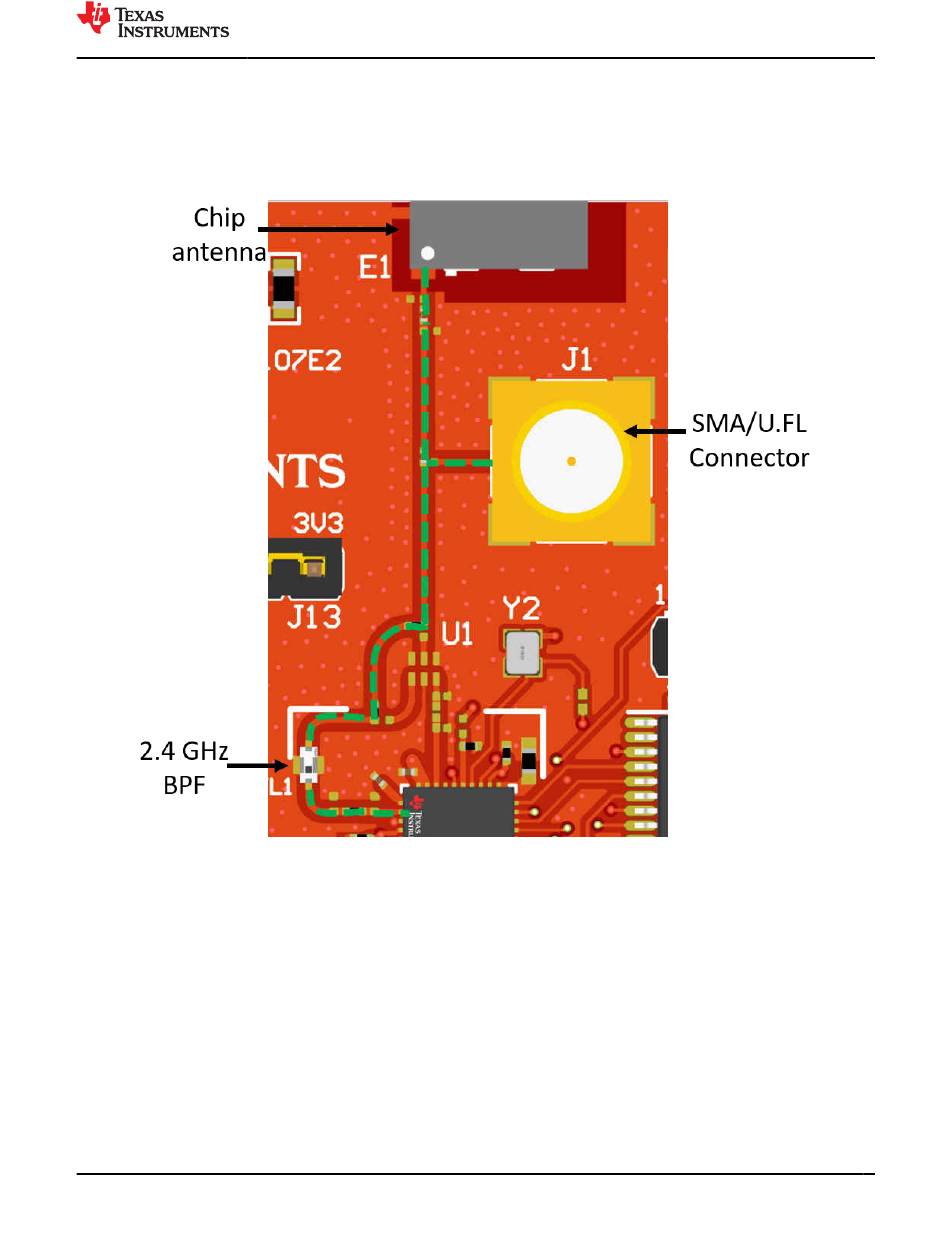

Figure 2-11. RF Path on BP-CC3301

™
