<EX124 Series>

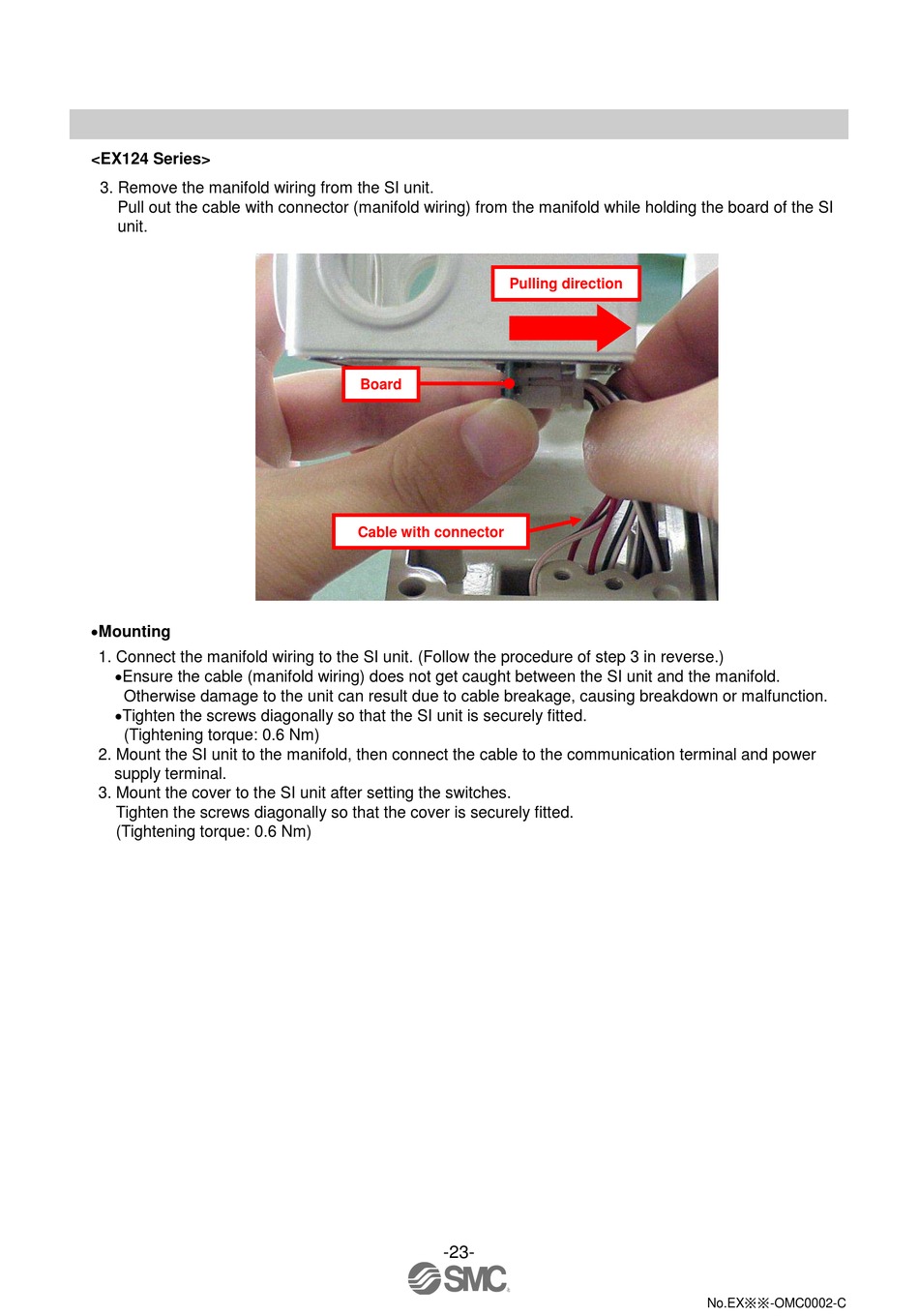

3. Remove the manifold wiring from the SI unit.
Pull out the cable with connector (manifold wiring) from the manifold while holding the board of the SI
unit.
Mounting
1. Connect the manifold wiring to the SI unit. (Follow the procedure of step 3 in reverse.)
Ensure the cable (manifold wiring) does not get caught between the SI unit and the manifold.
Otherwise damage to the unit can result due to cable breakage, causing breakdown or malfunction.
Tighten the screws diagonally so that the SI unit is securely fitted.
(Tightening torque: 0.6 Nm)
2. Mount the SI unit to the manifold, then connect the cable to the communication terminal and power
supply terminal.
3. Mount the cover to the SI unit after setting the switches.
Tighten the screws diagonally so that the cover is securely fitted.
(Tightening torque: 0.6 Nm)
Pulling direction
Board
Cable with connector
