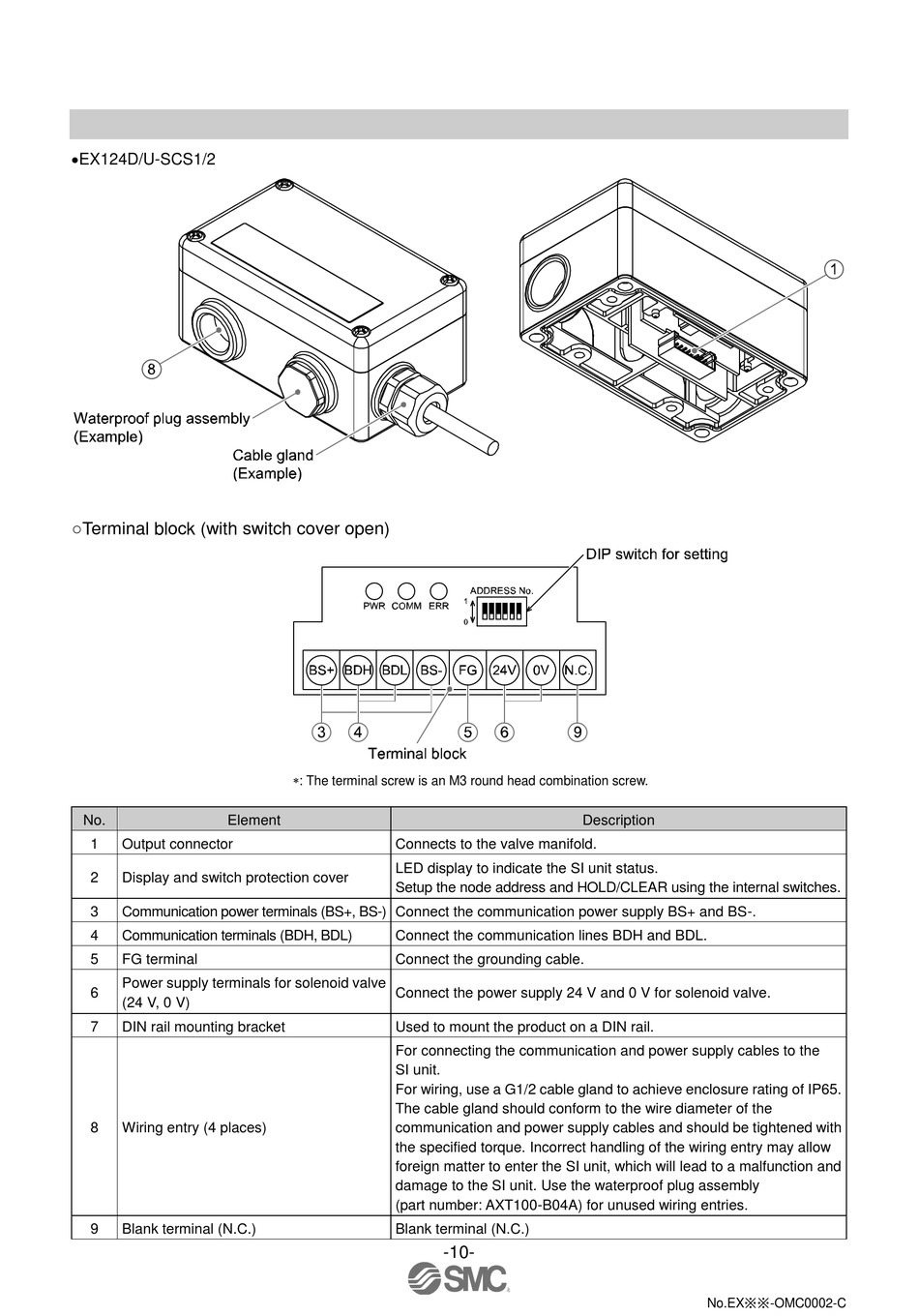

EX124D/U-SCS1/2
○Terminal block (with switch cover open)
No. Element
1 Output connector
2 Display and switch protection cover
3 Communication power terminals (BS+, BS-) Connect the communication power supply BS+ and BS-.
4 Communication terminals (BDH, BDL)
5 FG terminal
Power supply terminals for solenoid valve
6
(24 V, 0 V)
7 DIN rail mounting bracket
8 Wiring entry (4 places)
9 Blank terminal (N.C.)
: The terminal screw is an M3 round head combination screw.
Connects to the valve manifold.
LED display to indicate the SI unit status.
Setup the node address and HOLD/CLEAR using the internal switches.
Connect the communication lines BDH and BDL.
Connect the grounding cable.
Connect the power supply 24 V and 0 V for solenoid valve.
Used to mount the product on a DIN rail.
For connecting the communication and power supply cables to the
SI unit.
For wiring, use a G1/2 cable gland to achieve enclosure rating of IP65.
The cable gland should conform to the wire diameter of the
communication and power supply cables and should be tightened with
the specified torque. Incorrect handling of the wiring entry may allow
foreign matter to enter the SI unit, which will lead to a malfunction and
damage to the SI unit. Use the waterproof plug assembly
(part number: AXT100-B04A) for unused wiring entries.
Blank terminal (N.C.)
