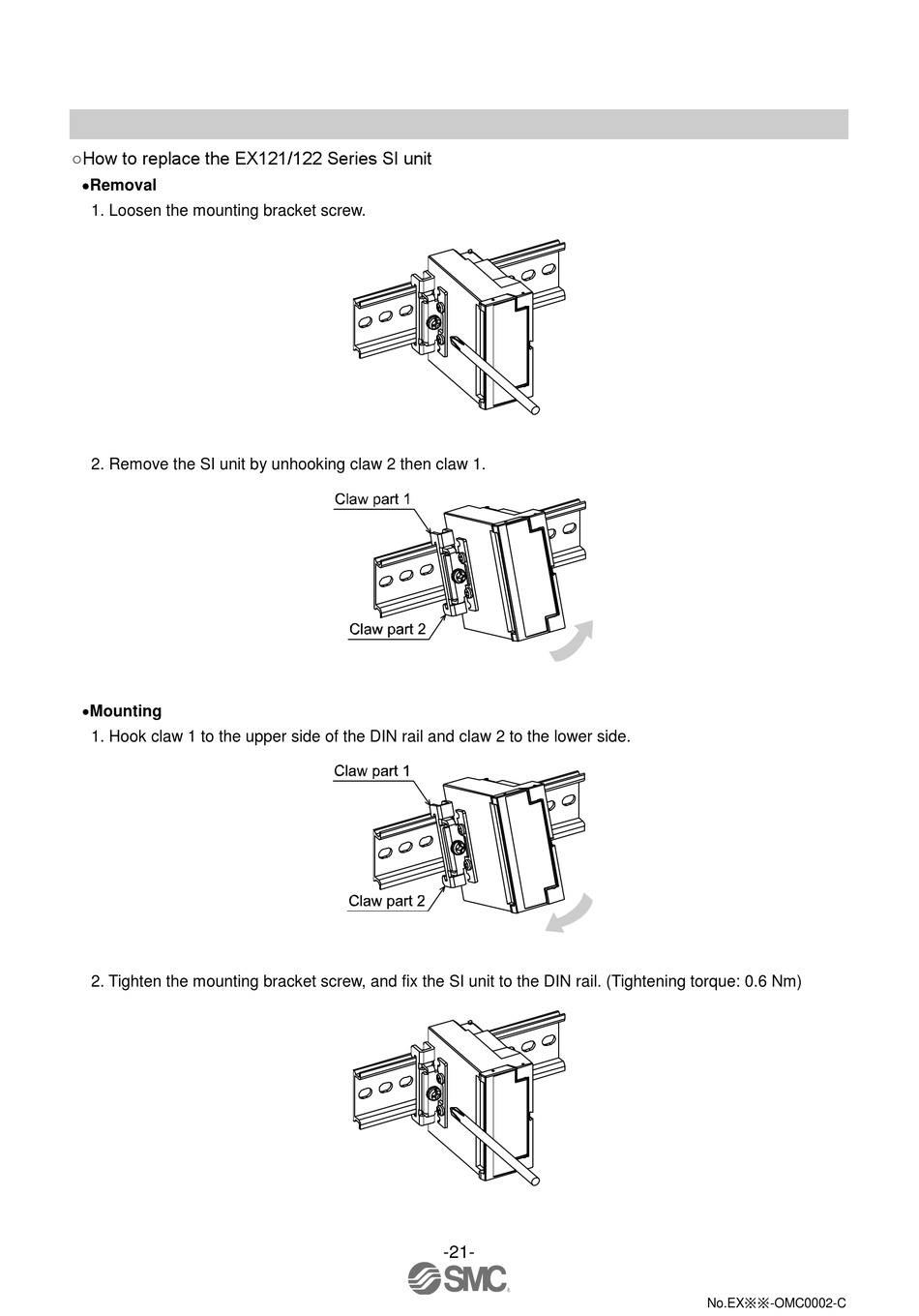

○How to replace the EX121/122 Series SI unit
Removal
1. Loosen the mounting bracket screw.
2. Remove the SI unit by unhooking claw 2 then claw 1.
Mounting
1. Hook claw 1 to the upper side of the DIN rail and claw 2 to the lower side.
2. Tighten the mounting bracket screw, and fix the SI unit to the DIN rail. (Tightening torque: 0.6 Nm)
