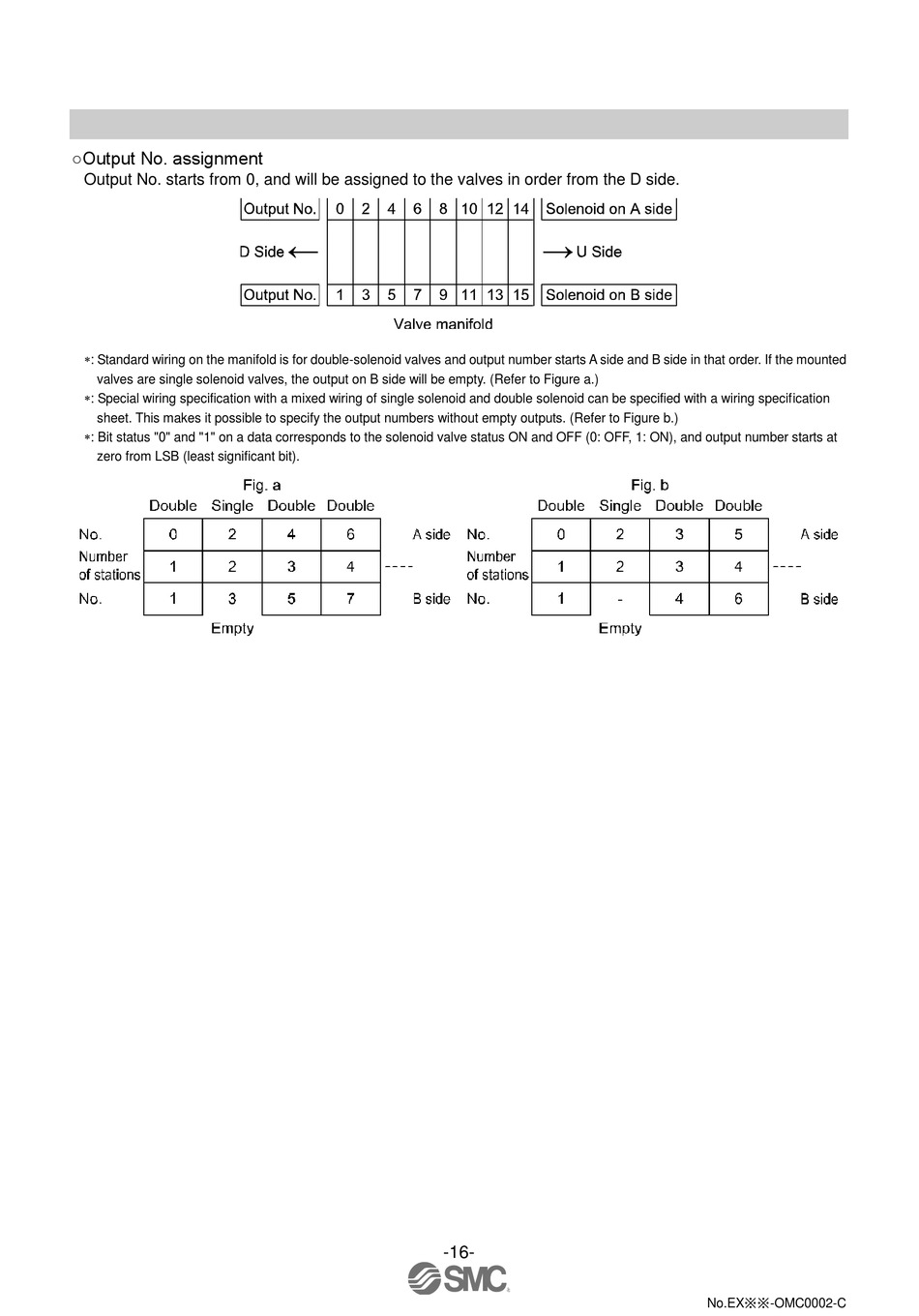

○Output No. assignment
Output No. starts from 0, and will be assigned to the valves in order from the D side.
: Standard wiring on the manifold is for double-solenoid valves and output number starts A side and B side in that order. If the mounted
valves are single solenoid valves, the output on B side will be empty. (Refer to Figure a.)
: Special wiring specification with a mixed wiring of single solenoid and double solenoid can be specified with a wiring specification
sheet. This makes it possible to specify the output numbers without empty outputs. (Refer to Figure b.)
: Bit status "0" and "1" on a data corresponds to the solenoid valve status ON and OFF (0: OFF, 1: ON), and output number starts at
zero from LSB (least significant bit).
-16-
No.EX※※-OMC0002-C
