4- Important: For column installations, a 75 ohm resistor must be installed between the black (video)
and green (GND) cables in the last circle of each column. and between the monitors 75 ohm
resistances must be removed.
Important: A 75 ohm terminating resistor must be fitted between the V-DIST-4 + 1 video amplifier and the
VINPUT and GND terminals.

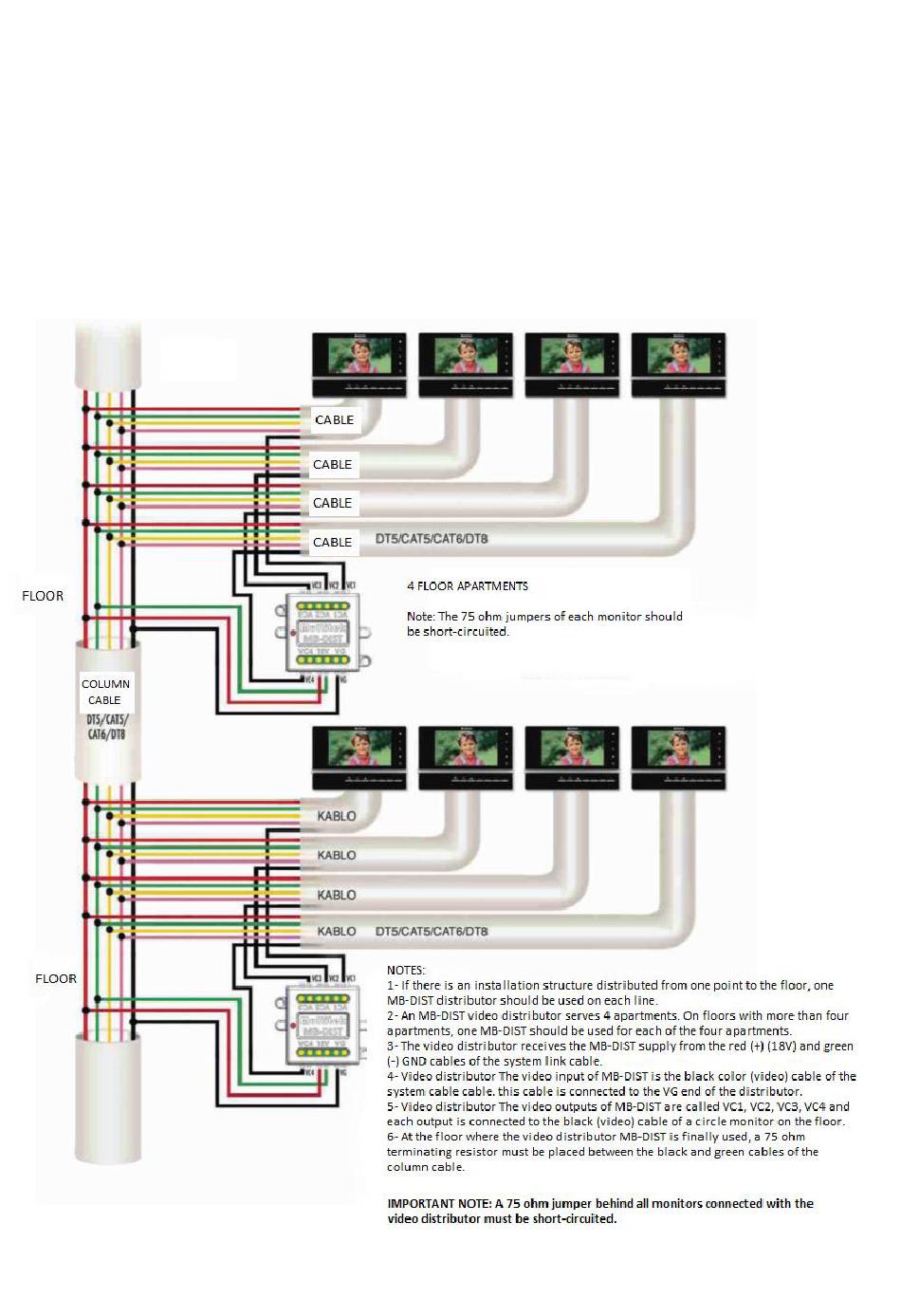

EXAMPLES: DISTRIBUTION OF THE INSTALLATION CABLE TO FLOOR
APARTMENTS
If you have a plumbing system installed on the floor from one point to another, use the MB-DIST video
distributor. The video distributor prevents video distortion.
