MBT-70
VIDEO DOOR PHONE
USER MANUAL
It is suited for all AEEE regulations.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MBT-70 and is the answer not in the manual?

Questions and answers

Related Manuals for Multitek MBT-70

Summary of Contents for Multitek MBT-70

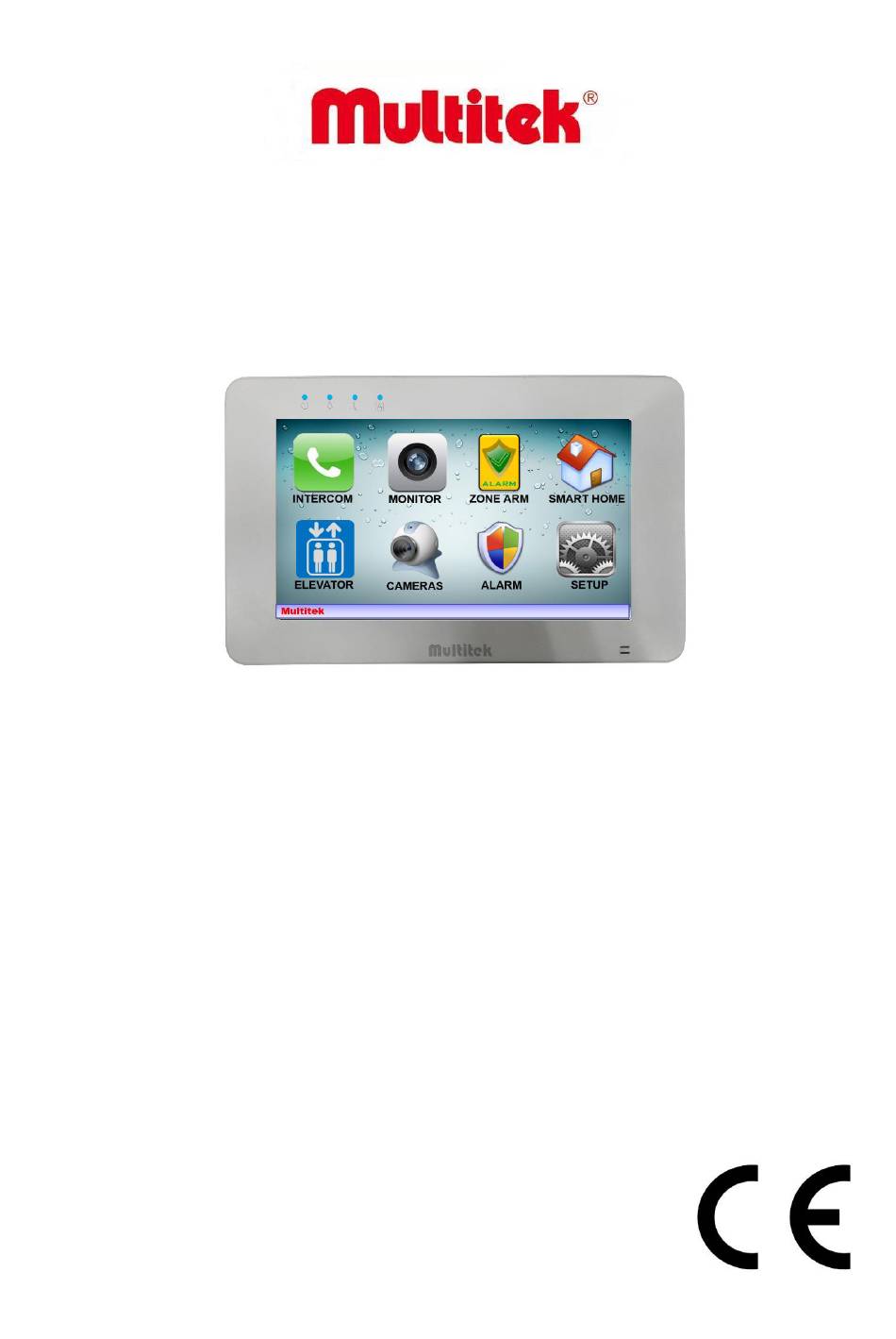

  • Page 1 MBT-70 VIDEO DOOR PHONE USER MANUAL It is suited for all AEEE regulations.
  • Page 2 Thank you for choosing Multitek MBT-70 video door phone. This document contains detailed information about MBT-70 device features. MULTITEK MBT-70 HAS WARRANTY FOR 2 YEARS AGAINST MANUFACTURING DEFECTS. Multitek has all rights to change device features given in this document prior given any information. Manufacturer Multitek Elektronik San. Ve Tic. A. Ş.

  • Page 3: Safety Warnings

    1. SAFETY WARNINGS For your own safety and device safety, please follow the instructions below: 1. Read the user manual carefully. 2. Read the safety warnings carefully. 3. Remarks about Transport, Shipment and Preservation: - During transportation and shipment conserve the product with its case. Casing protects product against physical damages. - Do not put heavy weighted items on the product or the product case.
  • Page 4 2. FEATURES  7” Color LCD Monitor  Working Voltage: 18VDC  Dimensions: 204 X 127 X 21 mm (with mounting bracket)  Handsfree feature  Touch buttons for talking & monitoring door entrance, talking to door keeper, talking to guard, opening door lock ...

  • Page 5: Product View

    3. PRODUCT VIEW Figure 3-1: Front View Figure 3-2: Rear View...

  • Page 6: Wall Mount

    4. WALL MOUNT  Drill holes in the wall, which is fit for wall mount apparatus  Install wall mount apparatus to the wall on a horizontal surface with pegs and screws. Cables must pass through the middle of the wall mount apparatus ...
  • Page 7 5. BUILDING INTERCOM SYSTEM CONNECTION SCHEME Figure 5-1: Connection Scheme...

  • Page 8: Main Functionalities

    6. MAIN FUNCTIONALITIES MBT-70 screen is off during sleep mode, when screen is tapped the monitor wakes up with main screen shown on Figure 6-1. If there is no interaction, the monitor turns off and turns back to sleep mode in 2 minutes.
  • Page 9 b. Monitor Press “Monitor” icon to reach outdoor video view. (Figure 6-3) Figure 6-3: Monitor Screen Hide Icons Turn on/off icon appearance on the screen. When icons are hid, there is no icon on the camera view Settings Brightness, colour and volume level adjustments (Figure 6-4) Call By tapping this icon, voice communication is established between the monitor and the door panel (Figure 6.5).
  • Page 10 c. Cameras Tap “Cameras” to view all cameras. Please beware all cameras might not be active. (Figure 6-6) Figure 6-6: Cameras Screen Tap the camera that you want to connect and view. Other than outdoor camera, indoor door camera and security cameras; up to 5 additional external cameras can be connected. d.

  • Page 11: Door Number

    Door number should be 3-digit number. (i.e. 003 or 001) Each room can set her own unique outdoor password which is a special functionality of MBT-70. When Door Password icon is tapped, a keypad appears (Figure 6-9) DOOR Define 4-digit password using the keypad.
  • Page 12 Figure 6-8: Ring Options Figure 6-9: Keypad (is used to setup room number, alarm etc.)
  • Page 13 In these cases, indoor door panel and MBT-70 are connected as shown in Figure 7-1. The diagram is depicted for two different types of indoor monitors: RL037-M (MB-09M-PA) and DYF04 (1-2) V.
  • Page 14 8. ELEVATOR CALLING MODULE (OPTIONAL) If your building has the elevator calling feature (this is an optional feature enabled with elevator calling module, please consult your technician for additional information), you can call your building’s elevator to your floor before you leave your apartment. To complete setup, tap “Elevator”...
  • Page 15 Smart home is an optional feature for MBT-70 monitors, please consult your technician for additional information. If you have smart type MBT-70, you can control 4 devices or systems (i.e. electricity, water, gas). Smart MBT-70 devices have elevator, alarm and smart home icons as default.
  • Page 16 Figure 9-3: Enter the program code a. Defining relay names To enter relay names and see them as desired in the screen, user can enter the code for each relay and then enter the name (max 12 characters) Enter *011 and tap for relay no 1.
  • Page 17 SMART HOME SETUP MENU PROGRAM CODES CODE CODE AÇIKLAMA X-->1 siren is activated during arming / disarming CALL X-->2 siren is not activated during arming / disarming (default) Note: ALARM FEATURES OF MBT-70 MONITOR IS NOT GIVEN IN THIS DOCUMENT.

  • Page 18: Troubleshooting

    10. TROUBLESHOOTING a. There is no sound or sound level is very low Check speaker level (Figure 6-4) from Screen Settings menu b. Ring level is very low or there is no ringing Check ring sound level settings from Ring Options (Figure 6-8) c.
