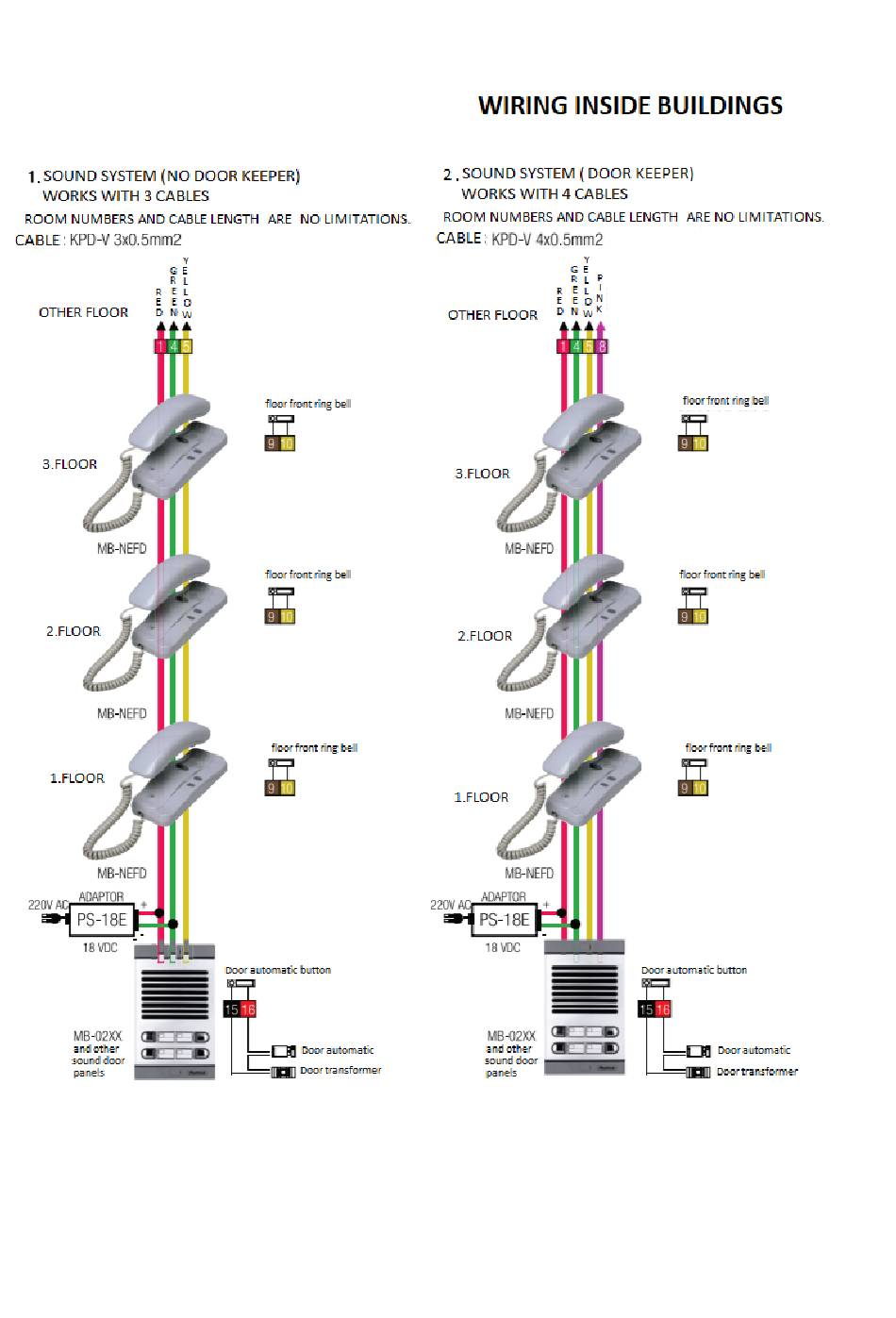

Note:This cabling is done in the sound system building. Between block doors and guard phone are serially
cabling with ground cable (PD-PAP 4X0.5).
Block doors and guard phone are wiring parellely the cable.
See the site applications of video systems for connection details.
10
