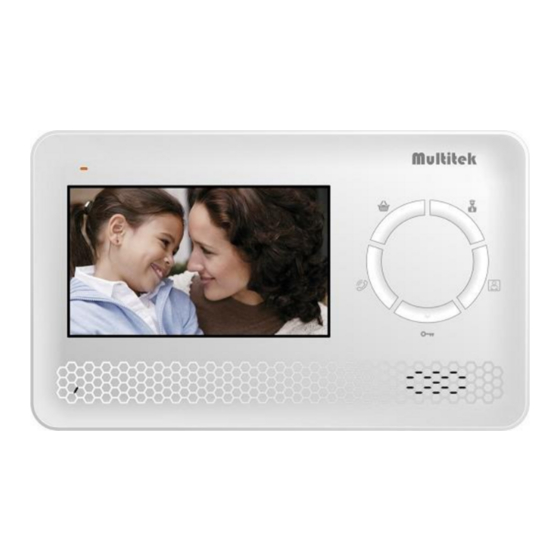

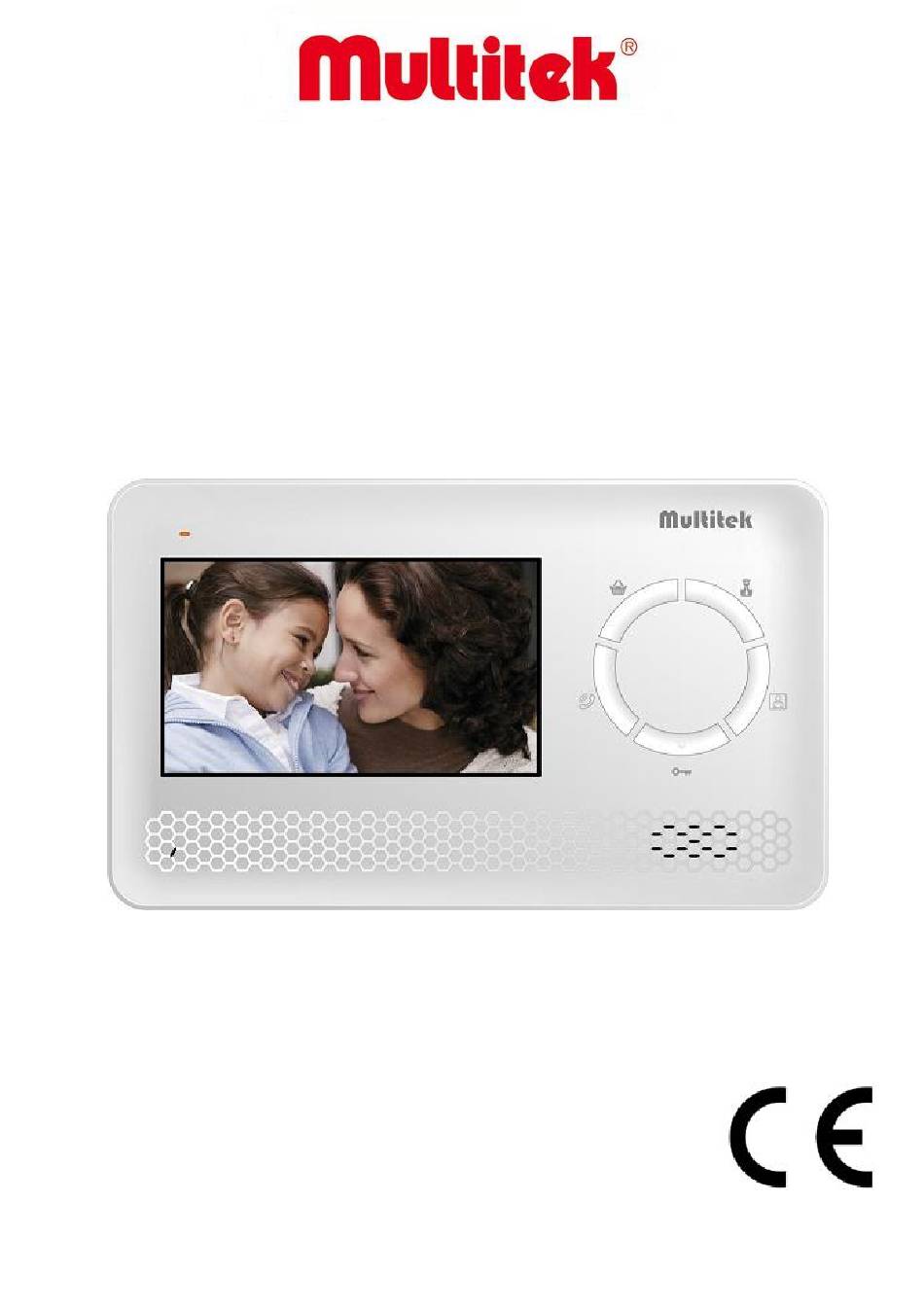

- Page 1 MB-43 MULTIBUS VIDEO DOOR PHONE USER MANUAL...
- Page 2 MB-43 MULTIBUS VIDEO DOOR PHONE USER MANUAL Thank you for choosing Multitek MB-43 video door phone. This user manual was prepared for using the device more efficiently SAFETY WARNINGS For your own and the device safety, you should obey the security warnings;...
- Page 3 such as alcohol, gasoline or thinner. 6. Place the product on a plain and stable wall. 7. To prevent any kind of electrical shock, use the product with its original cable. 8. Don’t put any foreign substance in the product. And don’t try to open it with devices that might cause electrical shock. 9.
- Page 4 OUTLOOK Kapıcıyı Arama Image and Ring Level Adj. Guard Calling Button Display On / Off Open Door Doorpanel connnection Microphone Speaker IMAGE AND SOUND SETTINGS You can adjust the settings with the 4 buttons on the side of the device. To access the setting screen, first press the monitor release button ( ) on the front of the device.
- Page 5 “YELLOW. You can change the value of the selected setting by using the + and – buttons. You can exit the setting screen with the ın Exit button located under + and - buttons. MB-43 INTERCOM SYSTEM CONNECTION Hoparlör Mikrofon Seviye Ayarı...
- Page 6 Note: When needed, please use the 75 ohm terminal jumper to terminate the intercom connection. How to Use the Product 1. Answering calls from outside door or other calls: When there is a call from the Door Panel the video door phone rings and the display of the camera seen on the monitor.
- Page 7 8. External Camera Selection: ) Press button consecutively in 1 second. For example, if you press 2 times, you will select the 1. security camera. SETTING THE RING TONES There are different ring tones for the door panel, room door and the security. You can select and change any of 5 ring tones that the video door phone has.
- Page 8 NO RING TONE VOLUME OR TOO LOW Please check the Ring Volume Level. DISPLAY PROBLEMS; You can adjust the screen with the Contrast and the Brightness buttons. E-mail:info@multitek.com.tr Web: www. multitek.com.tr DOCUMENT NO: MLŞ14- 59/2 DATE: 14.02.2019 REVISION DATE: REVISION NO:...
