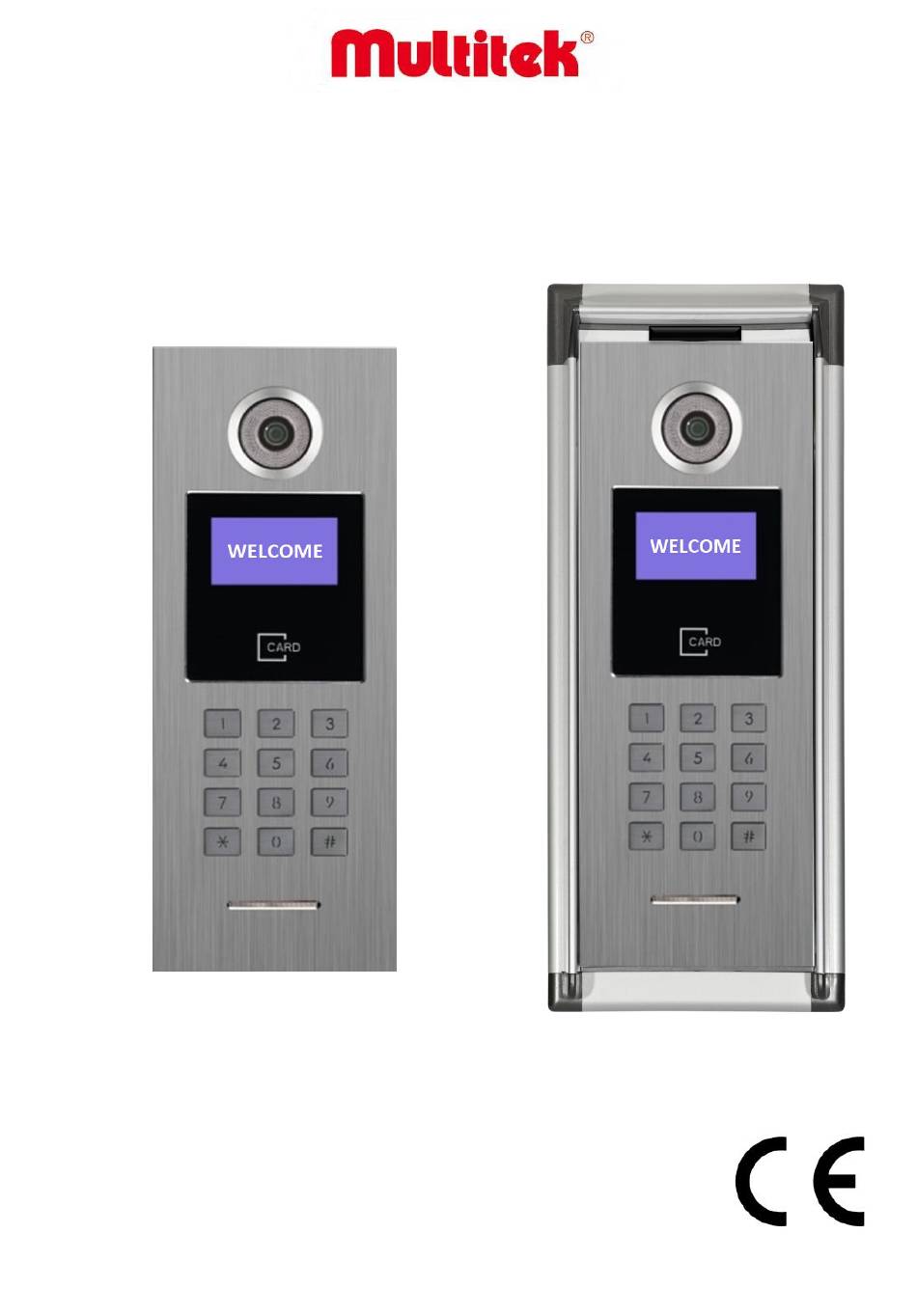

- Page 1 MB-11 USER MANUAL OF OUTDOOR DOOR UNIT WITH KEYBOARD It obeys the rules of AEEE regulations.
- Page 2 CONTENTS: Subject Page Security Warnings Features and Front View • Wall Mount ➢ Assembly using standard blind casing_________________________ 7 ➢ Assembly using raincoat ___________________________________ 8 Back View Camera and Image Settings Installation Connection and Sound Settings Usage Screen usage Features Usage Call Functions Calling with Apartment Number Call Using Phonebook...
- Page 3 • Program ➢ Entering Program Password ➢ Program Screen ➢ Change Password Of Enter Program ➢ Changing the Door Panel Number ➢ Entering Name in the Door Panel Phonebook ___________________19 ➢ Using the Keypad for Name Entry ___________________________20 ➢ Deleting the Door Panel Phonebook __________________________ 21 ➢...
- Page 4 SAFETY WARNINGS Thank you for choosing Multitek MB-11 video door phone. This user manual was prepared for using the device more efficiently. For your own and the device safety, you should obey the security warnings; 1. Read the user manual carefully.

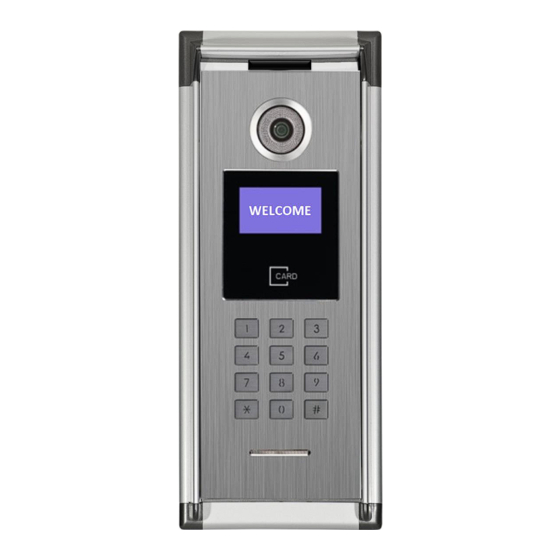

- Page 5 FEATURES: ➢ 128 X 64 LCD Display ➢ Dimensions: 142 X 367 X 10 mm ( Unprotected) 180 X 430 X 28 mm (Protected) ➢ Illuminated and aluminum keypad ➢ Aluminum Body ➢ Lighting LEDs for Night Vision ➢ Flush Mounting ➢...
- Page 6 DOWN NEXT PAGE PREVIOUS PAGE Then the PHONEBOOK screen will appear. You can use 2 - 8 - 4 - 6 keys on the keypad to select the circle you want to search. The currently selected circle appears selected in White. Example: For calling room 01 pressing key 2 to selected the room 01.
- Page 7 OPENING THE OUTDOOR WITH PASSWORD Enter 99 + 4 digit number password with keypad of the door panel. Example: If the password (of any room) is 2486 you enter the following digits to the door panel: OPENING OUTDOOR WITH CARD The door can be opened using the previously saved Proximity Card or Keychain.
- Page 8 Note: Consecutive digits like 1234 or 5678 may not be assigned as password. If the door panel gives an error tone it means the password is not accepted. ENTER TO SETTING MENUS: # 99 Press on the standby screens to enter the Setup Menu. White Color Arrow indicates the currently selected option.
- Page 9 NOTE: ALL OPERATIONS ARE MADE ON THE SETTING MENUS. THE “PROGRAMMING PASSWORD" IS REQUIRED TO ACCESS THE SETTING MENUS. 7447 Factory Setting Programming Password: PROGRAM Screen: CHANGING THE PROGRAMMING PASSWORD: White Color Arrow indicates the currently selected option. 2 and 8 keys are used for Up - Down.
- Page 10 You are prompted to enter NEW PASSWORD in the incoming screen. The password must be 4 digits. Key in the new password via the keypad. Note: Consecutive digits like 1234 or 5678 may not be assigned as password. If the door panel gives an error tone it means the password is not accepted.
- Page 11 The current Door Number is displayed on the incoming screen. You can set the DOOR NUMBER 1 to 4 using the 2 - 8 buttons. Use the 2 key to increase the No and decrease with the 8 key. Press after setting.
- Page 12 Example: For room number is 4 First press Then press You are asked to enter the Room No and the Room Name in the incoming screen. The keypad is used for Name Entry. Input name and then press # If there is a new entry, enter the Apartment Number and Name ...
- Page 13 USING THE KEYPAD FOR NAME INPUT At the name entry, press the key with the letter to be pressed until the desired letter is. Each press will display the next letter. Write cursor moves aside after 2 seconds when the desired letter arrives. The room name can be up to 10 letters.
- Page 14 DELETE DOOR PANEL PHONEBOOK: When the Door Panel Guide is cleared, the saved Proximity Card Records and Door Open Passwords are not deleted. This operation is done via the DELETE GUIDE option in the Programming screen. Use 2 - 8 button to select NAME Input and then press #. The Operation Screen appears.
- Page 15 CHANGE BLOCK NUMBER: For systems with more than one block, the door panels of each block must be defined separately. The factory default setting is BLOCK NO 1. This operation is done by selecting BLOCK NO in the programming screen. Use 2 - 8 button to select BLOCK NO and then press #.
- Page 16 REPLACING THE DOOR AUTOMATIC PULL TIME: Depending on the type of Door Automatic used, it may be necessary to change the time of the Door Automatic Relay in the Door Panel. In factory default settings, Door Automatic Relay Time is set to 1. This operation is in the programming screen "DOOR AUTOMATIC TIME"...
- Page 17 This is done in the Programming screen via the "DELETING ROOM PASSWORDS" option. Use 2 - 8 button to select DELETING ROOM PASSWORDS and then press #. The Operation Screen appears. When the delete operation is finished, the device returns to the Home Screen. H.
- Page 18 Use 2 - 8 button to select “HOW MANY BLOCKS ARE THERE” and then press #. The current Total Block No is displayed on the incoming screen. Use the 2 key to increase the No and decrease with the 8 key. Press , after settings.
- Page 19 Press the button on the programming screen. The Proximity Card Operations Menu appears. CARD REGISTRATION: For each apartment you can registration maximum 5 Proximity Cards. DELETE CARDS: If the card or cards of a room have disappeared, you can delete the cards of that room.
- Page 20 Use 2 - 8 button to select “CARD RECORD” and then press #. You are asked to enter the Apartment Number to save the cards. For each apartment you can registration maximum 5 Proximity Cards. Example: For room number is 4 First press Then press Closer the Proximity card to card reader...
- Page 21 The message OK appears when the card is saved. You will then be asked to read the other card. To end the process when all cards of the corresponding room are recorded Press The Proximity Card Operations Menu appears again. ...
- Page 22 Example: For room number is 4 First press Then press When finished, OK message followed Proximity Card Operations Menu appears.. I. DELETING ALL RECORDED PROXIMITY CARDS: You can delete all saved proximity cards at once. This operation is done by selecting "DELETING ALL PROXIMITY CARDS" in the Proximity Card Operations menü.
- Page 23 The Operation Screen appears. The Device Home screen appears when the Delete Phonebook is finished. RESETTING THE PANEL WHEN THE PROGRAMMING PASSWORD IS FORGOTTEN When you forget the Program Password used to enter the setup menus, you must reset the Door Panel. FOR RESET: •...
- Page 24 • Your door Panel has been RESET when OK is displayed. • After the RESET operation, the Programming Input Password will be 7447. • In the RESET process; The Phonebook, Door Open Passwords, Proximity Card Recording and other settings are NOT DELETED.
- Page 25 DOCUMENT NO: MLŞ14- 61/2 DATE: 15.02.2019 REVISION DATE: REVISION NO: PAGE NO: 25/25...
