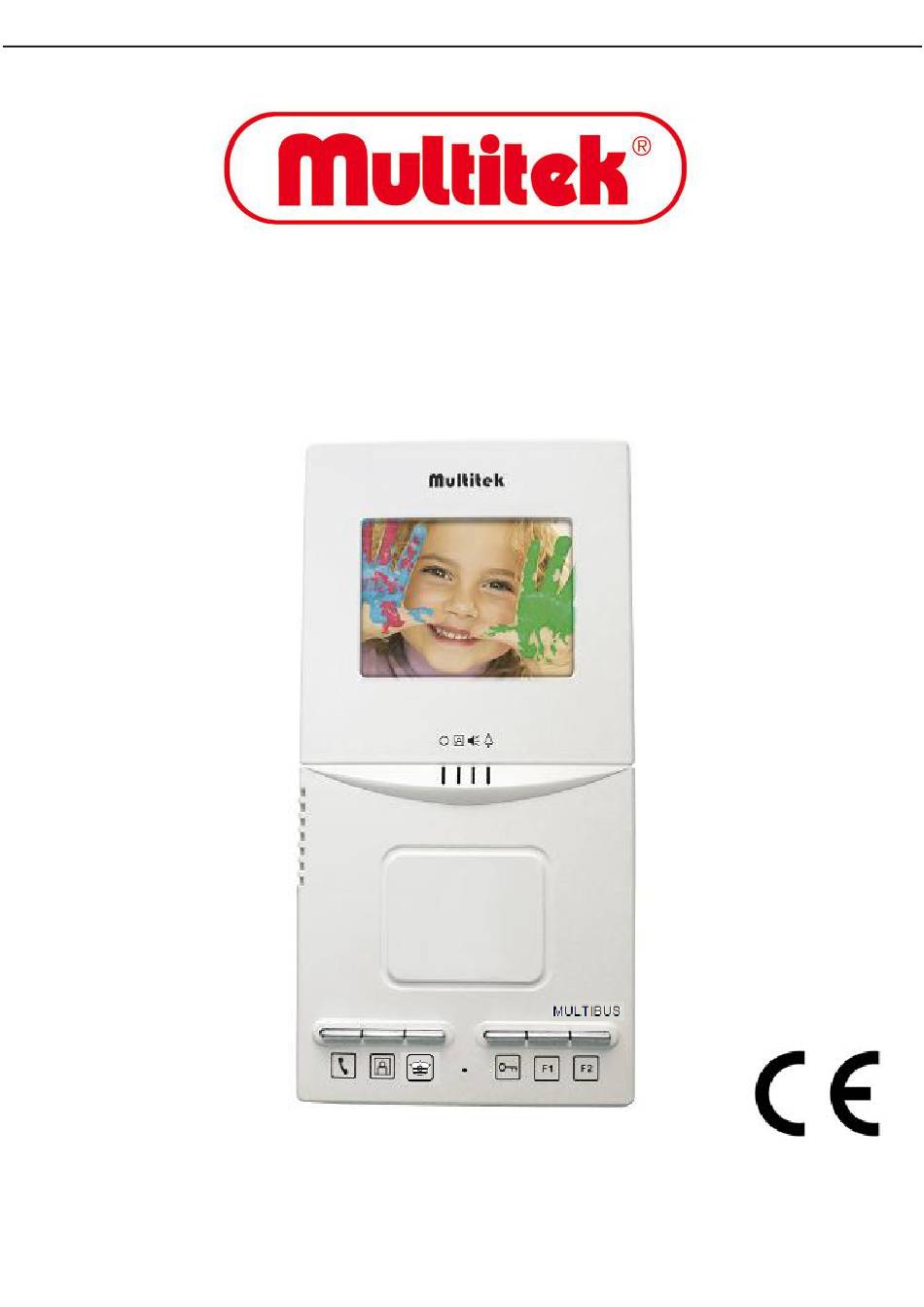

- Page 1 MB-40 MULTIBUS VIDEO DOOR PHONE USER MANUAL...
- Page 2 MB-40 MULTIBUS VIDEO DOOR PHONE USER MANUAL Thank you for choosing Multitek MB-40 video door phone. This user manual was prepared for using the device more efficiently. SAFETY WARNINGS For your own and the device safety, you should obey the security warnings;...
- Page 3 contain any solvent such as alcohol, gasoline or thinner. 6. Place the product on a plain and stable wall. 7. To prevent any kind of electrical shock, use the product with its original cable. 8. Don’t put any foreign substance in the product. And don’t try to open it with devices that might cause electrical shock.
- Page 4 OUTLOOK LCD Monitor Telephone Open Led Monitor Open Led System Busy Led Ringing Led Speaker Settings F1 F2 Function Button Calling Janitor Unlock the Door Microphone Calling the Guard Monitor On/Off Calling the Doorpanel SETTINGS Ringing Volume Contrast Level Brightness Level Volume Level Setting Button...
- Page 5 You can change the contrast level using the Contrast Level Button. BRIGHTNESS Level You can change the brightness level using the Brightness Level Button. MB-40 INTERCOM SYSTEM CONNECTION Note: When needed, please use the 75 ohm terminal jumper to terminate the intercom connection.
- Page 6 How to Use the Product 1. Answering the incoming Calls from Door Panel(Door Entrance): When there is a call from the Door Panel the video door phone rings and the display of the camera seen on the monitor. For talking, press ( ) and Answer the Call.
- Page 7 Press ( F1 ) for janitor ring tone selection, • The existing ring tone will start ringing. • Change by pressing ( • Confirm the ring tone by pressing ( F1 ). ROOM DOOR PANEL CONNECTION FOR THE V-TYPE MONITORS (OPTIONAL) In the multibus intercom system, you may setup “internal ring button with camera”...
- Page 8 NOISE IN THE VIDEOPHONE Please check the telephone intercom line connections. NO RING TONE VOLUME OR TOO LOW Please check the Ring Volume Level. DISPLAY PROBLEMS; You can adjust the screen with the Contrast and the Brightness buttons. info@multitek.com.tr E-mail: Web: www. multitek.com.tr...
