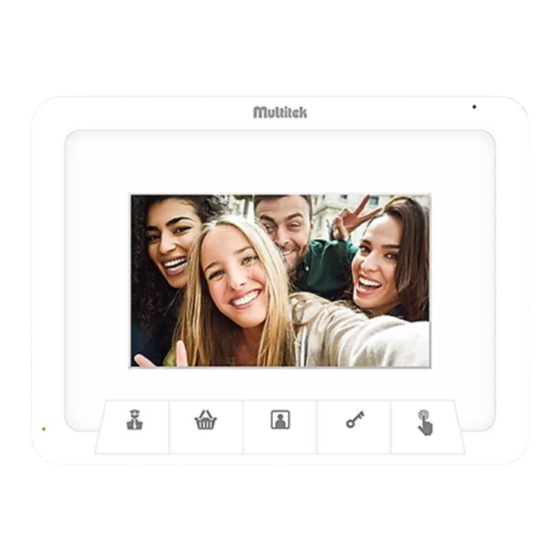

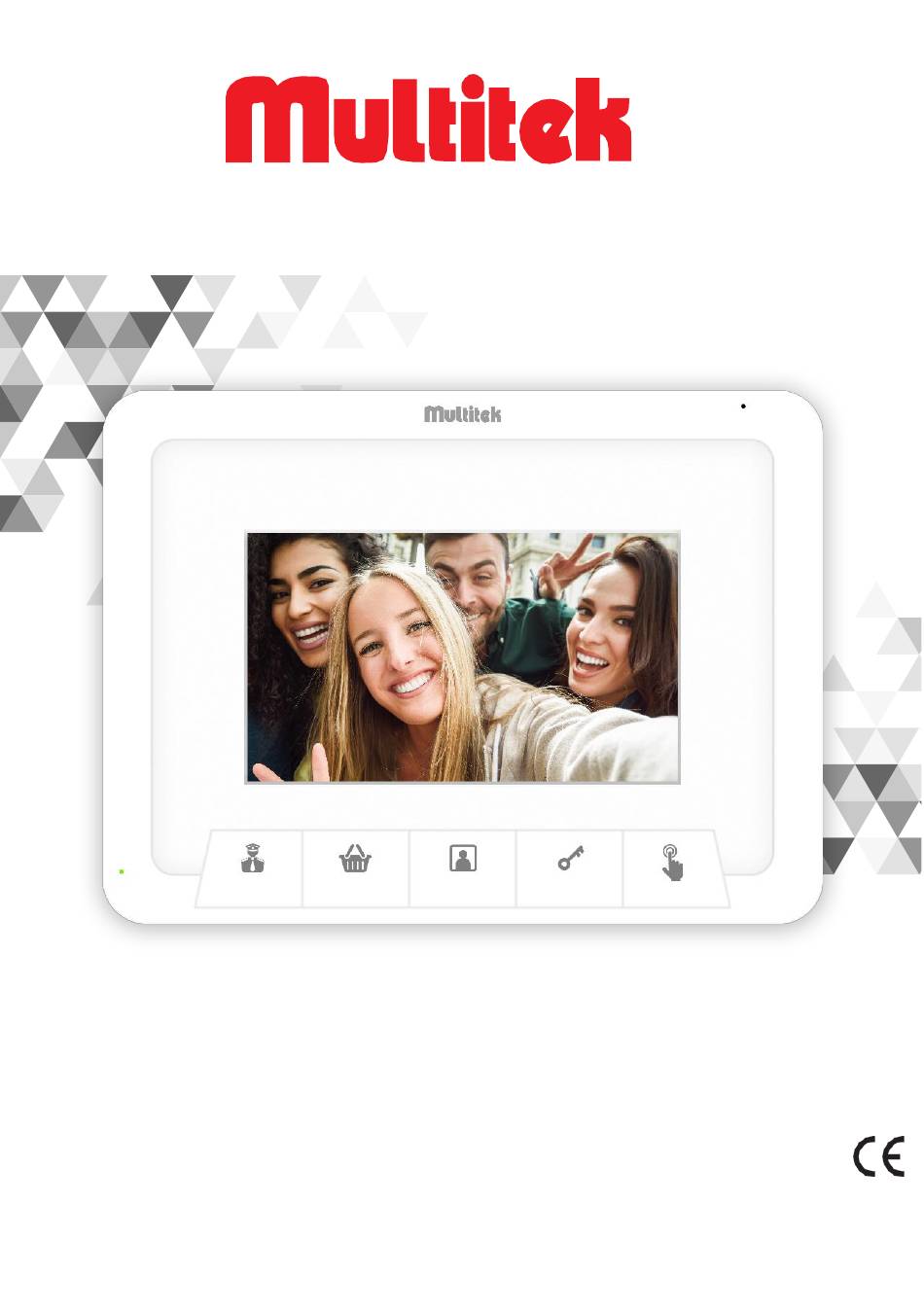

- Page 1 MB-45 VISUAL APARTMENT MONITOR USER MANUAL AND WARRANTY CERTIFICATE MB-45 AEEE complies with the regulation.
- Page 2 MONITOR. This user manual has been prepared to teach you the features of your device and to use it more efficiently. YOUR MULTITEK MB-45 DEVICE IS GUARANTEED FOR 2 YEARS AGAINST MANUFACTURING DEFECTS. THE LIFE OF THIS DEVICE IS 5 YEARS.
-
Page 3: Table Of Contents
2. APPEARANCE 3. IMAGE AND RING SETTINGS 3.1 Image settings 3.2 Ringtone settings 4. MB-45 INTERCOM SYSTEM CONNECTION 5. USING THE DEVICE 5.1 Answering outside door or other incoming calls 5.2 Apartment door (interior bell) incoming calls 5.3 Getting the image of the outer door 5.4 Searching for the outer door... -
Page 4: Safety Warnings
SAFETY WARNINGS: For your device and your safety, some safety rules must be followed. • Read the user manual carefully. • Read the safety warnings carefully. Matters to be considered during handling, transportation and storage; • During transportation and transportation, always carry the product with its box. The box of the product will protect the product from physical damage. -
Page 5: Features
1. FEATURES: Color LCD 4.3” (420xRGBx272 pixel) screen • Dimensions: 184 X 110 X 21.5 mm (With mounting bracket) • Connecting to the door, Looking for a concierge, Security search, Door release • buttons Exterior door – Interior door - Security separate ringtones •... -
Page 6: Image And Ring Settings
3. IMAGE AND RING TONE SETTINGS: 3.1 Image settings: 1. Step Press the following buttons respectively for the setting screen. Step Press the SECURITY button to switch between settings. Brightness adjustment: When the settings screen is open, the top brightness setting is selected as YELLOW. -
Page 7: Ringtone Settings
4. Step Save your preferred melody with the BASKET button. 4. MB-45 INTERCOM SYSTEM CONNECTION: Note: A 75 Ohm terminating resistor is used to terminate the line. If necessary, use the 75 Ohm termination jumper to terminate the intercom connection line. -
Page 8: Using The Device
5. USING THE DEVICE: Answering outside door or other incoming calls Incoming calls from the outside door, your apartment monitor will ring and the screen will display. ( ) you press the button. Talking ( ) you press the button. Release the button while listening. -
Page 9: Troubleshooting
7. TROUBLESHOOTING: NO OR LOW TALK SOUND Check Speaker Volume Adjustment. (See. Page 6) IF THE APARTMENT MONITOR AUDIO IS NOISE Check the apartment monitor intercom line connections. NO RING OR LOW Check the Ring Volume Adjustment. (See. Page 5) IMAGE PROBLEM You can adjust the appropriate image color with the Color, Brightness level adjustment.
