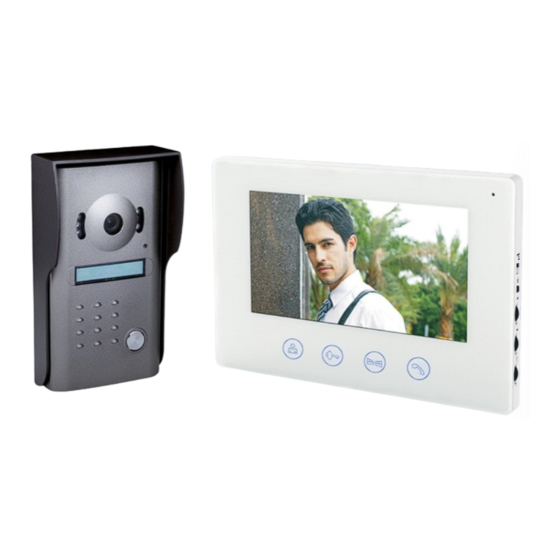

COLOR VIDEO DOORPHONE
Product Description...................................1
Features.....................................................1
Package Contents......................................1
Safety Instruction.......................................2
System Installation.....................................2
Operation Instruction.................................6
Technical Specifications............................8
MODEL:RL-B17M
Trouble Shooting.......................................10
USER MANUAL
Version 1.0
Advertisement
Table of Contents
Related Manuals for Multitek RL-B17M
Summary of Contents for Multitek RL-B17M
- Page 1 COLOR VIDEO DOORPHONE Product Description........1 Features.............1 Package Contents........1 Safety Instruction........2 System Installation........2 Operation Instruction.........6 Technical Specifications......8 MODEL:RL-B17M Trouble Shooting........10 USER MANUAL Version 1.0...
-
Page 2: Product Description
Safety Instruction ·Keep the indoor unit away from high temperature such as near an oven or The RL-B17M color video doorphone can be used to monitor, call, intercom under direct sunlight, and high humidity such as bathroom and greenhouse. and unlock.It is a product that is very suitable for villa, single house, hotel, ·Do not install the indoor unit close to a television or position with strong... - Page 3 C. Wiring Diagram B. Outdoor Unit 1) Take off the screws on the bottom and remove the front cover. Take off the ‘Room No,’ lid and write down your respective room/block number and cover it again with the lid. AC100-240V 50HZ/60HZ 1 1 1 2 2 2 3 3 34 4 4 5 5 56 6 67 7 7 8 8 8 DC12V...
-
Page 4: Operation Instruction
Operation Instruction B. Outdoor Unit Camera Indoor Unit Rain shade Microphone Infrared light Microphone Room number Speaker Call Monitor Talk Unolock Gate Unlock Wiring terminal Melody (L/M/H) Speaker Melody Selection Wiring Brightness Terminal 1) Press CALL button of outdoor unit to call. The doorbell will ring and the images of visitors Chroma will be shown on the indoor unit. -
Page 5: Technical Specifications
Technical Specifications Trouble Shooting Indoor Unit Problem Solutions ·Make sure all the connections are secure and Screen Size properly connected. ·Make sure your monitor is plugged into a power Resolution 800(H) x 3(RGB) x 480(V) No Picture/Signal source. ·Make sure there is nothing obstructing the view Effective Area 154.08mm(H) x 85.92mm(W) o f t he c amera.
