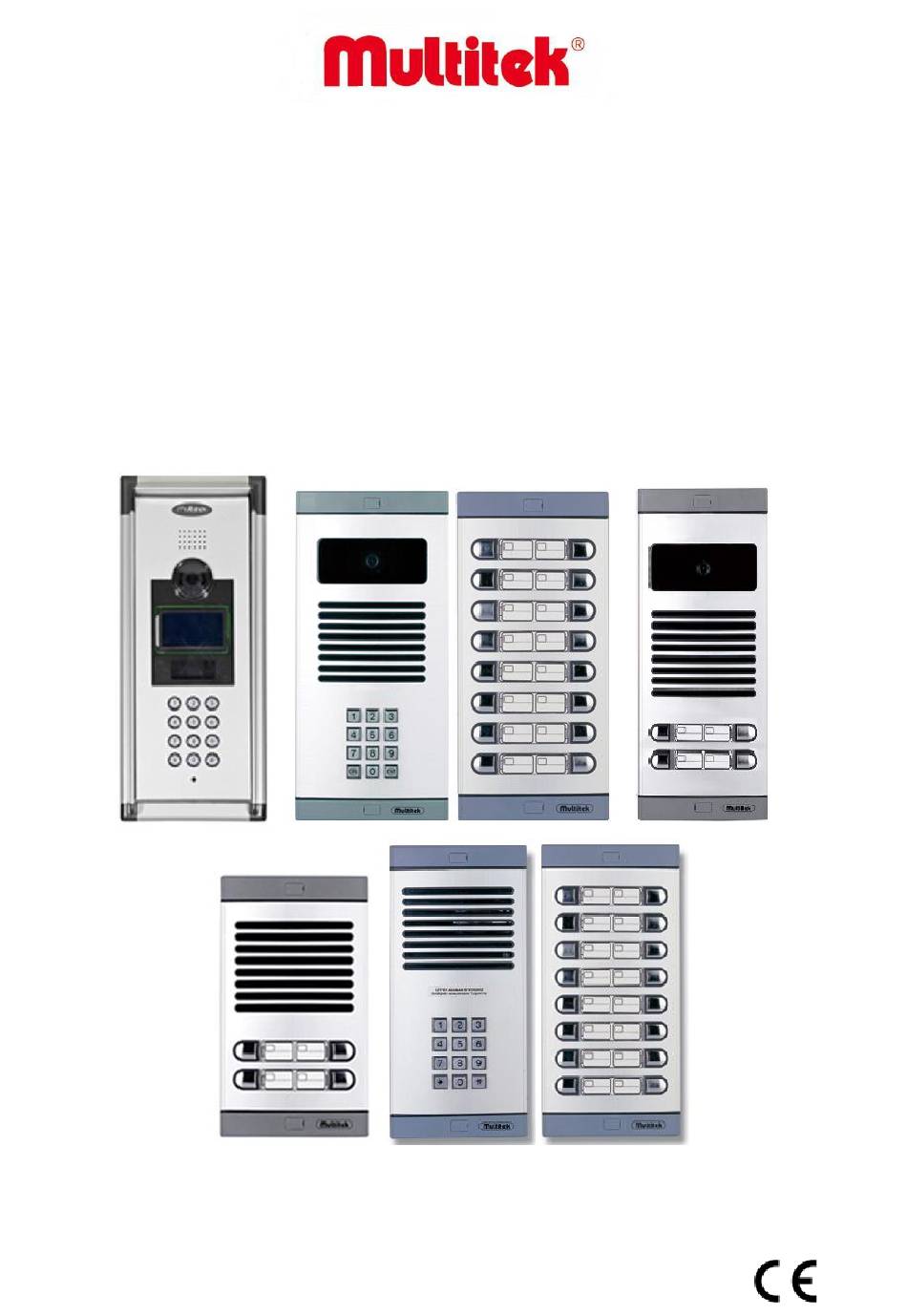

- Page 1 MULTIBUS USER MANUAL (MB-09, MB-10, MB-02, MB-04, MB-03,MB-05) It obeys the rules of AEEE regulations.

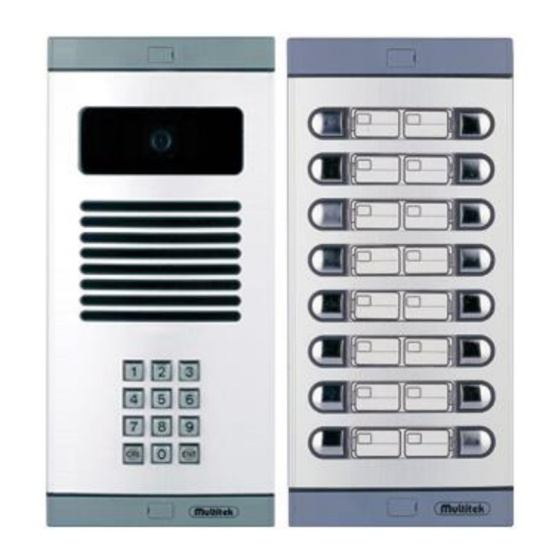

- Page 2 MULTIBUS MB-09 and MB-10 DOOR PANEL USER MANUEL VERSION PROGRAM Note: Some panels have ENT, CLR and some panels have ARA ,SIL buttons on the keypad. ENT/ARA and CLR/SIL buttons have the same functions. 1. CALLING BY NAME: Name list can be shown by pressing ENT key. Select the name using up (2), down (8), right (6), left (4) keys Dial the name by pressing ENT key.
- Page 3 ENT key.Then , enter the name as followings: NO: 02 AD: MULTITEK NO: Enter the flat number with keypad and press ENT key and go to the name section. AD: You can write the room name with the keypad selecting the letters given in the keypad below.
- Page 4 doorpanel block number is entered. The block number may be up to 30. f)UNLOCK DURATION (DOOR UNLOCK DURATION) Door release time of the door lock may be needed to adjust. Bring the cursor UNLOCK DURATION line by playing up (2), down (8) keys. Then press ENT.
- Page 5 4.WIRING DIAGRAM OF MB10 PANELS NOTES 1. The total number of external cameras connected to a building cannot be more than 5. 2. The number of external cameras connected to the door panel is defined by programming. 3. The image of the camera door panel and external cameras in a building is taken by repeatedly pressing the button on the monitor.
-
Page 6: Change Program Password
MULTIBUS MB-05 and MB-03 DOOR PANEL USER MANUEL PROGRAM PASSWORD: 4-digit program password is used to define the block number from the door panel, to define the door number etc. Initial value of program password is 7447. In the following programming sections the program password is written as SSSS. SSSS = Programing Password (Default 7447) CHANGE PROGRAM PASSWORD: The current program password + 2 + new program password is keyed in the door panel. - Page 7 The password of apartment 2 becomes 1453 Opening The Outside Door With A Password Entered the panel 99 + 4 digit password (XYZT) Example: Apartment 2 password: 1453 Entered the panel 99 + 1453 and door is opened. Note: If you entered wrong, you can delete with CLR. Defining The Block Number 4-digit password + 1 + block number is keyed in the door panel.
- Page 9 MULTIBUS MB-04 and MB-02 DOOR PANEL USER MANUEL...
- Page 10 Note:This cabling is done in the sound system building. Between block doors and guard phone are serially cabling with ground cable (PD-PAP 4X0.5). Block doors and guard phone are wiring parellely the cable. See the site applications of video systems for connection details.
- Page 11 3.VIDEO SYSTEM ( No Guard and No Doorkeeper) General Cabling a) 12 Floor (Up to 80 Rooms) Work with 4 cables. Multitek DT5 or H03VH-H 2x1 mm2 (red,green) KPD-V 2x0.5 mm2 (yellow, black, pink) Not: For more floors and apartment floors...
- Page 12 b) 6 Floors (Up to 40 floors) Works with CAT5/CAT6/DT8. (Connection diagrams are as follows)
- Page 13 1-VIDEO AMPLIFIER (V-DIST 4+1) CONNECTIONS DIAGRAMS (4 COLUMN) Video amplifier is used to amplify the video signal in column-type installations and mounted near the door panel. Notes: 1-Column-shaped installations, the number of columns in the building is more than one video amplifier V- DIST 4+1 is used.
- Page 14 4- Important: For column installations, a 75 ohm resistor must be installed between the black (video) and green (GND) cables in the last circle of each column. and between the monitors 75 ohm resistances must be removed. Important: A 75 ohm terminating resistor must be fitted between the V-DIST-4 + 1 video amplifier and the VINPUT and GND terminals.
- Page 16 SUMMARY PRODUCTS TO BE USED IN MULTIPLE SYSTEM 1. Number of video amplifiers to be used in MULTIBUS system it is only used for column cable installations and is required to be placed near the door panel, 5 columns need 1 piece. 2.
