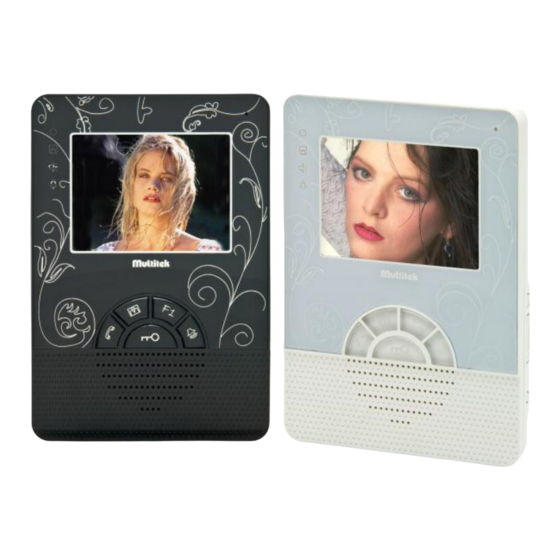

- Page 1 MB-41 MULTIBUS VIDEO DOOR PHONE USER MANUAL...
- Page 2 MB-41 MULTIBUS VIDEO DOOR PHONE USER MANUAL Thank you for choosing Multitek MB-41 video door phone. This user manual was prepared for using the device more efficiently. SAFETY WARNINGS For your own and the device safety, you should obey the security warnings;...
- Page 3 6. Place the product on a plain and stable wall. 7. To prevent any kind of electrical shock, use the product with its original cable. 8. Don’t put any foreign substance in the product. And don’t try to open it with devices that might cause electrical shock. 9.
- Page 4 OUTLOOK Microphone Hook-off LED Guard busy LED Door busy LED Power/Ring LED Screen Janitor button Monitor button Guard button arama Doorpanel connnection Door release Speaker Contrast Adj. Ring Level Adj. Brightness Adj. RING Volume Level You can change the ring volume level using the Ringing Volume Level Button. CONTRAST Level You can change the contrast level using the Contrast Level Button.
- Page 5 MB-41 DOORPHONE CONNECTION Note: When needed, please use the 75 ohm terminal jumper to terminate the intercom connection. How to Use the Product 1. Answering the incoming Calls from Door Panel (Door Entrance): When there is a call from the Door Panel the video door phone rings and the display of the camera seen on the monitor.
- Page 6 2. Calls from Internal Door: The video door phone rings when the internal ring button is pressed. There is someone on the door. 3. Monitoring the Door Entrance: Press the ( ) button once. Monitor will be off after 1 minute. 4.
- Page 7 ROOM DOOR PANEL CONNECTION FOR THE V-TYPE MONITORS (OPTIONAL) In the multibus intercom system, you may setup “internal ring button with camera” to see the room door entrance. The internal ring unit CM-06DNK-C or MB–09M-PA wiring is done like the figure below;...
- Page 8 NOISE IN THE VIDEOPHONE Please check the telephone intercom line connections. NO RING TONE VOLUME OR TOO LOW Please check the Ring Volume Level. DISPLAY PROBLEMS; You can adjust the screen with the Contrast and the Brightness buttons. info@multitek.com.tr E-mail: Web: www. multitek.com.tr...
