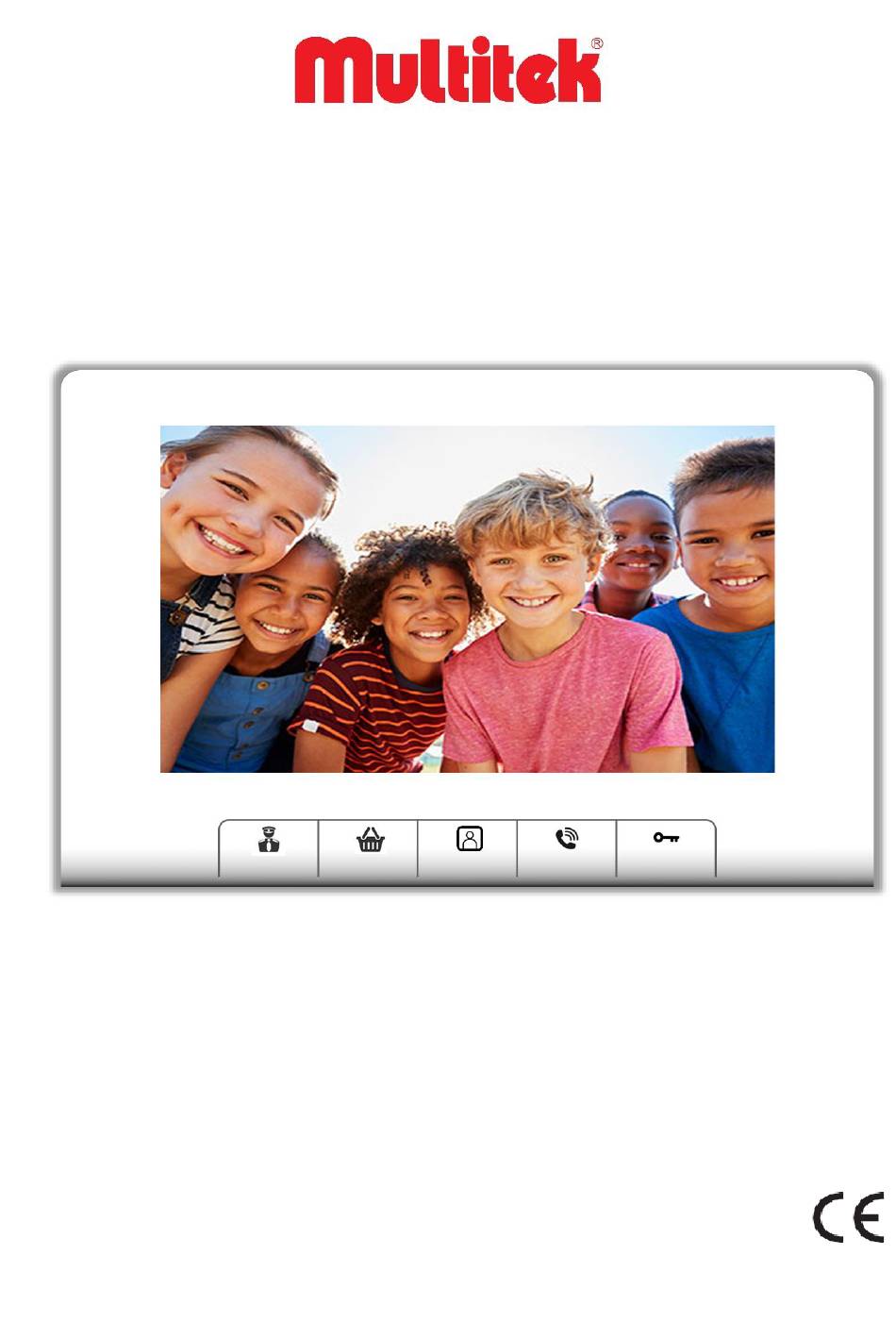

- Page 1 MB-74 VIDEO HOME MONITOR USER MANUAL AND WARRANTY CERTIFICATE Complies with WEEE regulation.

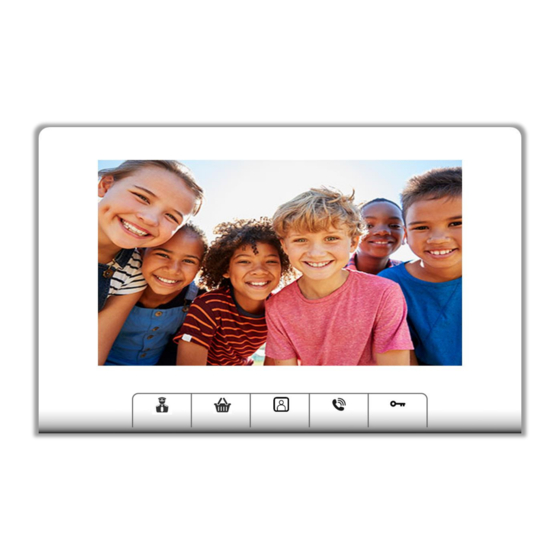

- Page 2 MB-74 VIDEO HOME MONITOR USER MANUAL Thank you for choosing Multitek MB-74 VIDEO HOME MONITOR. This user guide has been prepared for you to use your device more efficiently by showing its features. YOUR MULTITEK MB-74 DEVICE IS GUARANTEED FOR 2 YEARS AGAINST MANUFACTURING DEFECTS.
- Page 3 3. IMAGE AND RING TONE SETTINGS ....................... 6 3.1. Image Settings ..........................6 3.2 Ringtone Melody Settings ......................7 4. MB-74 INTERCOM SYSTEM CONNECTION ....................7 5. USING THE DEVICE ............................9 5.1 Answering Outside Door or Other Incoming Calls ................ 9 5.2 Incoming Calls at the Apartment Door ..................
-
Page 4: Safety Warnings
SAFETY WARNINGS: For your device and your safety, some safety rules must be followed. • Read the user manual carefully. • Read the safety warnings carefully. Matters to be considered during handling, transportation and storage; • During transportation and transportation, always carry the product with its box. The box of the product will protect the product from physical damage. - Page 5 1. FEATURES: • Color LCD 7” (420xRGBx272 pixel) Screen • Dimensions: 204 X 130 X 18 mm (With mounting bracket) • Connecting to the door, Call the doorman, Security the call, Door open buttons • Exterior door – Interior door - Security setting ringtones •...
- Page 6 3. IMAGE AND RING TONE SETTINGS: 3.1 Image settings: Step Press the following buttons respectively for the setting screen. Step Press the SECURITY button to switch between settings. Brightness adjustment: Brightness setting at the top when the settings screen is open It is selected as YELLOW.
- Page 7 Step Save your preferred melody with the CART button. 4. MB-74 INTERCOM SYSTEM CONNECTION: Note: A 75 Ohm termination resistor is used to terminate the line. If necessary, use the 75 Ohm termination jumper to terminate the intercom connection line.
- Page 8 VILLASET CONNECTION: Interior Door Panel Link Connector LIP-03 Interior Door Panel Link Connector DOOR AUTO CONNECTION 220V TRAFO DOOR AUTO CONTAC «NORMALLY « » WITH CLOSE CIRCUIT» AT RELAY « » OPEN CIRCUIT WITH CONTAC «NORMALLY « » OPEN CIRCUIT WITH » AT RELAY «...
-
Page 9: Using The Device
5. USING THE DEVICE: 5.1 Answering outside door or other incoming calls Incoming calls from the outside door, your apartment monitor will ring and the screen will display. ) you press the button. Talk time is 1 minute. Key ( ) If you press the button, the door will open. -
Page 10: Troubleshooting
7. TROUBLESHOOTING: NO OR LOW TALK SOUND Check the Speaker Volume Adjustment. (See. Page 6) IF THE APARTMENT MONITOR AUDIO IS NOISE Check the apartment monitor intercom line connections. NO RING OR LOW Check the Ring Volume Adjustment. (See. Page 6) IMAGE PROBLEM You can adjust the appropriate image color with the Color, Brightness level adjustment.
