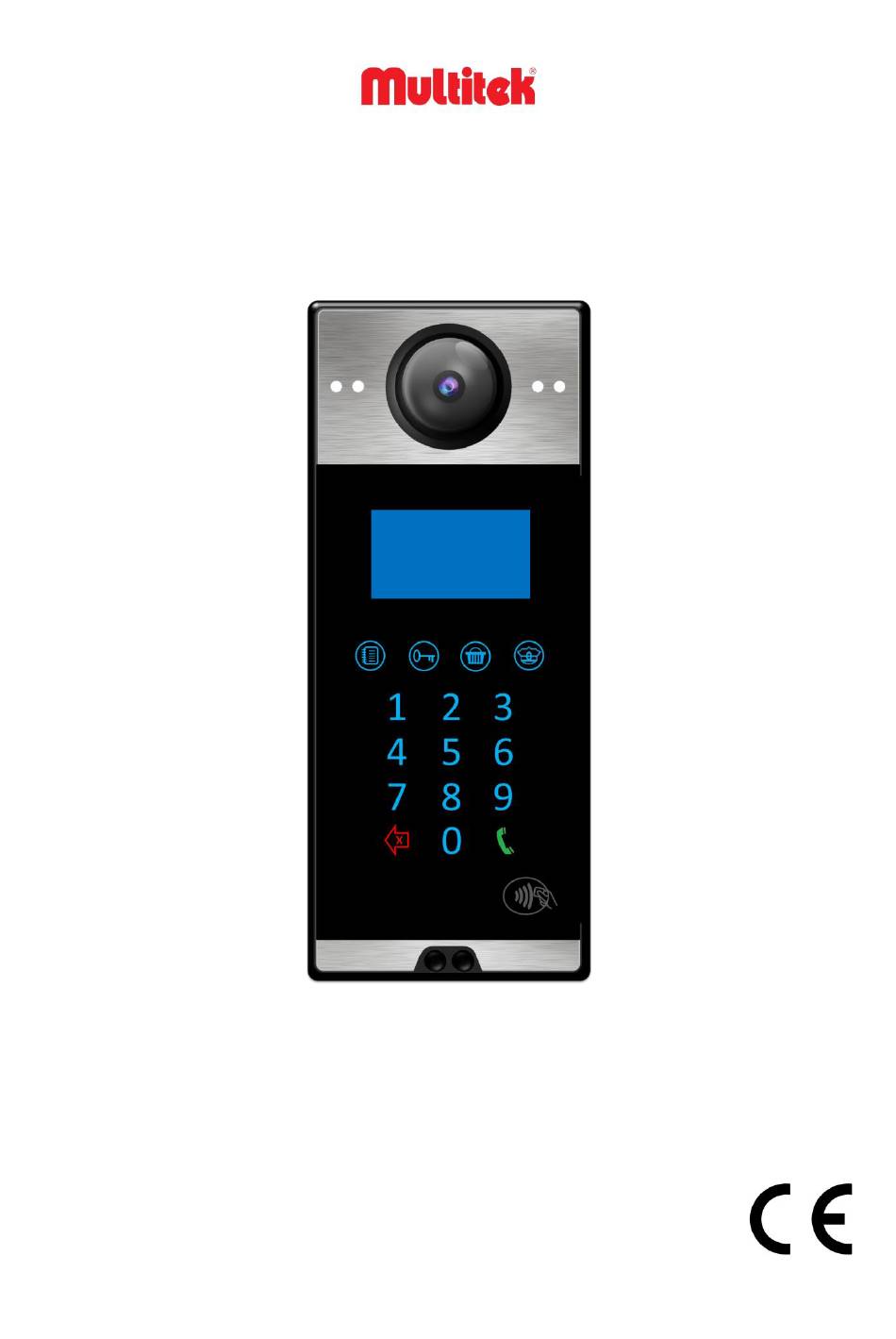

  • Page 1 MB-12 DOOR PANEL USER MANUAL It obeys the rules of AEEE regulations.
  • Page 2 MB-12 DOOR PANEL USER MANUAL Thank you for choosing MB-12 door panel. This user manual was prepared for using the device more efficiently. MB-12 DOOR PANEL HAS WARRANTY FOR 2 YEARS AGAINST MANUFACTURING DEFECTS. Multitek has rights to change the features of the device given in this document prior given any information.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1.FEATURES ............................……..5 2. FRONT VIEW ............................5 3. WALL MOUNT ............................6 4. BACK VIEW ............................7 5. CAMERA AND IMAGE SETTINGS ......................5 5.1 Adjusting the Camera Angle ....................8 6. INSTALLATION CONNECTION AND SOUND SETTINGS ................9 6.1 Preparing the Speaker Volume ................... 9 6.2 Resetting the Door Panel .....................
  • Page 4 SAFETY WARNINGS For your own and the device safety, you should obey the security warnings;  Read the user manual carefully.  Read the safety warnings carefully.  Remarks about Transport, Shipment and Preservation. During transport and shipment keep the product with its case. The case will protect the product against the physical damages.

  • Page 5: Features

    1. SPECIFICATIONS  128 X 64 LCD Display  Dimensions: 309 X 130 X 27 mm  Lightened, Touch keypad  Lighting LED ' s for Night Vision  Proximity Card Reader  Infrared Proximity Sensor  ABS Plastic Body ...

  • Page 6: Wall Mount

    Make the cable connections according to the connection diagram on page 9.  Place the MB-12 panel, the rests at the back of MB-12 upper and lower corners are placed in the blind case with the holder on the holder plastic tabs in the Wall Mounting Apparatus.

  • Page 7: Back View

    4. BACK VIEW CAMERA ANGLE ADJUSTMENT E2ROM PROGRAMMING SOCKET MK-01 MODULE INTERCOM CONNECTION CONNECTION SOCKET SOCKET DOOR AUTOMATIC CONNECTION SOCKET GUARD CONNECTION EXTERNAL CAMERA SOCKET CONNECTION SOCKET SPEAKER RESET VOLUME BUTTON ADJUSTMENT...

  • Page 8: Camera And Image Settings

    5. CAMERA AND IMAGE SETTINGS Adjusting the Camera Angle  change angle camera, loosen screw shown in the "RED" circle.  The camera slot will be circularly movable in all directions.  When you find the right angle, fix the camera slot by tightening the screw again.

  • Page 9: Installation Connection And Sound Settings

    6. INSTALLATION CONNECTION AND AUDIO SETTINGS PROGRAM MK-01 MODULE CONNECTION 1. 24V 2. 24V ENTRANCE 3. GND BUTTON 4. GND 5. S1 CONNECTION 6. S2 7. GND 8. VIDEO DOOR AUTO 11. HAT 12. ZİL CCTV.4 - CCTV.4 + 13. GND CCTV.3 - CCTV.3 + CCTV.2 -...

  • Page 10: Use

    7. USE 7.1 Display Usage While the Door Panel is in standby, information about the use of features appears on the screen. 7.1.1 StandBy Screens While the panel is on hold, the following screens appear in sequence. 1.Screen: 2. Screen: 3.

  • Page 11: Use Of Features

    7.2 Use of Features 7.2.1 Make to Calls by Entering the Apartment Number Press the CALL button after typing the room number you want to call. For example, to call 5 room number; press the CALL. Press the DELETE button to cancel the search. 7.2.2 Make To Calls Form the Phone Book NOTE: To create the phone book, see the page 13.
  • Page 12 When the room you want to call is selected, the room is called by pressing the Button. Press the DELETE button to cancel the call. 7.2.3 Open to External Door with a Password NOTE: To create the phonebook, see page 13. The door is opened by entering 99 + 4 digit password from the external door.

  • Page 13: User And System Features

    7.3 User and System Settings 7.3.1 Create to Door Open Password A special door opening code can be created for each room.  The number of the room that will determine its password is called from the external door panel. For Example;...
  • Page 14 Program: All adjustments and program changes of the device are made through this menu.Press the DELETE button after highlighting the PROGRAM option by using the 2 - 8 keys. You will be asked to enter the PROGRAMMING PASSWORD. NOTE: ALL OPERATIONS ARE MADE THROUGH SETUP MENUS. A "PROGRAMMING PASSWORD"...
  • Page 15 7.3.2.1 Changing the Programming Password The White Arrow indicates the currently selected option. For Up- Down Keys 2 and 8 are used. To confirm the selection CALL is used. While the White Color Arrow is on the “CHANGE PASSWORD” option, press the CALL button.
  • Page 16 7.3.2.2 Changing the Door Panel Number In blocks with more than one Door Panel, the number of each door panel must be defined separately. DOOR NR is set as 1 in Factory Settings. This definition is done through the "DOOR NR" option in the Programming screen. NOTE: For Setting Menus-Programming Screen entry, see “Pages 13-14”.
  • Page 17 7.3.2.3 Entering a Name in the Door Panel Directory In order to use the Door Panel Guide, Name information of the residents must be entered beforehand. This is done through the "ENTER NAMES" option on the Programming screen. NOTE: For Setting Menus-Programming Screen entry, see “Pages 13-14”. Press the CALL button after selecting ENTER NAMES option by using the 2-8 keys.
  • Page 18 If there is a new entry, the Flat Number and Name are entered again. To exit, the DELETE button is pressed on the blank screen. 7.3.2.4 Using the Keypad for Name Entry In the name entry, the key with the letter to be typed is pressed until the desired letter is reached.
  • Page 19 7.3.2.5 Deleting the Door Panel Guide When Door Panel Guide is deleted, the saved Proximity Card Records and Door Open Passwords are not deleted. This process is done through the option "CLEAR LIST" on the Programming screen. NOTE: For Setting Menus-Programming Screen entry, see “Pages 13-14”. Using keys 2-8, scroll to the option to CLEAR LIST and press the CALL button.
  • Page 20 7.3.2.6 Changing the Block Number In systems with more than one Block, the Block Number of the door panels belonging to each block must be defined separately. It is set as BLOCK NR 1 in Factory Settings. This definition is done through the "BLOCK NUMBER" option in the Programming screen.
  • Page 21 7.3.2.7 Changing the Door Unlock Duration Depending on the type of Door Opener used, it may be necessary to change the pulling time of the Door Unlock Duration in the Door Panel. Shrinking Time is set as 1 second in Factory Settings.
  • Page 22 7.3.2.8 Clear Flat Passwords When Door Opening Passwords registered in the Door Panel are deleted, the saved Proximity Card Records and Contacts are not deleted. This operation shows “CLEAR FLAT PASSWORD” option. NOTE: For Setting Menus-Programming Screen entry, see “Pages 13-14”. By using the 2-8 keys, highlight the CLEAR FLAT PASSWORD option and press the CALL button.
  • Page 23 7.3.2.9 Entering the Total Blocks in the System In systems with more than one Block, the Total Blocks in the system must be entered in each door panel. TOTAL BLOCKS is set to 1 in Factory Settings. This definition is done through the "TOTAL BLOCKS" option on the programming screen. NOTE: For Setting Menus-Programming Screen entry, see “Pages13-14”.
  • Page 24 7.3.2.10 Proximity Card Transactions Proximity Cards to be used to open the door automatic are introduced on the Door Panel. Identification of the cards, deletion of them individually or all of them can be done in the PROXIMITY CARD OPERATIONS menu. The PROXIMITY CARD OPERATIONS menu can be accessed on the Programming Screen;...
  • Page 25 Register Proximity Tags You can save the Proximity cards to be used to turn on the Automatic Door to the Door Panel according to their Apartment Numbers. This process is done with the "REGISTER A TAG" option in the Proximity Card Transactions menu.
  • Page 26 Move the Proximity card closer to the card reader. “Page 5” The message OK appears when the card is registered. Then we are asked to read the other card. To end the process when all the cards belonging to the relevant apartment are recorded as "maximum 5".
  • Page 27 Delete Tags of the Flat You can delete saved proximity cards according to their Apartment Numbers. This process is done with the option "DELETE TAGS" in the Proximity Card Transactions menu. NOTE: For Setting Menus-Programming Screen-Proximity Card Operations entry, see “Pages 13-14-24”.
  • Page 28 Delete All Registered Proximity Cards You can delete all saved proximity cards in one go. This process is done with the "DELETE ALL" option in the Proximity Card Transactions menu. NOTE: For Setting Menus-Programming Screen-Proximity Card Operations entry, see “Pages 13-14-24”. Using the 2- 8 keys, scroll to the option to DELETE ALL and press the CALL button.
  • Page 29 Resetting the Panel When Programming Password is Forgotten When the Program Password used to enter the setting menus is forgotten, you need to reset the Door Panel. RESET Process • Door Panel supply voltage must be connected while performing RESET operation. •...

  • Page 30: Assign Of Number Of Rooms

    The numbering of MULTIBUS is 0 (janitor),1-9,10-99,100-255 The visitor dials the room number and then press CALL button for the digital door panels DIP SWITCH GROUP or just press the room button to call the room. ROOM NUMBERING The catalogue number of the room is set by the switches located at the back side of the device.
