SOFTWARE INSTALLATION

Before using the EVAL-ADAQ23876FMCZ or EVAL-
ADAQ23878FMCZ, download and install the
Evaluation (ACE) software from the
load the ADAQ23876 or ADAQ23878
ADAQ23876FMCZ or EVAL-ADAQ23878FMCZ product page, re-
spectively, or from the plugin manager in ACE.
ACE is a desktop software application allowing the evaluation and
control of multiple evaluation systems across the Analog Devices,
Inc., product portfolio. The installation process consists of the ACE
software installation and the SDP-H1
To ensure that the evaluation system is properly recognized when
it is connected to the PC, install the ACE software and the
SDP-H1 driver before connecting the EVAL-ADAQ23876FMCZ or
EVAL-ADAQ23878FMCZ and the SDP-H1 to the USB port of the
PC.

INSTALLING THE ACE SOFTWARE

To install the ACE software, take the following steps:
1. Download the ACE software to a Windows-based PC.
2. Double click the ACEInstall.exe file to begin the installation.
By default, the software is saved to the following location:
C:\Program Files (x86)\Analog Devices\ACE.
3. A dialog box opens asking for permission to allow the program
to make changes to the PC. Click Yes to begin the installation
process.
4. In the ACE Setup window, click Next > to continue the installa-
tion, as shown in Figure 8.

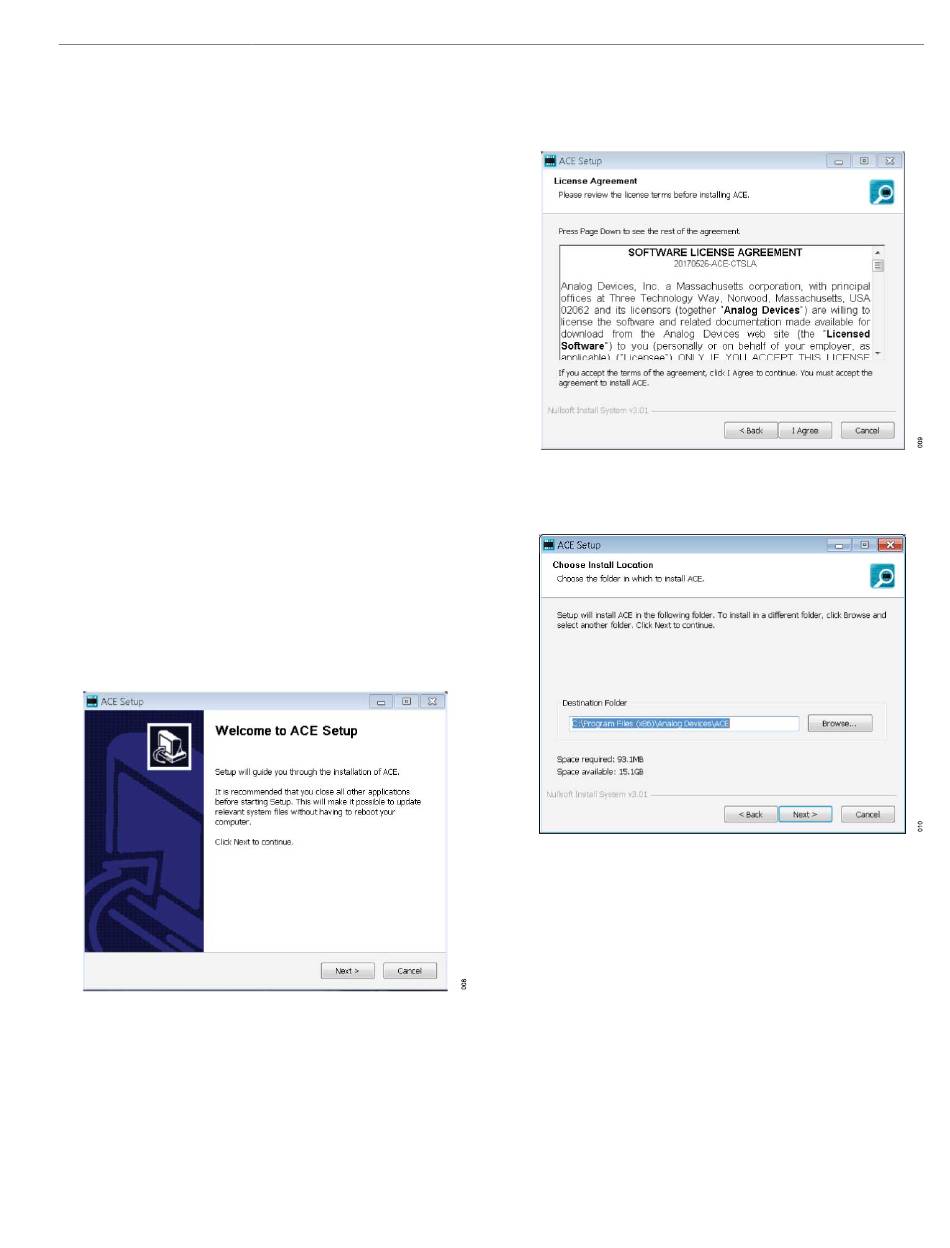

Figure 8. Evaluation Software Install Confirmation
analog.com
EVAL-ADAQ23876/EVAL-ADAQ23878
Analysis, Control,
ACE software page. Down-
ACE plugin from the EVAL-
driver installation.
5. Read the software license agreement and click I Agree (see
Figure 9).
Figure 9. License Agreement
6. Click Browse... to choose the installation location and then click
Next (see Figure 10).
Figure 10. Choose Installation Location
7. Select the PreRequisites checkbox to include the installation of
the SDP-H1 driver. Click Install (see Figure 11).
Rev. A | 7 of 29
