User Guide
EVAL-ADAQ23876/EVAL-ADAQ23878
EVALUATION BOARD SCHEMATICS AND SILKSCREENS

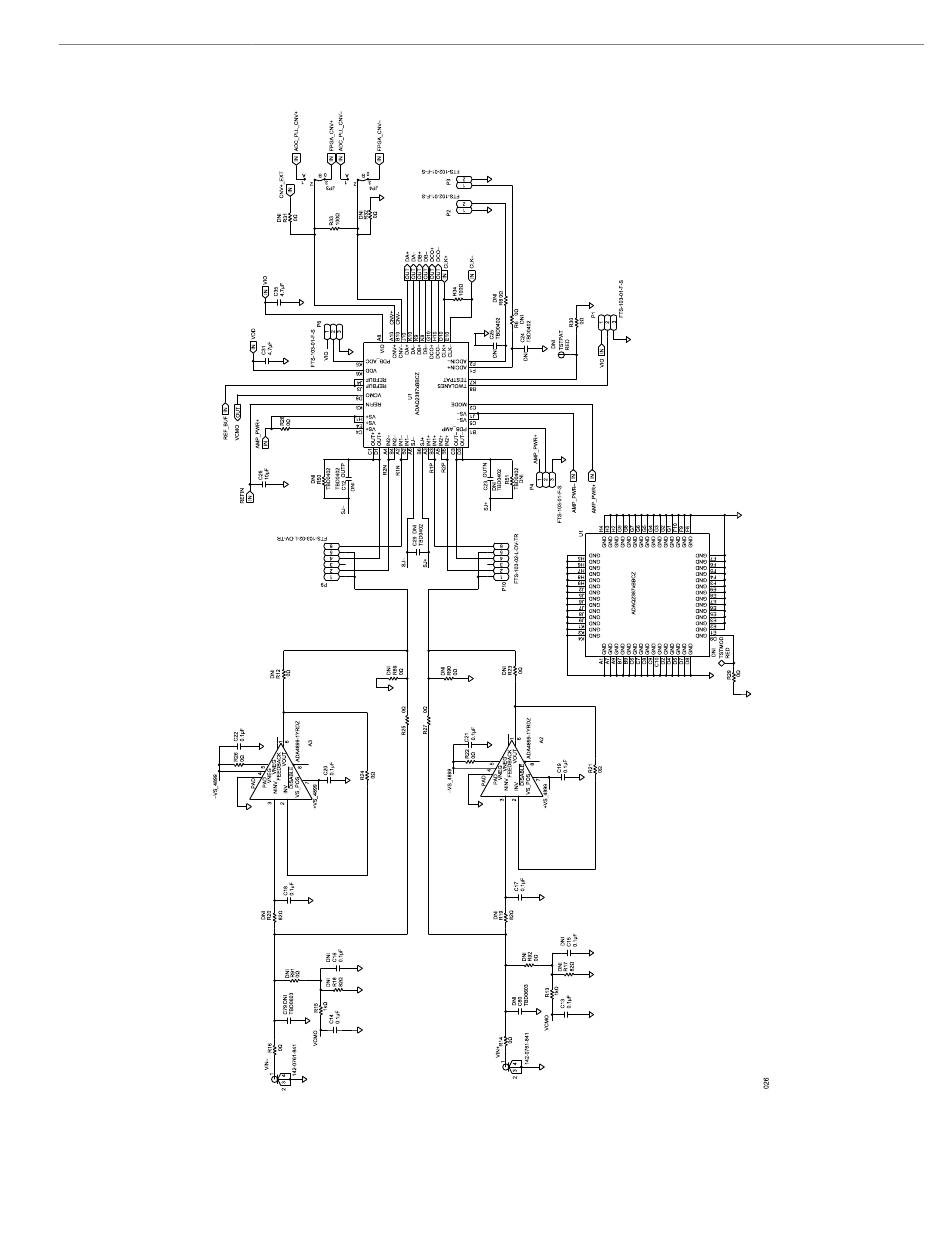

Figure 26. EVAL-ADAQ23876FMCZ and EVAL-ADAQ23878FMCZ Board Schematic, Input Signal Path
analog.com
Rev. A | 20 of 29
