SOFTWARE OPERATION

LAUNCHING THE SOFTWARE

When the EVAL-ADAQ23876FMCZ or EVAL-ADAQ23878FMCZ
and SDP-H1 are properly connected to the PC, launch the
software by taking the following steps:
1. From the Start menu, select All Programs > Analog Devices
> ACE > ACE.exe to open the ACE software main shown
in Figure 15. The ADAQ23876 Board or ADAQ23878 Board
icon appears in the Attached Hardware section, depending
on which evaluation board is connected. Note that
15 through Figure 23 show the ACE software with the EVAL-
ADAQ23878FMCZ connected.
2. If the EVAL-ADAQ23876FMCZ or EVAL-ADAQ23878FMCZ
is not connected to the USB port via the SDP-H1 when
the software is launched, the ADAQ23876 Board or
analog.com
EVAL-ADAQ23876/EVAL-ADAQ23878
ADAQ23878 Board icon does not appear in the Attached
Hardware section. Connect the EVAL-ADAQ23876FMCZ or
EVAL-ADAQ23878FMCZ and SDP-H1 to the USB port of the
ACE
PC and wait a few seconds, then continue following these
instructions.
3. Double click the ADAQ23876 Board or ADAQ23878 Board
icon to open the board view window.
4. Double click the ADAQ23876 or ADAQ23878 chip icon in the
board view window to open the chip view window shown in
Figure
Figure
5. Click Software Defaults and then click Apply Changes to
apply the default settings to the
6. Click Proceed to Analysis in the chip view window to open the
analysis view window shown in

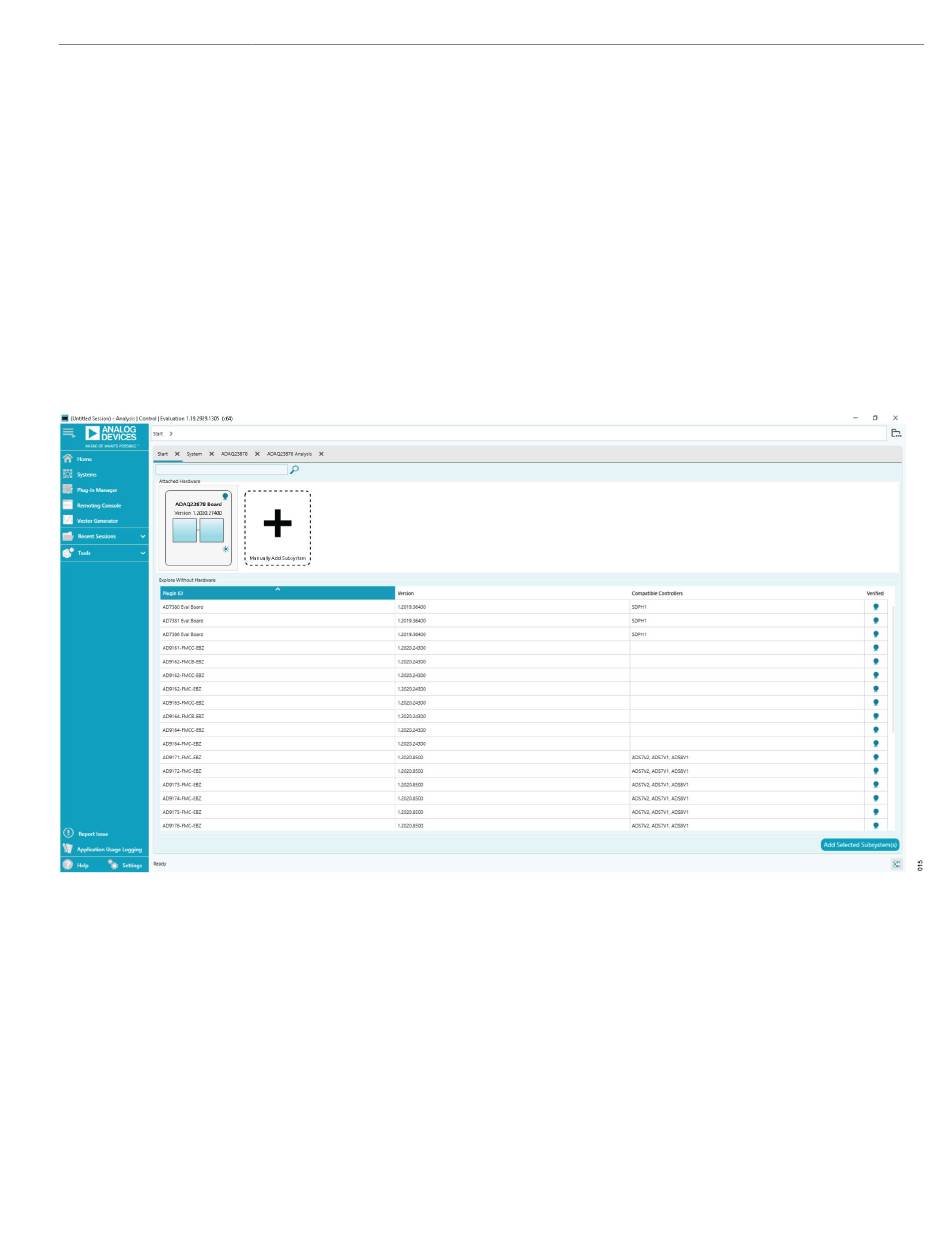

Figure 15. ACE Software Main Window
16.
ADAQ23876
Figure
or ADAQ23878.
17.
Rev. A | 9 of 29
