INL Tab and DNL Tab
The INL tab and DNL tab display linearity analysis. INL is the
deviation of each individual code from a line drawn from negative
full scale through positive full scale. The point used as negative
full scale occurs ½ LSB before the first code transition. Positive full
scale is defined as a level 1½ LSB beyond the last code transition.
The deviation is measured from the middle of each code to the true
straight line.
In an ideal ADC, code transitions are 1 LSB apart. DNL is the
maximum deviation from this ideal value. DNL is often specified in
terms of resolution for which no missing codes are guaranteed.
analog.com
EVAL-ADAQ23876/EVAL-ADAQ23878

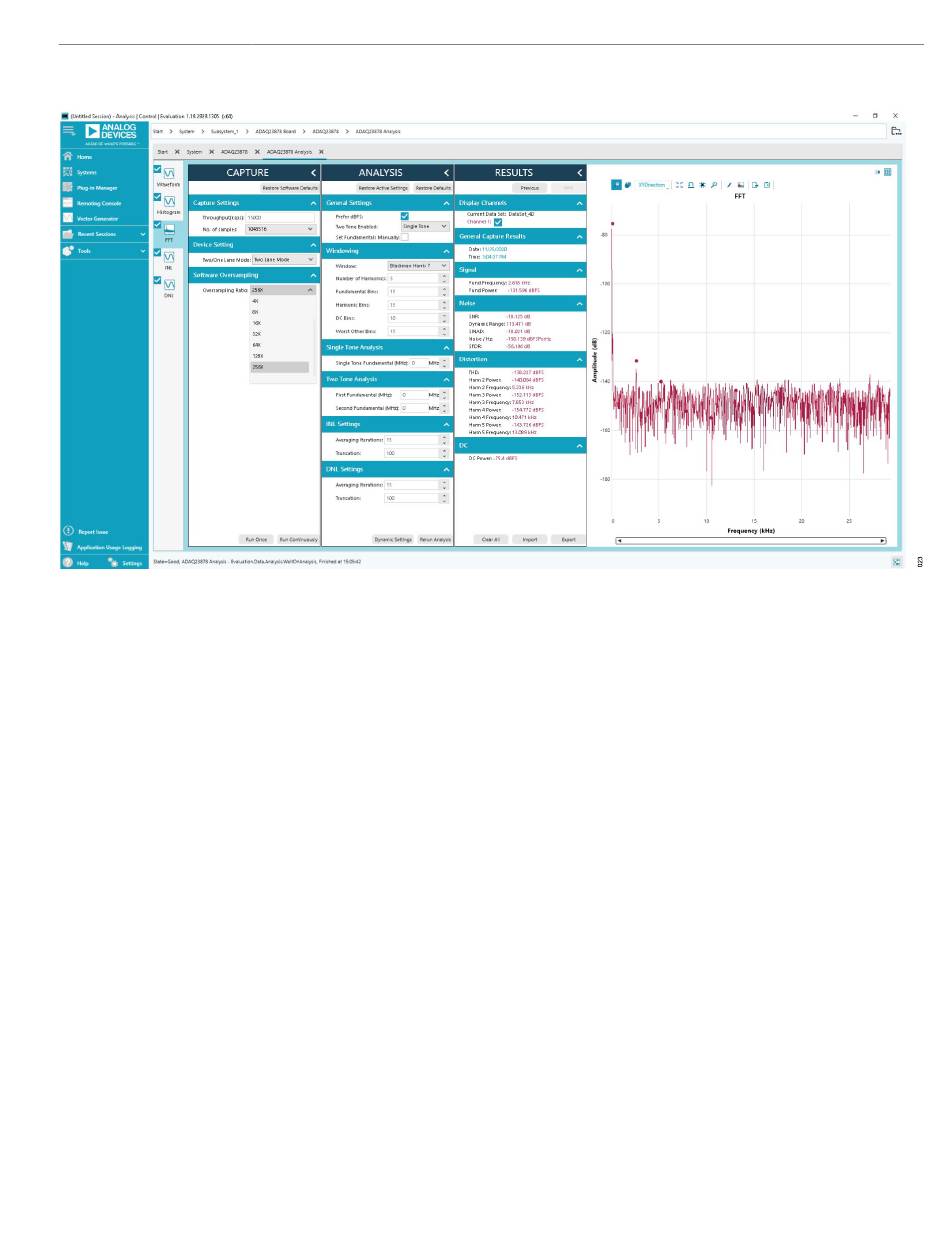

Figure 21. FFT with Oversampling (OSR) of 256×, Inputs Shorted
To perform a linearity test, apply a sinusoidal signal with 0.5
dB above full scale to the EVAL-ADAQ23876FMCZ or EVAL-
ADAQ23878FMCZ at the VIN+ and VIN− SMA inputs. Set the
number of hits per code and adjust to the desired accuracy. Using
a large number of hits per code results in a significant test time.
Figure 22 and Figure 23 display captured data that includes the
±INL and ±DNL positions.
