Hardware Installations and Upgrades

Installing and Removing the Intel

Module 4
Installing the Intel
Locate the RMM4 Lite connector next to Riser Slot 1, carefully pickup the Intel
module, match the alignment pin of the module and the connector on server board, then press to
install.
Install the Intel
1. Push out and remove the metal cover on the chassis where the NIC RJ-45 receptacle will align
(see letter "A").
2. Position the module over the server board, fit the front of the module into the back panel slot,
then attach the module to the server board connector (see letter "B").
3. Secure the module with the two screws as shown (see letter "C").
Removing the Intel
Pull up the RMM4 Lite module to remove it from the mother board.
34
®
RMM4 Lite

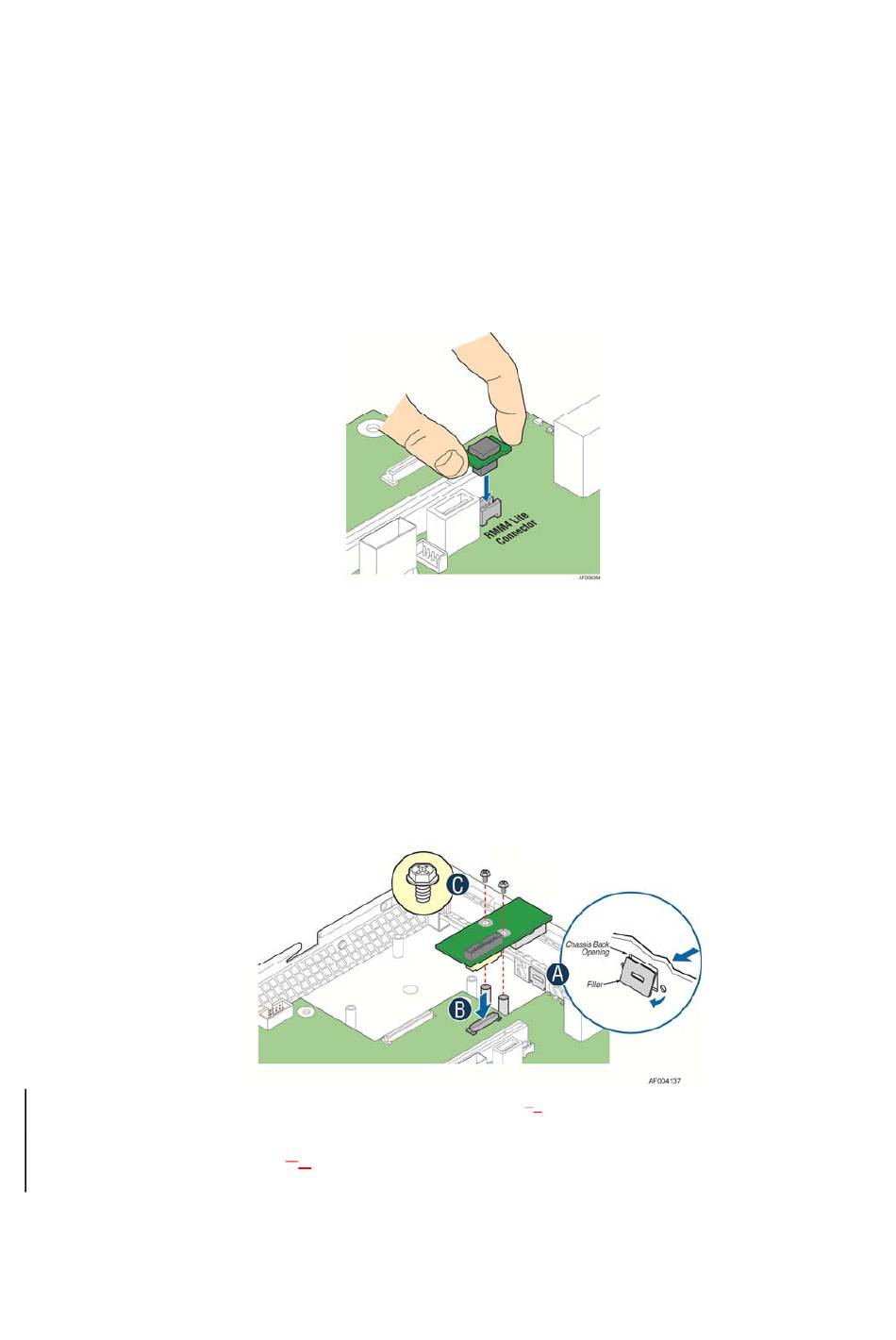

Figure 56. Installing the Intel
®
RMM4 NIC

Figure 57. Installing the Intel

®®
RMM4 Lite
®
Remote Management
®
RMM4 Lite
®®
RMM4 NIC
®®
Intel Server System R1000GZ/GL Service Guide
®
