ClearOne Tabletop Controller User Manual page 12

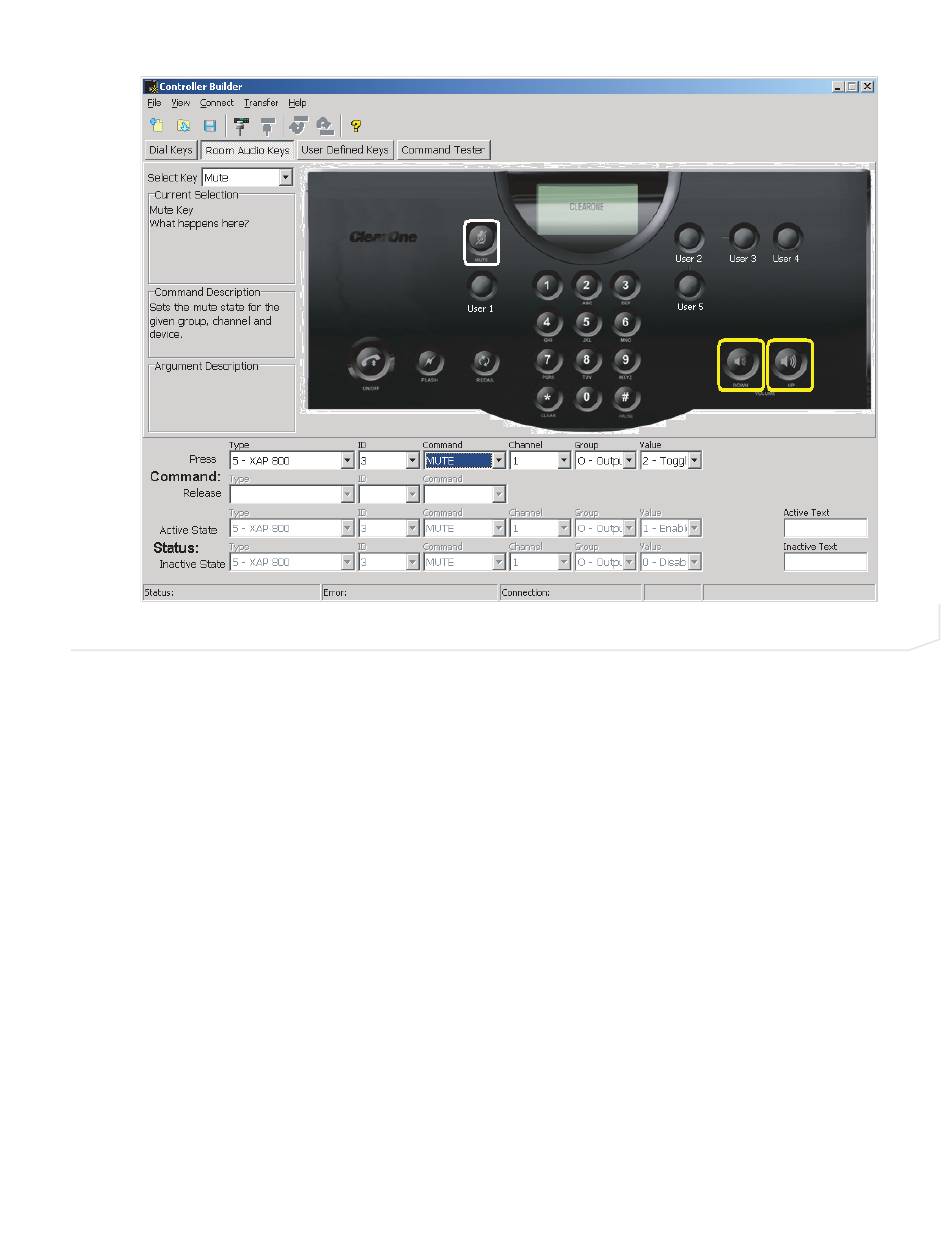

Customizing room audio keys: mute key with mute command
FIGURE 2.8
However, if you choose the MACRO command, then you will be able to not only select the device, DID,
and ID of the macro as assigned by XAP , but you will also be able to indicate what you want to occur when
that macro runs, or when the key is pressed. You will be able to specify the result you want as shown in
the Active S S tate in the Status E E ditor--you can choose to monitor the response of a MUTE command or no
command (NONE) for a particular device, DID, channel, group, and value (see Figure 2.9).
