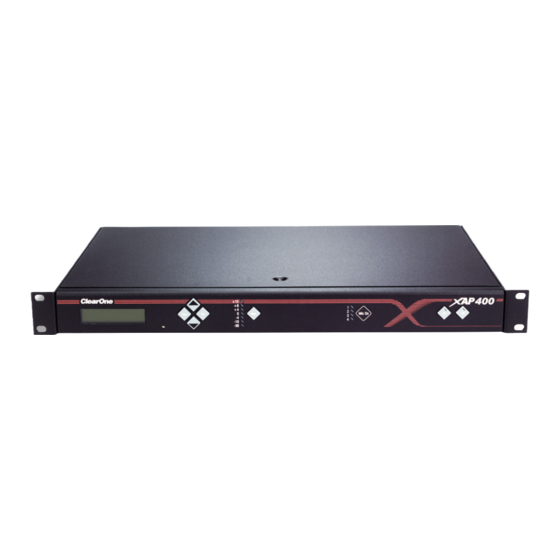

XAP 400 Audio Conferencing System
Installation & Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XAP 400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ClearOne XAP 400

Summary of Contents for ClearOne XAP 400

  • Page 1 Audio Products XAP 400 Audio Conferencing System Installation & Operation Manual...
  • Page 2 XAP™ 400 Audio Conferencing System Installation & Operation Manual...

  • Page 3: Operation Manual

    © 2002 ClearOne Communications, Inc. All rights reserved. No part of this document may be reproduced in any form or by any means without written permission from ClearOne Communications. Printed in the United States of America. ClearOne Communications reserves specific privileges.

  • Page 4: Table Of Contents

    XAP 400 Installation and Operation Manual Table of Contents CHAPTER 1: Introduction ......1 Features ..........1 Professional Services Group .
  • Page 5 Creating a new site ........23 Adding a XAP 400 .
  • Page 6 Using the XAP 400 ........
  • Page 7 Serial commands ........90 Command strings .

  • Page 8: Chapter 1: Introduction

    Gentner Distributed Echo Cancellation—four microphone/line echo cancellers remove echo in even the most difficult environments. • EC Reference summing enables the XAP 400 to reference various signals for an echo cancellation reference without requiring a dedicated output. • Noise cancellation reduces background noise such as that caused by fans or air conditioning.

  • Page 9: Professional Services Group

    We welcome and encourage your comments so we can continue to improve our products and serve your needs. ClearOne Communications ~ 1825 Research Way ~ Salt Lake City, Utah 84119 Technical Support Telephone: 1.800.283.5936(USA) or 1.801.974.3760...

  • Page 10: Product Registration

    Introduction ~ Unpacking Product registration Please register your XAP 400 online by visiting ClearOne Technical Support at www.clearone.com. When your product is properly registered, ClearOne Communications is better able to serve you should you require technical assistance. Registration information is also used to notify you of upgrades and new product information.

  • Page 11: Controls And Connections

    E. Mic On LED. These LEDs indicate microphone gate status. On LED/button. The bicolor LED on the button illuminates green when the hybrid is on. The On button connects the XAP 400 to the telephone line and automatically adapts the hybrid to the line. Pressing and holding the On button for more than a half-second while the hybrid is active will readapt the hybrid to the telephone line.

  • Page 12: Rear Panel

    80 feet between each connected XAP 400/800 or PSR1212. RS-232. This female DB9 serial port connects the XAP 400 to a PC, modem, or other custom remote controller. For serial commands, see page 102.

  • Page 13: Networking

    Power is supplied through the RS-485 ports to the remote Control Panels from the XAP 400. This power is limited to a total of 300mA at 15 volts for each connector. Over-current protection is provided on the +15V pins to prevent damage in the event of shorting.

  • Page 14: Operational Requirements

    NOM count is not required. • PA Adapt/Acoustic Echo Cancellation Reference buses. These buses allow an input from a XAP 400 to reference an output on another linked XAP 400/800. See PA Adapt and AEC Reference on page 33 for more information.

  • Page 15: Equipment Placement

    You can also purchase side panels for desktop placement. See Appendix D for a list of accessories. Environmental The XAP 400 can be safely operated in a room with varying temperatures between 32 °F/0 °C and 110 °F/43 °C. Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...

  • Page 16: Chapter 2: Installation

    CHAPTER 2: Installation The XAP 400 is designed for easy installation and setup. All connections are made through rear-panel connectors. This chapter provides instructions on installing the units and making initial connections, creating an expansion bus (E-bus) network, assigning device ID numbers, selecting the mixer mode, and using the LCD menu.

  • Page 17: To Connect The Unit

    Plug in the XAP 400 to complete the installation. The power output [A] will operate at any level between 100–240VAC and 50–60Hz. If you are installing only one XAP 400 and are not connecting it to any other XAP or PSR1212 units, you have completed the hardware installation.

  • Page 18: Networking Units

    XAP 800 or XAP 400. For example, if the cable from the XAP 400 to the XAP TH2 is 50 feet and the cable from the XAP TH2 to the XAP 800 is 50 feet, then the total length between the XAP 400 and XAP 800 is 100 feet which is beyond the maximum 80-foot limit.

  • Page 19: Device Ids

    Once your expansion bus connections are made (and if you have more than one unit on the E-Bus network, XAP 400 at a site), you need to set up a unique expansion bus device ID number—a the Meter LED “+12” will flash network address—for each XAP 400 on the network.

  • Page 20: Lcd Programming

    Installation ~ LCD Programming LCD Programming The XAP 400’s front panel is intuitive to operate, thanks to its simple interface: a G-Ware software 2x16 character LCD, menu buttons, and a peak-level LED bar meter. Although most required complete of the XAP 400’s features are programmed with G-Ware software (see page 23), the system setup.

  • Page 21: System Menu

    The Select Preset menu item allows for one of 32 preprogrammed presets to be selected for XAP 400 use. To select a preset, scroll through the numbered presets (1-32) until the desired preset is visible, then press Enter to run the preset.

  • Page 22: Rs-232 Menu

    26 for more information. Device ID The XAP 400’s device ID is set from this menu. There are eight device ID selections to choose from (0–7). Select the network position you want to use. Within a single site, you must assign different device ID numbers for each XAP 400 unit. See Device IDs, page 12.

  • Page 23: Meter Menu

    Flow Control (hardware) ClearOne recommends that you leave Flow Control The XAP 400 uses the RTS and CTS pins on the RS-232 port to regulate the enabled. transmission and reception of data. You can enable or disable flow control on the front panel of unit and select the flow control type in the Site Properties window of G-Ware (see page 23).
  • Page 24 This submenu allows monitoring of the ERLE meters on the XAP 400. Select the meter you want to monitor and press Enter. Telco RX This submenu allows you to monitor the Telco RX (Receive) meter on the XAP 400. Press Enter to enable your selection. Telco TX This submenu allows you to monitor the Telco TX (Transmit) meter on the XAP 400.

  • Page 25: Inputs Menu

    Installation ~ LCD Programming TERLE This submenu allows you to monitor the TERLE meter on the XAP 400. Press Enter to enable your selection. Default Meter This submenu determines what is displayed on the LED meter when a meter is not specifically selected elsewhere in the Meter menu.
  • Page 26 Installation ~ LCD programming Post-processing Meter Telco Transmit Output 1 Output 2 Output 3 Output 4 Output 5 Output 6 Output 7 Output 8 Speaker Out Processing outputs are looped back into the matrix. Post-gain Post-gain Post-gain Post-gain Post-gain Post-gain Post-gain Post-gain Post-gain...
  • Page 27 Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...

  • Page 28: Chapter 3: System Configuration

    Configuration ClearOne’s G-Ware software provides an easy interface for configuring and controlling your XAP 400. While some configuration can be done using the front panel LCD menus, G-Ware is required to complete the custom configuration of your audio conferencing system. If you are using the default settings, no configuration is necessary.

  • Page 29: Creating Floppy Disk Copies

    Insert the Audio and Video Products CD into the CD-ROM drive. If the Autorun feature is enabled on the PC, the ClearOne Welcome window opens. Click the Software tab and select G-Ware. If the Autorun window does not open, open the Windows Start menu and choose Run.

  • Page 30: Site Setup

    Click the Comm tab. Select the COM port, baud rate, and flow control you control using the XAP want to use. ClearOne recommends that you leave Flow Control set to front panel controls. See Hardware. The Software setting is not supported by XAP/PSR units and is page 16.

  • Page 31: Adding A Xap 400

    ~ Site Setup Adding a XAP 400 You can add a XAP 400(s) to your site file by connecting to your site and using G-Ware to automatically create icons for the detected units. Or, you can work offline and manually add the unit(s) to the site file and connect to the site at a later time.

  • Page 32: Configuring Unit Properties

    Site Properties window (see page 23). Set the Serial Echo (default On) and the Serial Mode (default Text). Serial Echo echos back commands sent over the XAP 400 network. The serial mode determines the format in which the commands return—text or binary. The mode defaults to Binary when G-Ware is connected and to Text when dis- connected.
  • Page 33 System Configuration ~ Site Setup If a modem is connected to the XAP 400 unit, select Use Modem and enter the initialization string. Click OK; the XAP 400 will initialize the modem. 10. Click the Security tab. Create a modem password. The password will be required before control of the system is allowed.

  • Page 34: G-Ware Screens

    The XAP 400 Flow Screen has eight icons and buttons at the bottom of the Flow Screen which open the following unit programs: Dial, Telco Config, Remote Builder, Gating Control, Preset Mode, Macro Editor, Telco Meters, and GPIO Builder.

  • Page 35: Status Bar

    System Configuration ~ G-Ware Screens Copying and pasting settings G-Ware has shortcut menus which appear when you right-click a selection or program window in G-Ware. These shortcut menus provide quick access to options such as Print, Copy, and Paste that pertain only to that selection or screen region. Figure 3.17.

  • Page 36: Matrix Screen

    System Configuration ~ G-Ware Screens Matrix Screen The Matrix Screen is used to route audio to one or more destinations (outputs, expansion bus, or processing). Any number of connections to outputs can be made in the matrix. The Matrix Screen can also be used to access the Input, Output, Telco, and Processing configuration windows by clicking on the buttons along the top and left side of the routing matrix.

  • Page 37: Audio Routing

    Expansion bus O–Z routing routing matrix. Audio on any XAP unit in the E-bus network can be placed on the bus or taken off the bus and routed to any destination within the unit. The XAP 400 has 12 digital mix-minus buses: •...

  • Page 38: Matrix Report

    System Configuration ~ Audio Routing Click Close to exit. Note that the level control you have selected for the cross point is indicated numerically in the matrix. The Cross Point shortcut menu also allows you to copy and paste the current Cross Point configuration, including attenuation, to other cross points.

  • Page 39: Inputs And Outputs

    Gentner D.E.C. To use the mute button on a microphone, contact ClearOne Technical Services. Figure 3.26. Inputs 1–4 configuration window To select an input channel, click a blank area in the input pane. If you click on the input label, a secondary window will open allowing you to rename the input.
  • Page 40 P Pwr (Phantom Power) Phantom Power toggles the phantom power on and off. Phantom power is an auxiliary power source to power certain types of microphones. The XAP 400’s phantom power voltage is 24VDC. Default is On. AEC opens the Acoustic Echo Canceller window. To enable the acoustic echo canceller, click Enabled, then select the reference.
  • Page 41 System Configuration ~ Inputs and Outputs If you select a virtual echo cancellation reference, the Virtual Reference window will open. You can also open this window from the G-Ware toolbar. Figure 3.30. Virtual Reference toolbar button Figure 3.31. Virtual Reference window. Use this window to select which signals will be used by the four Virtual Reference points.
  • Page 42 System Configuration ~ Inputs and Outputs Non-linear Processing (NLP) The Non-linear Processing (NLP) feature increases the power of echo cancellation for difficult acoustical environments. NLP features four settings: Soft (6dB), Medium (12dB), Aggressive (18dB), and Off. Use NLP with care; corresponding trade-offs can include suppression and half-duplex operation.
  • Page 43 Q, or Quality factor. Q, or Quality factor, selects the ratio of the center frequency divided by the bandwidth. Q reflects an inverse relationship to the bandwidth, and adjusts from .02:1 to 40:1 on the XAP 400. Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...
  • Page 44 System Configuration ~ Inputs and Outputs Bandwidth. Bandwidth establishes the difference between the upper and lower points of a filter’s audio passband. Bypass. The Bypass box, when selected, bypasses the selected filter. Phase. Phase generates—on the graph—the phase relationship of the graphed frequency response.
  • Page 45 ~ Inputs and Outputs Gate The XAP 400 has unique gating parameters which control microphone activation. The Gate button on the selected input in Inputs 1–4 window opens the Gate configuration window where you can establish the gating parameters for the input.
  • Page 46 System Configuration ~ Inputs and Outputs Figure 3.36. XAP 400 automixing gate functions Gate Ratio Gate Ratio specifies how much louder the audio level must be above the ambient level before the channel gates on. The gate ratio range is from 0 to 50dB. Default is 15dB.
  • Page 47 System Configuration ~ Inputs and Outputs PA Adapt and AEC Reference The PA Adapt Reference and AEC Reference are the When using either the PA Adaptive mode (see page 38) or Acoustic Echo same for each channel. If Cancellation (see page 33), the output that carries this information, i.e. the you change the PA Adapt Reference reference output, must be defined.
  • Page 48 The XAP 400 features four internal gating groups (Internal 1–4) and four global gating groups across the expansion bus (Global A–D). Microphones can only be used in one gating group at a time.
  • Page 49 ~ Inputs and Outputs Leave 1st Mic Priority selected (default) to enable this feature; otherwise, clear the selection to disable it. ClearOne recommends leaving this setting on. This setting helps maintain maximum audio intelligibility by allowing only one mic to gate on to a participant’s voice. 1st Mic Priority allows more than one microphone to be activated at same time—it simply restricts mics...
  • Page 50 Input meter, just begins to enter the red (clipping) zone, then reduce the gain slightly until peaks no longer climb into the red zone. This setting will ensure that the XAP 400 maximizes the signal-to-noise ratio without clipping the signal.

  • Page 51: Inputs 5-8

    ~ Inputs and Outputs Inputs 5–8 The XAP 400 supports 4 line level only inputs for auxiliary audio sources such as video codecs and CD players. To open the Inputs 5–8 configuration window, click the Inputs 5–8 button on the Flow Screen. The In 5–8 button on the Matrix Screen will also open this window.
  • Page 52 Post Gain meter, just begins to enter the red (clipping) zone, then reduce the gain slightly until peaks no longer climb into the red zone. This setting will ensure that the XAP 400 maximizes the signal-to-noise ratio without clipping the signal.

  • Page 53: Outputs 1-9

    NOM (constant gain) maintains a constant output level as inputs routed to the output are gated on and off. The XAP 400 reduces the output gain (at the output) for mics based on the number of mics gated on and routed to that output. When using NOM...
  • Page 54 Level meter, just begins to enter the red (clipping) zone, then reduce the gain slightly until peaks no longer climb into the red zone. This setting will ensure that the XAP 400 maximizes the signal-to-noise ratio without clipping the signal.

  • Page 55: Expansion Buses

    System Configuration ~ Expansion Buses Expansion Buses From Expansion Bus O–Z Routing of audio to the expansion buses is done in Click the From Expansion Bus O–Z button on the Flow Screen to open the From the Matrix Screen. See Expansion Bus Labels window.

  • Page 56: Processing

    Processing Processing A–D There are four processing blocks in the XAP 400, each with filters, compressors, and delay to provide pinpoint audio configurations. To open the Processing configuration window, click the Processing A–D button on the Flow Screen. The To and From Processing buttons on the Matrix Screen will also open this window.
  • Page 57 A given compressor group must be configured for a single XAP 400 unit; a group cannot use compressors from multiple XAP 400 units.
  • Page 58 System Configuration ~ Processing Ratio Ratio changes the rate of compression applied to the input signal as the signal exceeds the threshold level. The range is 1:1 to 1:20dB. Default is 1:1. Attack Attack determines how quickly compression is enabled. It is calibrated in milliseconds.
  • Page 59 System Configuration ~ Processing The frequency response and phase vs. frequency of the total transfer function of all filters is displayed in the window. Each filter can be disabled without affecting the filter settings. All filters can also be disabled using a single command.
  • Page 60 System Configuration ~ Processing Figure 3.56. Low/Mid/High Loudspeaker Driver configuration Refer to the figure above. Note that as you create filters across several processing channels, you can observe their crossover points and general shape of the frequency response. In this case, several Linkwitz-Riley filters are being created across three processing channels to establish a balanced frequency response from low-frequency, midrange, and high-frequency transducers.
  • Page 61 Other types of delay to consider when establishing delay parameters are delays which occur naturally as a result of processing operations within the XAP 400. Propagation delay is an example. This delay is caused by operations such as the conversion of the signal between analog and digital formats.

  • Page 62: Telco Setup

    System Configuration ~ Telco Setup Telco Setup The XAP 400 has a built-in telephone interface that may be configured to meet the requirements of different installations. The default settings will work for most installations. To configure telco settings Figure 3.59. Telco Config icon on the Click the Telco Config button on the XAP 400 Flow Screen.
  • Page 63 System Configuration ~ Telco Setup Feature Description Receive Reduction Auto Answer Receive ALC Edit Speed Dial Hook Flash Duration Telco Adaptation Receive Boost Auto Disconnect Loop Drop + Call Progression Call Progression Loop DTMF Level Dial Tone Level Audible Hook Indication Audible Ring Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...

  • Page 64: Telco Transmit And Receive

    NOM (constant gain) maintains a constant gain level as inputs routed to the output are gated on and off. The XAP 400 reduces the output level for mics based on the number of mics gated on and routed to that output. When using NOM over the expansion bus, only the first four audio channels (O, P , Q, and R) support passing NOM information.

  • Page 65: Telco Receive

    System Configuration ~ Telco Transmit and Receive Telco Receive To open the Telco Receive configuration window, click the Telco Receive button on the Flow Screen. The R button on the Matrix Screen will also open this window. Mute Mute mutes the audio being received from the phone line. The light on the button illuminates red when Mute is activated.

  • Page 66: Chapter 4: Advanced Configuration

    You can change every unit parameter or a select few depending on your room needs. XAP 400 presets are unique in the sense that they operate independently of other presets in the unit. When a preset is run, only the selected inputs/outputs are changed—all other settings in other presets remain...
  • Page 67 Advanced Configuration ~ Presets Figure 4.2. Preset Mode Matrix Screen The Matrix Screen in the Preset Mode is very similar to the Matrix Screen in Configuration Mode. All Input, Output, Processing, and Telco configuration windows can be accessed by clicking on their respective buttons. You can also create custom labels by clicking on the current labels.
  • Page 68 Remote Assignment. This opens the Remote Builder window. With the Remote builder, you can configure the XAP IR Remote Control and the ClearOne Control Panels. The Use in Preset selection box is available only when you open the Remote Builder from the Preset Mode and allows you to create customized control for the current preset.
  • Page 69 Advanced Configuration ~ Presets Virtual Reference. The Virtual Reference button opens the preset Virtual Reference window. Using the Virtual Reference window, you can select which signals will be used by the four Virtual Reference points in this preset configuration. The To enable Acoustic Echo only input rows which will be shown in this window are the input rows which are Cancellation or to change...
  • Page 70 Advanced Configuration ~ Presets To create a preset From the Preset Selection list, select the number of the preset you will be configuring. Enter a description of the preset in the Preset Description box. If you want to password protect this preset, click Protected. See page 26 for information on creating the preset password.

  • Page 71: Running Presets

    ~ Presets Running presets Presets can be run from G-Ware or the front panel controls on the XAP 400. You can also program external control devices (such as AMX or Crestron, ClearOne Control Panels, XAP IR Remote, and GPIO devices) or use macros to run presets.
  • Page 72 Advanced Configuration ~ Presets Figure 4.9. Assigning a state to a preset command in the Macro Editor If a preset is flagged as “On,” nothing will happen when the preset is executed again because the system knows it has already been run. This prevents any manual adjustments that are made during the course of the meeting (gain, muting, etc.) from being lost.
  • Page 73 Advanced Configuration ~ Presets The four macros (one for each configuration) are set up as follows: When the room is in Configuration 1, running the Configuration 2 macro will change the presets to the following states: • P1 does not change because the flag is already set (1) •...

  • Page 74: Macros

    See pages 105-106 for a list of commands which can be used in macros. The XAP 400 is designed to support up to 255 macros, with an average of 150 command lines each. In the unlikely event that you exceed G-Ware’s capacity, you will be notified with a warning that indicates the command line at which memory is exceeded.
  • Page 75 Advanced Configuration ~ Macros To create a macro using Macro Editor Click the Macro Editor button in the G-Ware toolbar to open the Macro Editor. Figure 4.14. Macro Editor button Figure 4.15. Macro Editor window Select the Macro (from 1 to 255) you are creating from the Macro list. Numbers that are already assigned to macros will be marked with an asterisk.

  • Page 76: Editing Macros

    Advanced Configuration ~ Macros Click Add to place the command into the macro. The command line now appears in the command line table. You can now create another command line for the macro or save the completed macro. Editing macros With the Macro Editor, you can add, edit, or remove command lines in the macro.

  • Page 77: Running Macros

    Advanced Configuration ~ Macros Running macros Macros can be run from G-Ware or the front panel controls on the XAP 400. You can also run a macro using external control devices (see Chapter 6: Control for more information). To run a macro using G-Ware Select the Run Macro button on the G-Ware toolbar.

  • Page 78: Chapter 5: Operation

    To answer a call Figure 5.1. XAP 400 front-panel telco controls Depending on how you have configured your XAP 400, an incoming call can ring on the telephone set connected to the XAP 400, the speaker output and the receive output, as well as pass a serial ring to a control device.

  • Page 79: Using The Dial Interface

    If using an external controller, it is not necessary to press the On button [A]. answer, the XAP 400 will The DIAL serial port command automatically engages the XAP 400. See connect to the call after Serial Commands, page 114.

  • Page 80: Touch-Tone Dialing

    (DTMF) dialing capability can be accessed. This allows outbound calls to be initiated by the XAP 400 without requiring an external dialer or telephone set. This feature continues to function after connection, enabling the user to issue tones for voice mail/pager interaction.

  • Page 81: Utilities

    Signal On again to terminate the noise signal. To use tone Figure 5.3. Signal Generator window Select the XAP 400 Unit and Input Channel the signal will be generated on. Select Tone. Using the Frequency slider, select a specific tone frequency. You can also enter the frequency in the box directly below the Frequency slider.

  • Page 82: Document Compare Utility

    Figure 5.5. You can also open the Document Compare Utility from the Start menu Figure 5.6. Document Compare Utility showing two XAP 400 sites. The items listed in the Site 1 and Site 2 columns show where the differences are found.
  • Page 83 Operation ~ Utilities To compare site files Click the Browse button at the right of the Site 1 Document Name. This opens the Open window. Figure 5.7. Open window Select the first site file you want to compare. To compare the settings in a connected site, click on the G-Ware Connections tab and select the unit or site.
  • Page 84 Operation ~ Utilities Figure 5.8. Print Preview window Copying settings When two sites are compared, the Copy to Site, Paste, and Copy buttons at the bottom of the window become selectable. Print the comparison for a detailed list of differences between the two sites.

  • Page 85: Print Reports

    Operation ~ Utilities The remaining buttons in the Document Compare window do the following: • Refresh button updates the connection status to site(s) or unit(s). • Select All selects everything in the Site 1/Site 2 table. • Select None deselects anything highlighted in the table. •...

  • Page 86: Gfirm Firmware Upgrade

    G-Ware toolbar, you need to install the current G-Ware release. You can download G-Ware from the ClearOne web site at www.clearone.com. Figure 5.13. G-Ware Firmware Utility Click Browse to access a list of available firmware updates. Select the file that matches the type of unit you are upgrading and click Open.
  • Page 87 Operation ~ Utilities Select the PC COM port you are using for the upgrade. Select the Baud Rate that matches the baud rate in the Site Properties window. Figure 5.15. Selecting baud rate Click Next. If the upgrade requires you to save your site files, a warning message will display.

  • Page 88: G-Ware Switcher

    To use G-Ware Switcher Launch G-Ware Switcher from the Windows Start menu by selecting Programs, ClearOne G-Ware, and then G-Ware Switcher. The G-Ware Switcher Utility Window opens. G-Ware Switcher automatically searches the PC for G-Ware software versions and displays them in the window.

  • Page 89: Monitoring Views

    Meter Views The Meter Views window allows you to monitor the level of any input, output, or processing signal of the XAP 400. You can monitor the same parameter on multiple Figure 5.21. inputs (or outputs or processing channels) for comparison or you can monitor an Meters button Figure 5.22.

  • Page 90: Telco Meters

    When you have finished making changes, click Close to exit the window. Telco meters Open the XAP 400 Telco Meters window by clicking the Telco Meters button on the Flow Screen. The Telco Meters window is a diagnostic tool which allows you to observe the performance of various aspects of XAP 400 operation.
  • Page 91 DAA. The range of the meter is -30 to +20dB. Receive Input This meter shows the audio level input to the XAP 400 as it is received from the Telco DAA. The range of the meter is -30 to +20dB.

  • Page 92: Chapter 6: Control

    CHAPTER 6: Control There are many ways to control your XAP 400 and networked units. This chapter explains how to set up control for the Control/Status A port using GPIO Builder, the XAP IR Remote and ClearOne Control Panels using Remote Builder, and RS-232 port.

  • Page 93: Remote Builder

    Remote Builder The Remote Builder window is used to configure optional XAP IR Remotes and ClearOne Volume and Select Control Panels. These control devices are connected to Remote Panel A or Remote Panel B—the RS-485 connectors. If you want to create custom control assignments for presets, open the Remote Builder from the Preset Configuration pane and select the Use in Preset option.

  • Page 94: Clearone Control Panels

    In the Telephone Interface section, select the Device Type and ID of the unit XAP IR Remote manual for more (XAP 400 or XAP TH2) that you want the XAP IR remote to use when making and receiving calls. The default settings are ** which will select any information.
  • Page 95 Control ~ Remote Builder To program the Volume panel Each Control Panel button can be programmed to Select an ID number for the remote from the Select Remote ID list. respond like a momentary or latching button. A command can Click Change Name to create a more descriptive name (limit 20 be programmed to activate or characters) for the remote which is displayed in addition to the remote...
  • Page 96 Control ~ Remote Builder Select the Device Type, ID, and Command from their respective lists. When you select a command, a description of it appears in the Command Description box. Select the command settings from the argument lists. The options that are available depend on the command selected.

  • Page 97: Rs-232 Port

    Serial commands Serial commands can be passed through the XAP 400 RS-232 port using Hyper Terminal, touch panels, or other compatible remote control devices. To learn more about serial commands, see Appendix E.

  • Page 98: Command Strings

    ~ RS-232 Port Command strings By creating command strings, you can use your XAP 400 to control equipment such as lighting, projectors, and room dividers as well as other ClearOne products. A command string is passed to the connected device via the XAP 400’s RS-232 port.
  • Page 99 Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...

  • Page 100: Appendices

    APPENDICES Appendix A: Specifications Dimensions (LxDxH) +5VDC pins (2) (300mA over-current Frequency Response: 20Hz to 20kHz 17.25" x 10.25" x 1.75" protected) ±1dB 43.8 x 26 x 4.5 cm Noise (EIN): -126dBu, 20kHz BW, Remote Panels A/B max gain, Rs=150 4-pin push–on terminal block Weight THD+N: <0.02%...
  • Page 101 Appendices ~ Appendix A: Specifications Maximum # of Mics Mode AGC on/off Frequency Response: 250Hz to Ambient Level Speech Leveler on/off 3.3kHz +/- 1dB Gate Threshold Adjust Auto Gate/Manual gate THD+N: <0.2%, 250Hz to 3.3kHz Off Attenuation Adjust Adaptive Ambient on/off SNR: >62dB re max level Hold Time Pre Emphasis: =4dB @ 2kHz...

  • Page 102: Appendix B: Pinouts

    No connection avoid communication errors. Ground Figure B.2. XAP 400 to PC RS-232 connections Figure B.3. XAP 400 to Modem RS-232 Connections Figure B.4. XAP 400 to AMX RS-232 Connections Figure B.5. Modem to AMX RS-232 Connections...
  • Page 103 The inputs on these connectors are internally pulled high and are activated by connecting the pin to ground. The outputs are open collectors, which are open when inactive and grounded when active. This allows the XAP 400 to control Figure B.6. Control/Status Ports A, B and be controlled by a wide variety of external devices, including relays, lamps, switches, and other equipment.
  • Page 104 Appendices ~ Appendix B: Pinouts Control/Status B port pinout Definable* Type Default Description Preset select bit Preset select status for Pin 1 Preset select bit Preset select status for Pin 3 Preset select bit Preset select status for Pin 5 Preset select bit Preset select status for Pin 7 Preset select bit...
  • Page 105 Appendices ~ Appendix B: Pinouts RS-485 Remote Panel A and B connectors Description +15VDC, 300mA (over-current protected) Data + Data – Figure B.7. RS-485 Remote Control Ports Ground Set connector pinout Description Description To pin 6 of SET RJ-11C To pin 5 of SET To pin 2 of LINE Ring To pin 1 of LINE RJ-11C...

  • Page 106: Appendix C: Control Panel

    The Volume Control Panel and Select Control Panel connect to either the Remote installed according Panel A or B connector of the PSR1212, XAP 800, or XAP 400 and works by applicable local electrical triggering the execution of programmed commands from the XAP/PSR unit. Each codes.
  • Page 107 Appendices ~ Appendix C: Control Panel Connect one connector terminator block to the Remote Panel on the Control Panel Assembly XAP/PSR unit. Route the other end of the cable through the back of the Dimensions (both versions): electrical wall box and connect the terminator block to the Control Panel. 1.8˝/4.6cm W x 4.125˝...

  • Page 108: Appendix D: Accessories

    (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Appendix D: Accessories Accessory ClearOne Part Number Tabletop Omni Microphone 910-103-160 (with cable) Tabletop Uni Microphone 910-103-161 (with cable)

  • Page 109: Appendix E: Serial Commands

    A command to enable auto-answer on the XAP 400 device "0" would have the command line: #70 AA 1 1. In this command line, 7=XAP 400, 0=unit 0, AA=command, 1=Telco channel 1, 1=on state. If a command calls for a "null" value, leave a blank in the command line. For example, "#70 AA" would return the current auto-answer state on device 70.
  • Page 110 (mic inputs). The following table shows the alpha representations for the different groups and the channels that are available for each product. Type and device IDs Type ID Unit type Device ID range PSR1212 0–7 XAP 800 0–7 XAP TH2 0–F XAP 400 0–7 Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...
  • Page 111 Appendices ~ Appendix E: Serial Commands Meter type definitions Serial command error codes Error number Text message Explanation/Solution Memory error The box is out of internal memory. Power cycle the box. No command found A command was not found in the string. Unknown command A command was executed on a different device type that this box response...
  • Page 112 Appendices ~ Appendix E: Serial Commands XAP 400 Serial commands Command Function Command Function Sets auto-answer for a telco channel GATE Reports gate status of channels 1–4 AAMB Selects/reports adapt ambient setting GHOLD Selects/reports hold time setting ACONN Sets the audible connect signal to on/off...
  • Page 113 Executes a string for the RS-232 port channels SFTYMUTE Selects/reports the state of the safety mute. NULL Renulls the XAP 400 to the telephone line When on, the safety mute holds all outputs in a OFFA Selects/reports off attenuation mode for muted state.
  • Page 114 See Groups and Channels on page 103 Value 0 = Off, 1 = On, 2 = Toggle Example: #70 AA 1 1 On XAP 400 unit 0 (#70), auto-answer (AA) for telco channel (1) is set on (1). AAMB - Adaptive Ambient Mode This command selects/reports the setting of adaptive ambient.
  • Page 115 Value 0 = Off, 1 = On, 2 = Toggle, Null to query in text Example: #70 AEC 1 0 On XAP 400 unit 0 (#70) the echo canceller (AEC) for mic channel 1 (1) is set to off (0).
  • Page 116 0 = Off, 1 = On, 2 = Toggle, Null to query in text Example: #74 AGC 1 M 0 On XAP 400 unit 4 (#74), the automatic gain control (AGC) on mic (M) channel 1 is set to off (0).
  • Page 117 Value 0 = Off, 1 = On, 2 = Toggle, Null to query in text Example: #72 ALC 1 1 On XAP 400 unit 2 (#72), the automatic level control (ALC) for the hybrid (1) is on (1). AMBLVL - Ambient Level Adjust This command selects/reports the setting of the ambient level.
  • Page 118 3 = compressor group 3, 4 = compressor group 4, null to return the current mode Example: #72 CGROUP A 2 On XAP 400 unit 2 (#72), the compression group (CGROUP) for processing channel A is 2. CHAIRO - Chairman Override Mode This command selects/reports the setting of chairman override.
  • Page 119 Gain 0.00 to 20.00 Example: #71 COMPRESS A 6 5 25 250 3 On XAP 400 unit 1 (#71), the compression (COMPRESS) within processing channel A is set to have a threshold of 6dB, a ratio of 5:1 (5), an attack time of 25ms, a release time of 250ms, and a gain of 3dB.
  • Page 120 Value 1 = Slow, 2 = Medium, 3 = Fast, Null to return current state Example: #73 DECAY 1 3 On XAP 400 unit 3 (#73), the decay rate (DECAY) for mic channel 1 is set to fast (3). DELAY - Delay Adjust This command selects/reports the delay time of each assignable processing channel.
  • Page 121 I, A, N, G, as applicable for group (see Meter Type definitions, page 104) Example: #75 DFLTM 8 O A On XAP 400 unit 5 (#75), the default meter (DFLTM) is set to output (O) 8 after the gain adjustment (A).
  • Page 122 Value 0–7 (select device ID) Example: #77 DID 0 On XAP 400 unit 7 (#77), the device ID (DID) is set to 0. DSPVER - DSP Version This command reports the version of the DSP code in the unit. the version is a date and time stamp.
  • Page 123 Value -12.00 to 12.00 Null to return current state Example: #72 DTONELVL 1 3 On XAP 400 unit 2 (#72), the dial tone level (DTONELVL) is set to 3dB. FILTER - Filter Adjust This command selects/reports the setting of filters.
  • Page 124 ~ Appendix E: Serial Commands Examples #70 FILTER 1 M 3 2 200 On XAP 400 unit 0 (#70) the filter (FILTER) for mic (M) channel 1, node 3 is set as a low-pass filter (2) at 200Hz. #71 FILTER B P 2 4 3000 -10 On XAP 400 unit 1 (#71) the filter (FILTER) for processing (P) channel B, node 2, is set as a low shelving (4) filter at 3000Hz and a gain of -10dB.
  • Page 125 0 = Off, 1 = On, 2 = Toggle, Null returns the current mode Example: #75 FMP A 1 On XAP 400 unit 5 (#75), the first mic priority mode (FMP) for gating group A is set to on (1).
  • Page 126 -99 to 99 *, Null to return the current gain A = Absolute, R = Relative, Null = Relative Example: #71 GAIN 4 O 12 A On XAP 400 unit 1 (#71), the GAIN for Output (O) 4 is set to 12dB absolute (A).
  • Page 127 Value 1 = auto, 2 = manual on, 3 = manual off, Null= current mode Example: #75 GMODE 1 2 On XAP 400 unit 5 (#75), mic channel 1 is set to a gating mode (GMODE) if manual on (2).
  • Page 128 Value 0 to 50 Null to return current ratio Example : #72 GRATIO 1 15 On XAP 400 unit 2 (#72), the gate ratio (GRATIO) for mic channel 1 is set to 15dB. GREPORT - Gate Report Gate report sends a report on every gate change.
  • Page 129 HOOK Command form Channel See Groups and Channels, page 103 Example: #75 HOOK 1 On XAP 400 unit 5 (#75), send a HOOK flash to the hybrid (1). HOOKD - Hook Flash Duration This command selects/reports the hook flash duration.
  • Page 130 0 = Unlock Panel, 1 = Lock Panel, 2 = Toggle Value, 3 = Lock when timed out Example: #74 LFP 1 The XAP 400 unit 4 (#74), front panel (LFP) is locked (1). LMO - Last Mic On Mode This command selects/reports last Mic on mode for the specified gating group.
  • Page 131 0 = Off, 1 = On, 2 = Toggle, Null = Query (value is only returned if unit is unlocked) Example: #72 LOCKPRST 5 S 1 On XAP 400 unit 2 (#72), preset 5 (5 S) will be protected (1) whenever the lock option is enabled.
  • Page 132 1 =On (Add specified level to list of levels to be reported) 2 = Toggle Example: #72 LVLREPORT 8 L I 1 On XAP 400 unit 2 (#72), the level (LVLREPORT) of line level (L) input 8 at the input stage (I) is to be added (1) to the report.
  • Page 133 -65.00 to 20.00 Null to return the current setting Example: #71 MAX 2 M 10 On XAP 400 unit 1 (#71), the maximum (MAX) relative gain setting for mic (M) channel 2 is 10dB. Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...
  • Page 134 -65.00 to 20.00 Null to return the current setting Example: #74 MIN 2 M -10 On XAP 400 unit 4 (#74), the minimum (MIN) relative gain setting for mic (M) channel 2 is -10dB. Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...
  • Page 135 -65.00 to 20.00, Null to return current settings Maximum -65.00 – 20.00 Example: #75 MINMAX 2 M -12 10 On XAP 400 unit 5 (#75), the minimum and maximum (MINMAX) relative gain settings for mic (M) channel 2 are -12dB and 10dB respectively.
  • Page 136 Null = Current maximum number of microphones Example: #72 MMAX A 4 On the XAP 400 unit 2 (#72), the max number of mics (MMAX) in gating group A that are allowed to gate on at any one time is 4.
  • Page 137 4 = Gated (mic sources only)\ Null = Current mode Example: #77 MTRX 1 M 4 O 4 On XAP 400 unit 7 (#77), mic (M) channel 1 is routed (MTRX) as gated (4) to output (O) 4. MTRXLVL - Matrix Attenuation Adjustment This command selects/reports the matrix level at the cross point.
  • Page 138 Value 0 = Off, 1 = On, 2 = Toggle, Null = current mode Example: #71 MUTE 2 M 1 On XAP 400 unit 1 (#71), the mute (MUTE) for mic (M) channel 2 is on (1). NCD - Noise Cancellation Depth This command selects/reports the noise cancellation amount for each mic channel.
  • Page 139 0–7 or * to select all units NULL Command Channel See Groups and Channels, page 103 Example: #76 NULL 1 On XAP 400 unit 6 (#76), the hybrid (1) will NULL the phone line. Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...
  • Page 140 Value 0 = Off, 1 = On, 2 = Toggle, Null = Current mode Example: #77 PAA 1 0 On XAP 400 unit 7 (#77), the PA adaptive mode (PAA) on mic channel 1 is disabled (0). PP - Phantom Power This command selects/reports the setting of phantom power.
  • Page 141 2 = Execute the preset and set the state to off Null = Returns the current preset state Example: #72 PRESET 5 1 On XAP 400 unit 2 (#72), preset (PRESET) 5 will execute and set the state to on (1).
  • Page 142 Example: #77 RAMP 5 L 6 12 On XAP 400 unit 7 ( #77 ), the gain ( RAMP ) on ine Input 5 will increase at a rate of 6d B/sec until the 12 dB point is reached.
  • Page 143 0–7 or * to select all units RING Command Channel See Groups and Channels, page 103 Example: #71 RING 1 On XAP 400 unit 1 (#71), the hybrid (1) will detect an incoming RING. Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...
  • Page 144 0, 3, 6, 9, 12 Null to return current state Example: #74 RXBOOST 1 6 On XAP 400 unit 4 (#74), the receive boost (RXBOOST) of the hybrid (1) is set to 6dB. Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...
  • Page 145 Value 0 = Off, 1 = On, 2 = Toggle, Null = Current state Example: #75 RXBSTEN 11 On XAP 400 unit 5 (#75), the receive boost enable (RXBSTEN) for the hybrid (1) is on (1). RXRD - Telco Receive Reduction This command selects/reports the status of the Telco receive reduction.
  • Page 146 20 to 20,000 frequency in Hz (only needed when using tone generation) Example: #76 SIGGEN 1 M 2 0 On XAP 400 unit 6 (#76), the signal gen- erator (SIGGEN) is set to input at mic (M) channel 1 with white noise (2) at 0dB.
  • Page 147 Value 0 = Off, 1 = On, 2 = Toggle, Null = Current mode Example: #70 SLVL 2 M 1 On XAp 400 unit 0 (#70), the speech leveler for mic (M) channel 2 is set to on (1). SPEEDDIAL - Speed Dialing This command dials a speed dial number.
  • Page 148 0 = Auto, 1 = Burst, Null= Current mode Example: #72 TAMODE 10 On XAP 400 unit 2 ( #72 ), set the telco adapt mode ( TAMODE ) for the hybrid ( 1 ) to Auto ( 0 ).
  • Page 149 Value 0 = Off, 1 = On, 2 = Toggle, Null = Current status Example: #73TE 1 1 On XAP 400 unit 3 (#73), set the telco enable (TE) of the hybrid (1) on (1), off hook. TERL - Telco Echo Return Loss This command reports the Telco echo return loss.
  • Page 150 0 = Off, 1–15 (select time out in minutes) Null = Current mode Example: #72 TOUT 5 On XAP 400 unit 2 (#72), the front panel of the unit will time out (TOUT) after 5 minutes. UID - Unit ID This command reports the unit ID.

  • Page 151: Appendix F: Warranty

    Appendices ~ Appendix F: Warranty Appendix F: Warranty ClearOne Communications, Inc. (Manufacturer) warrants that this product is free of defects in both materials and workmanship. Should any part of this product be defective, the Manufacturer agrees, at its option, to: A.
  • Page 152 This warranty extends only to the original end user and is not assignable or transferable. This Warranty is governed by the laws of the State of Utah, without regard to the conflicts of interests provisions thereof. ClearOne Communications 1825 Research Way Salt Lake City, Utah 84119...

  • Page 153: Appendix G: Compliance

    Appendix G: Compliance Warning: The country code settings must be set for the desired country of operation in order to ensure proper operation of the XAP 400 and to ensure that the XAP 400 complies with the countries Telco requirements. Changing these settings to a country other than the intended country of operation may cause the XAP 400 to be non-compliant.
  • Page 154 If you experience problems with this equipment, contact ClearOne Communications, 1825 Research Way, Salt Lake City, Utah 84119, or by phone at (801) 975-7200 for repair and warranty information.

  • Page 155: Safety Information

    ClearOne Communications Manufacturer’s Address: 1825 West Research Way Salt Lake City, Utah 84119 U.S.A. Model No.: XAP 400 Standard(s) to which Conformity is declared: 89/336/EEC “Electromagnetic Compatibility (EMC) Directive”: EN 55022: 1994 (Emissions) Specification for limits and methods of measurement of radio interference characteristics of information technology equipment.
  • Page 156 Appendices ~ Appendix G: Compliance EN 61000-3-2:1995/A1/A2:1998 Part 3: Limits – Section 2: Limits for harmonic current emissions. EN 61000-3-3:1995 Section 3: Limitation of voltage fluctuations and flicker in low voltage supply systems for equipment with rated current up to and including 16 A.

  • Page 157: Glossary

    Adaptive Ambient This portion of the mixer monitors the varying ambient noise level in the room and changes the threshold level at which a microphone gates on. Ambient Level The manually-set background noise level upon which the XAP 400 bases gating protocols. Used only if the Adaptive Ambient feature isn’t used.
  • Page 158 Constant Directivity Horn Equalizer (CD Horn EQ) Horn drivers commonly used in arrays in arenas and auditoriums have an inherent 6dB/octave high frequency rolloff. The XAP 400’s CD Horn EQ compensates for this characteristic. Crossover A device that passes designated frequency segments of an audio signal to various loudspeaker elements in a sound system.
  • Page 159 E-bus network. Because up to eight XAP 400s may be used in the same network, the device ID range is 0–7. Device Type A number which identifies the type of unit. For example, a XAP 400 is device type 7.
  • Page 160 +/- 15dB. Filter Display A group of nodes plotted on a logarithmic scale. The XAP 400’s filter display can be accessed through the Inputs 1-8, From Processing, or To Processing windows. Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...
  • Page 161 Gain The amount a signal is increased over a given reference, typically 0. Normally specified in dB (decibels). On the XAP 400, gain is adjustable from -65 to 20dB (85dB range) in .5dB increments.
  • Page 162 Matrix Mixer A mixer that allows routing of any input or combination of inputs to an output or any combination of outputs. In the case of the XAP 400, the matrix mixer permits level control at each cross point in the matrix.
  • Page 163 Off Attenuation The amount of level reduction a microphone is given when the microphone is not gated on. PA Adaptive Mode The XAP 400 recognizes how much loudspeaker audio is picked up by the microphones and then uses this level as the new ambient level when audio is present at the power amplifier.
  • Page 164 Phantom Power Power supplied by the XAP 400 to power most condenser microphones. The XAP 400 provides 24 volts of phantom power. This feature can be switched off for devices not requiring phantom power. Phase Plot A plot of phase angle (-180 to 180 degrees) vs. frequency (20Hz to 20kHz) on a logarithmic scale.
  • Page 165 Glossary Reverberation A diffused acoustic energy field fed and maintained by sound reflections from the room surfaces. S–Z buses These eight buses are defaulted as auxiliary mix buses. They are used to route auxiliary audio to and from other units on the network. These buses are also used as mic mix buses when NOM count is not required.
  • Page 166 Glossary TERLE The telco echo return loss enhancement (TERLE) meter shows the loss through the telephone echo cancellation process. It is the ratio of the two levels. Threshold The upper or lower level at which a signal processing mechanism begins or terminates operation.

  • Page 167: Index

    Index Index Chairman Override 38, 94, 105, 111, 151 Clear Matrix 30 acoustic echo cancellation 33–35, 40 156 clear password 15 echo return loss (ERL) 35 clipping 43, 45, 47, 54, 58, 151 echo return loss enhancement (ERLE) 35 codecs see video codecs non-linear processing (NLP) 35 COM port 21, 23...
  • Page 168 Index Dial Tone Level 56, 152 gate ratio 39 Distributed Echo Cancellation hold time 39 see Gentner manual off 38 Distributed Echo Cancellation Document Compare Utility 75 manual on 38 DSP 1, 105, 115, 152 off attenuation 39 DTMF 2, 73, 105, 115, 116, 152 PA Adaptive mode 38 DTMF level 56, 152 Gate View 79...
  • Page 169 Index pre pain 43 Min/Max limits 42 labels 27, 29, 48, 60, 61 mixer mode 9, 12, 14, 15, 155 Last Mic On 105, 124 modem 15, 16, 23, 26, 90, 95, 105, 127, latency 6 129, 157 LCD menu 13, 16, 25 modem access 90 LCD menu tree 13 password 90...
  • Page 170 Index pinouts 95 Receive Input 84 Control/Status A 96 Receive Output 84 Control/Status B 97 receive reduction 56 Line 98 release time 112, 158 RS-232 95 Remote Builder 27, 61, 85, 86, 87 RS-485 98 Remote Panel 6, 10, 64, 86, 98, 99, 100 Set 98 response time 33, 109 see also automatic gain...
  • Page 171 Index System menu 14 Device ID 15 Unit Properties 25–26, 60, 68, 90 Firmware Version 15 communication 25 Lock Panel 14 country code 25 Run Macro 14 default meter 25 Select Preset 14 device ID 25 Set Passcode 15 meter refresh rate 25 Unit ID 15 preset/macro password 26 system requirements 21...
  • Page 172 Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...
  • Page 173 ClearOne Communications ~ 1825 Research Way, Salt Lake City, UT 84119 ~ tel 1-800-945-7730 ~ fax 1-800-933-5107...

Table of Contents
