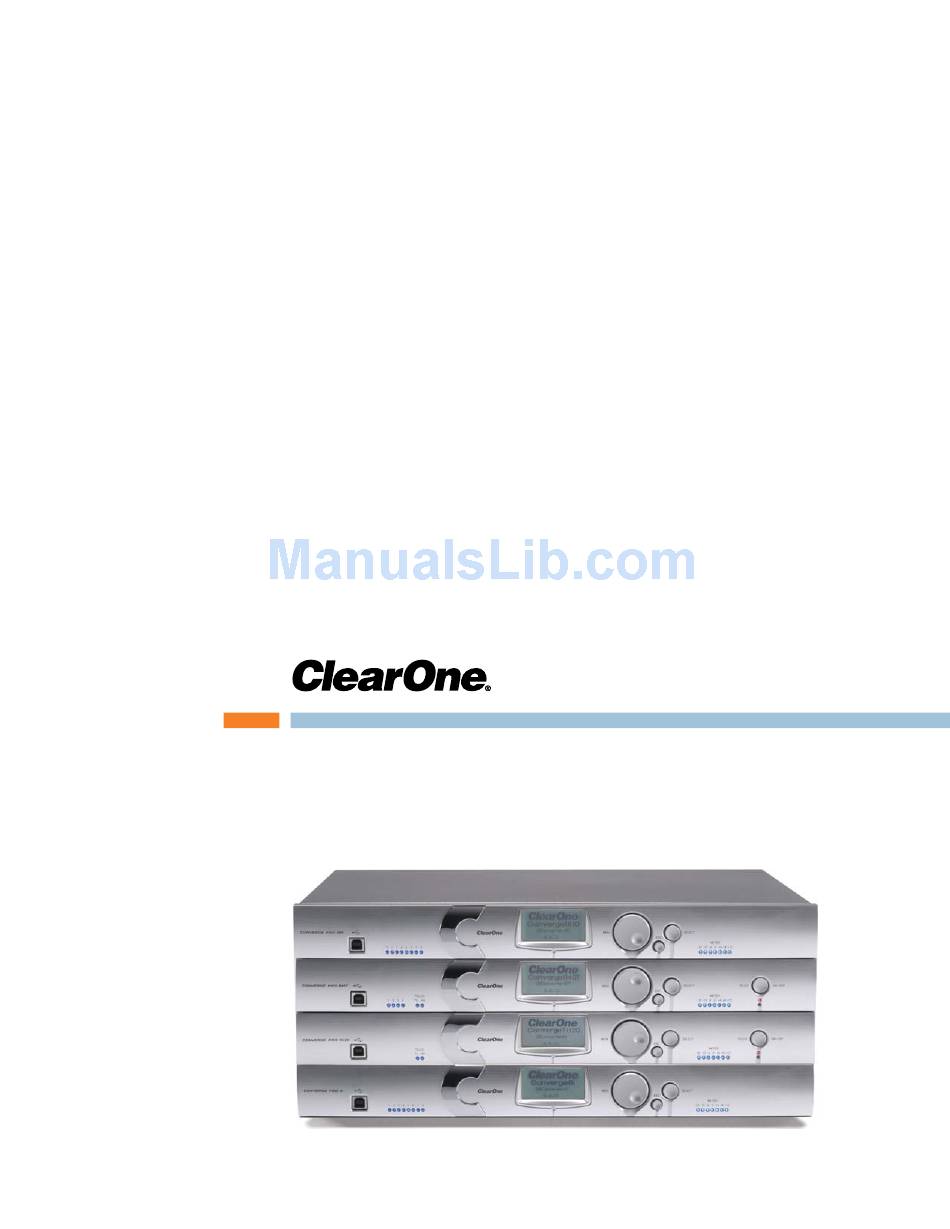

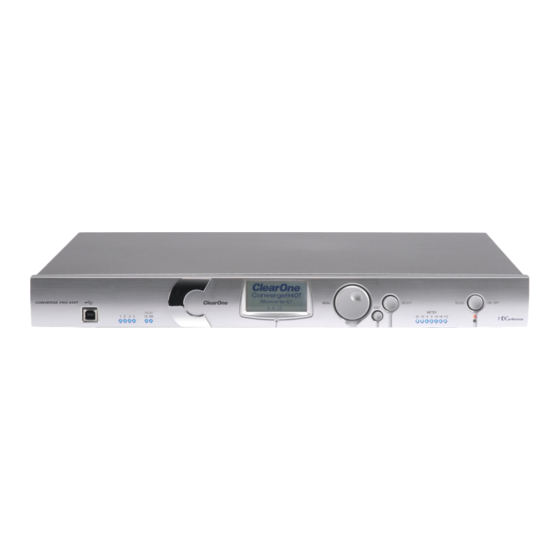

CONVERGE™ PRO 880/840T/TH20/8i Professional Conferencing Systems
SERIAL COMMAND GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CONVERGE PRO 880 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ClearOne CONVERGE PRO 880

Summary of Contents for ClearOne CONVERGE PRO 880

  • Page 1 CONVERGE™ PRO 880/840T/TH20/8i Professional Conferencing Systems SERIAL COMMAND GUIDE...

  • Page 2: Technical Support

    SERIAL COMMAND GUIDE CLEARONE PART NO. 800-151-882 (REVISION 1.0) September 2007 © 2007 ClearOne Communications, inc. All rights reserved. No part of this document may be reproduced in any form or by any means without written permission from ClearOne Communications.

  • Page 3: Command Form Description

    If a command specifies “(Null to query in text)” in its Value table, leave a blank in the command line to query the current state of that value. For example, the command #10 MUTE 2 M <blank> would return the current mute state of Mic 2 on an Converge Pro 880 with a Device ID of 0. Converge™ Pro Serial Command Guide...

  • Page 4: Groups And Channels

    GROUPS AND CHANNELS All Converge Pro serial commands use common alpha and numeric designators to reference channel group, channel types, and other command values. Also, different channel groups have different allowable channel ranges, as shown in the following table. Group Alpha Number Converge 880...

  • Page 5: Meter Type Definitions Table

    METER TYPE DEFINITIONS TABLE Alpha Numeric Level Position Level Level position Level Level Level Position for Mics Position for for Outputs and Position for Position for for Telco Rx Line Inputs Telco Tx Faders Processors Level into Input level Input level Input level Input Level Compressor...

  • Page 6: Table Of Contents

    SERIAL COMMAND INDEX AA – Auto Answer Enable / Disable (840T & TH20 only) ........8 AAMB –...
  • Page 7 ENETADDR – Ethernet Port IP Address ............17 ENETDHCP –...
  • Page 8 MANUFACTURER – Manufacturer Identification Label ........27 MAX –...
  • Page 9 RXBSTEN – Receive Boost Enable (840T & TH20 only) ........37 SERECHO –...

  • Page 10: Aa - Auto Answer Enable / Disable (840T & Th20 Only)

    SERIAL COMMANDS Converge Pro serial commands are shown in bold, followed by the command form and argument details. AA – Auto Answer Enable / Disable (840T & TH20 only) This command selects/reports the setting of auto answer. Command Form: DEVICE AA <Channel> [Value] Argument Type Size Values...

  • Page 11: Aconnlvl - Audible Connect / Disconnect Level (840T & Th20 Only)

    ACONNLVL – Audible Connect / Disconnect Level (840T & TH20 only) This command selects/reports the audible connect / disconnect indicator’s level. Command Form: DEVICE ACONNLVL <Channel> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 17 (R) Value Signed Float...

  • Page 12: Adpresent - Audio Presence

    ADPRESENT – Audio Presence This command displays the channels that currently have valid audio signals present. This command is read only. Command Form: DEVICE ADPRESENT [Values] Argument Type Size Values Value Bit Map of XXXX XXXX XXXX XXXX Inputs |…………………| Input 1 (lsb) to 12 (msb) |…….| Reserved...

  • Page 13: Agcset - Automatic Gain Control Adjust

    AGCSET – Automatic Gain Control Adjust This command selects/reports the settings of the Automatic Gain Control. Command Form: DEVICE AGCSET <Channel> <Group> [Threshold Target Attack Gain] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 1, 3, 7 (I, M, L) Threshold Signed Integer -50 –...

  • Page 14: Calldur - Call Duration (840T & Th20 Only)

    CALLDUR – Call Duration (840T & TH20 only) This command indicates how long a call has lasted. If no call is in session, this will report 0. At the time of call termination, this command will automatically be sent out reporting the duration. This command is read only. Command Form: DEVICE CALLDUR <Channel>...

  • Page 15: Cleareffect - Clear Effect Wide Band Telco Emulation (840T & Th20 Only)

    CLEAREFFECT – Clear Effect Wide Band Telco Emulation (840T & TH20 only) This command enables / disables or reports the current status of the clear effect. Command Form: DEVICE CLEAREFFECT <Channel> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 17 (R)

  • Page 16: Compsel - Compression Select

    COMPSEL – Compression Select This command selects/reports the compressor activation. Command Form: DEVICE COMPSEL <Channel> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 5 (P) Value Unsigned Integer 0 = Off 1 = On 2 = Toggle (Null to query in text) COUNTRY –...

  • Page 17: Default - Default The Unit

    DEFAULT – Default The Unit Sets the unit to factory defaults. There is no query for this command. Command Form: DEVICE DEFAULT No Arguments DELAY – Delay Adjust This command selects/reports the setting of delay time. Command Form: DEVICE DELAY <Channel> [Value] Argument Type Size Values...

  • Page 18: Devicetype - Sets The Type Of A Connected Device

    DEVICETYPE – Sets the Type of a Connected Device This command enables / disables or reports the current type of device connected to an input or output. Command Form: DEVICE DEVICETYPE <Channel> <Group> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group...

  • Page 19: Dtmflvl - Dtmf Tone Level (840T & Th20 Only)

    DTMFLVL – DTMF Tone Level (840T & TH20 only) This command selects/reports the DTMF tone’s level. Command Form: DEVICE DTMFLVL <Channel> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 17 (R) Value Signed Float -12.00 –...

  • Page 20: Enetdhcp - Ethernet Dhcp Selection

    ENETDHCP – Ethernet DHCP Selection This command selects/reports the use of DHCP of the Ethernet port on the unit. Command Form: DEVICE ENETDHCP [Value] Argument Type Size Values Units Value Unsigned Integer 0 = On 1 = Off 2 = Toggle (Null to query in text) ENETDNS –...

  • Page 21: Enetsubn - Ethernet Subnet Mask

    ENETSUBN – Ethernet Subnet Mask This command selects/reports the Subnet mask of the Ethernet port on the unit. Command Form: DEVICE ENETSUBN [Value] Argument Type Size Values Units Value IP Address (Null to query in text) EREF – Expansion Bus Reference This command selects an output or reports which output is the expansion bus reference.

  • Page 22: Filtsel - Filter Select

    FILTSEL – Filter Select This command turns on and off the filters. Command Form: DEVICE FILTSEL <Channel> <Group> <Node> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 3, 5 (M, P) Node Unsigned Integer Group 3 1 –...

  • Page 23: Gain - Gain Adjustment

    GAIN – Gain Adjustment This command changes or reports back the gain for a channel. Command Form: DEVICE GAIN <Channel> <Group> [Value] [Absol/Rel] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 1, 2, 3, 5, 7, 12, 16, 17 (I, O, M, P , L, F, T, R) Value Signed -99.90 –...

  • Page 24: Gover - Gating Override

    GOVER – Gating Override This command selects/reports the setting of gating override. Command Form: DEVICE GOVER <Channel> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 3 (M) Value Unsigned Integer 0 = Off 1 = On 2 = Toggle (Null to query in text) GPIOSTATUS –...

  • Page 25: Grpsel - Gating Group Select

    GRPSEL – Gating Group Select This command selects/reports which Gating Group a microphone input is assigned. Command Form: DEVICE GRPSEL <Channel> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 3 (M) Value Channel See 4 (G) in Groups and Channels (Null to query in text) HOOK –...

  • Page 26: Lmo - Last Mic On Mode

    LMO – Last Mic On Mode This command selects/reports last Mic on mode. Command Form: DEVICE LMO <Channel> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 4 (G) Value Unsigned Integer 0 = Off 1 - 8 = Mic 1 –...

  • Page 27: Loccomp - Location: Company

    LOCCOMP – Location: Company This command sets/reports the location of the unit: Company string. Command Form: DEVICE LOCCOMP [Value] Argument Type Size Values Units Value String CLEAR = Clear current value 1 – 63 Characters (Null to query in text) LOCREGION –...

  • Page 28: Logmask - Device Log Mask

    LOGMASK – Device Log Mask This command sets or reports the device event log mask. Command Form: DEVICE LOGMASK [Value] Argument Type Size Values Units Value Hexadecimal X X X X X X X X X X X X X X X X | | | | | | | | | | | | | | | | Reset | | | | | | | | | | | | | | |...

  • Page 29: Macro - Macro Execution/Reporting

    MACRO – Macro Execution/Reporting This command executes a specified macro or reports the last macro executed. Command Form: DEVICE MACRO [Value] Argument Type Size Values Units Value Channel See 14 (C) in Groups and Channels (Null to query last macro ran in text) NOTE: The response will indicate successful execution of the macro, but it does not guarantee that each command in the macro was executed.

  • Page 30: Min - Minimum Gain Setting

    MIN – Minimum Gain Setting This command changes or reports back the minimum gain setting for a channel. Command Form: DEVICE MIN <Channel> <Group> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 1, 2, 3, 5, 7, 12, 16, 17 (I, O, M, P , L, F, T, R) Value Signed Float -65.00 –...

  • Page 31: Mtrx - Matrix Routing

    MTRX – Matrix Routing This command selects/reports the matrix routing of an input to an output. Command Form: DEVICE MTRX <Src. Ch.> <Src. Gp.> <Dest. Ch.> <Dest. Gp.> [Value] Argument Type Size Values Units Source Channel Channel See Groups and Channels Source Group Group 1, 3, 5, 6, 7, 12, 17...

  • Page 32: Mtrxlvl - Matrix Attenuation Adjust

    MTRXLVL – Matrix Attenuation Adjust This command selects/reports the matrix level at the cross point. Command Form: DEVICE MTRXLVL <Src. Ch.> <Src. Gp.> <Dest. Ch.> <Dest. Gp.> [Value] [A/R] Argument Type Size Values Units Source Channel Channel See Groups and Channels Source Group Group 1, 3, 5, 6, 7, 12, 17...

  • Page 33: Ncsel - Noise Cancellation Select

    NCSEL – Noise Cancellation Select This command selects/reports the setting of the Noise Cancellation for each microphone channel. Command Form: DEVICE NCSEL <Channel> <Group> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 3, 17 (M, R) Value Unsigned Integer 0 = Off...

  • Page 34: Null - Null The Line (840T & Th20 Only)

    NULL – Null the Line (840T & TH20 only) This command nulls the line. There is no query for this command. Command Form: DEVICE NULL <Channel> Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 17 (R) Reserved OFFA –...

  • Page 35: Phonebookcnt - Counts Entries In The Phonebook (840T & Th20 Only)

    PHONEBOOKCNT – Counts Entries in the Phonebook (840T & TH20 only) This command queries the number of entries in the phonebook. This command is query only. Command Form: DEVICE PHONEBOOKCNT <Value> Argument Type Size Values Units Value Unsigned Integer 0 – 20 PHONEBOOKDEL –...

  • Page 36: Prgstring - Program String

    PRGSTRING – Program String This command sets/reports a programmed string. DEVICE PRGSTRING <ID> [Value] COMMAND FORM Argument Type Size Values Units Unsigned Integer 0 – 7 Value String CLEAR = Clear current value 1 – 80 Chars (Null to query in text) Special Characters: \a = alert \b = backspace...

  • Page 37: Redial - Redial The Last Number (840T & Th20 Only)

    REDIAL – Redial the Last Number (840T & TH20 only) This command redials the last number. There is no query for this command. Command Form: DEVICE REDIAL <Channel> Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 17 (R) Reserved...

  • Page 38: Ringeren - Audible Ring Enable (840T & Th20 Only)

    RINGEREN – Audible Ring Enable (840T & TH20 only) This command sends/reports the use of an audible ring. Command Form: DEVICE RINGEREN <Channel> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 17 (R) Value Unsigned Integer 0 = Off 1 = On...

  • Page 39: Rxbsten - Receive Boost Enable (840T & Th20 Only)

    RXBSTEN – Receive Boost Enable (840T & TH20 only) This command selects/reports the receive boost status. Command Form: DEVICE RXBSTEN <Channel> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 17 (R) Value Unsigned Integer 0 = Off 1 = On 2 = Toggle...

  • Page 40: Siggenen - Signal Generator Enable

    SIGGENEN – Signal Generator Enable This command selects/reports of the signal generator activation. Command Form: DEVICE SIGGENEN [Value] Argument Type Size Values Units Value Unsigned Integer 0 = Off 1 = On 2 = Toggle (Null to query in text) SIGGENSWEEP –...

  • Page 41: Smtpsrv - Smtp Mail Server Address

    SMTPSRV – SMTP Mail Server Address This command selects/reports the IP address of the SMTP Mail server, and the Email Address the unit’s SMTP client sends messages to. Command Form: DEVICE SMTPSRV [Value Address] Argument Type Size Values Units Value IP Address (Null to query in text) (0.0.0.0 Clears IP and String)

  • Page 42: String - String Execution

    STRING – String Execution This command sends the specified string out the serial port. Command Form: DEVICE STRING [ID] Argument Type Size Values Units Unsigned Integer 0 – 7 (Null to query last string in text) SYSCHECKS – System Checks Initiates the system checks.

  • Page 43: Sysresult - System Check Result

    SYSRESULT – System Check Result This command reports the results of the system check. This command is reportable only. It cannot be queried or set. The System Check integer bits determine which test result will be reported. Each test results in a separate SYSRESULT message.

  • Page 44: Te - Telco Enable (840T & Th20 Only)

    TE – Telco Enable (840T & TH20 only) This command selects/reports the hook status. Command Form: DEVICE TE <Channel> [Value] Argument Type Size Values Units Channel Channel See Groups and Channels Group Group 17 (R) Value Unsigned Integer 0 = Off 1 = On 2 = Toggle (Null to query in text)

  • Page 45: Uid - Unit Id

    UID – Unit ID This command reports the unit id. This command is read only. Command Form: DEVICE UID [Value] Argument Type Size Values Units Value Hexadecimal (Sent with a Null, value returned in text) VER - Version This command reports the version of the unit. This command is read only. Command Form: DEVICE VER [Value] Argument Type...
  • Page 46 Serial Command Support Table The following table shows serial command support by Converge Pro device type. Converge Pro Converge Pro Converge Pro Converge Pro Command Name 840T TH20 AAMB AARINGS ACONN ACONNLVL ADCLIP ADPRESENT AGCSET AMBLVL AMXDUET AUDIOMASTER BAUD CALLDUR CALLERID CGROUP CHAIRO...
  • Page 47 Converge Pro Converge Pro Converge Pro Converge Pro Command Name 840T TH20 ENETADDR ENETDHCP ENETDNS ENETDNSA ENETDNSA2 ENETDOMAIN ENETGATE ENETSUBN EREF FILTER FILTSEL FLOW FPGAVER GAIN GATE GHOLD GMODE GOVER GPIOSTATUS GRATIO GREPORT GRPSEL HOOK HOOKD LABEL LCDCONTRAST LOCALNUM LOCBLDG LOCCITY LOCCNTRY LOCCOMP...
  • Page 48 Converge Pro Converge Pro Converge Pro Converge Pro Command Name 840T TH20 MINMAX MLINE MMAX MTRX MTRX2 MTRXCLEAR MTRXLVL MUTE NAME NCSEL NTPSRV NULL OFFA PBDIAL PHONEBOOKADD PHONEBOOKCNT PHONEBOOKDEL PHONEBOOKREAD PRESET PRGSTRING PTTTHRESHOLD PUSHTOTALK RAMP REDIAL REFSEL REFSET RESET RING RINGEREN RINGERLVL RINGERSEL...
  • Page 49 Converge Pro Converge Pro Converge Pro Converge Pro Command Name 840T TH20 SIGGEN SIGGENEN SIGGENSWEEP SIGTOUT SLVL SMTPSRV SNMPMNGRIP SNMPMNGRPORT SNMPREADCOMM SNMPWRITECOMM SPEEDDIAL STRING SYSCHECKS SYSRESULT TAMODE TELCOLVLCTRL TIMELOCALE TOUT UCLOCK WAITSTATE Converge™ Pro Serial Command Guide...
