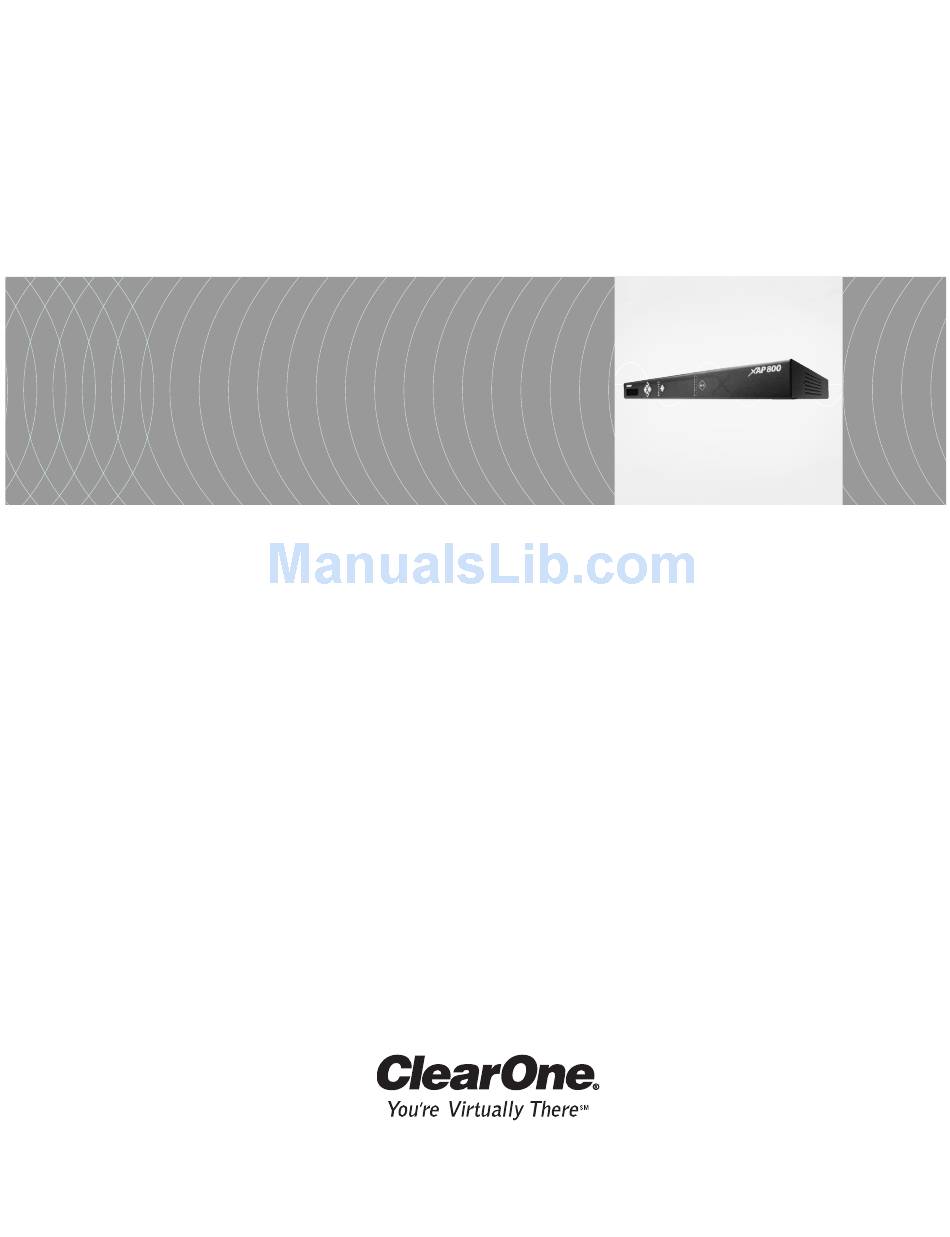

XAP™ 800 Audio Conferencing
System
Installation & Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XAP 800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ClearOne XAP 800

Summary of Contents for ClearOne XAP 800

  • Page 1 XAP™ 800 Audio Conferencing System Installation & Operation Manual...
  • Page 2 United States of America. ClearOne Communications reserves specific privileges. Information in this document is subject to change without notice. XAP 800 Installation and Operation Manual ClearOne Part No. 800-151-101 May 2005 (Rev. 4.1) Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...

  • Page 3: Table Of Contents

    XAP 800 Inst allation and Operation Manual Table of Contents CHAPTER 1: Introduction ......1 Product overview ..........1 New Features .
  • Page 4 Adding a XAP 800 ........
  • Page 5 CHAPTER 5: Operation ......67 Utilities ............67 Signal Generator .
  • Page 6 Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...

  • Page 7: Chapter 1: Introduction

    In its most simple form, the XAP 800 is a mic mixing matrix. As such, all mic mixing parameters can be customized and any input or combination of inputs can be routed to any output or combination of outputs, with attenuation adjustments at each cross point.

  • Page 8: New Features

    64 mics. The XAP 800’s Macro Pro™ scripting language allows the unit to function without the need for an external controller. However, it can be easily interfaced to an external controller via either of the two RS-485 ports.

  • Page 9: Professional Services Group

    E-mail: global@clearone.com Product registration Please register your XAP 800 online by visiting ClearOne Technical Support at www.clearone.com. When your product is properly registered, ClearOne Communications is better able to serve you should you require technical assistance. Registration information is also used to notify you of upgrades and new product information.

  • Page 10: Unpacking

    Controls and Connections Front panel A. LCD. This display is for XAP 800 setup in conjunction with the four associated front-panel buttons [B, C, and D]. Baud rate and flow control must be configured from the front panel; see the LCD Menu Tree on page 13 for the location of these in the menu system.

  • Page 11: Rear Panel

    E. LED meter. This assignable, peak-level LED bar meter is used to display the audio level of an input, output, or processing channel of the XAP 800. Meter. Takes you directly to the Meter branch of the XAP 800’s LCD menu tree.
  • Page 12 Power is supplied through the RS-485 ports to the remote Control Panels from the XAP 800. This power is limited to a total of 300mA at 15 volts for each connector. Over-current protection is provided on the +15V pins to prevent damage in the event of shorting.

  • Page 13: Networking

    Expansion bus The digital mix-minus expansion bus (RJ-45 LAN) is used to connect up to eight XAP 800/400s and 16 XAP TH2 units, where the total number of microphone inputs does not exceed 64.The maximum distance between interconnected XAP 800/400 or PSR1212 units is 80 feet (24 meters).

  • Page 14: Operational Requirements

    You can also purchase side panels for desktop placement. See Appendix D for a list of accessories. Environmental The XAP 800 can be safely operated in a room with varying temperatures between 32 °F/0 °C and 110 °F/43 °C. G-Ware requirements ClearOne’s G-Ware software requires the following minimum system configuration:...

  • Page 15: Chapter 2: Inst Allation

    CHAPTER 2: Inst allation The XAP 800 is designed for easy installation and setup. All connections are made through rear-panel connectors.This chapter provides instructions on making hardware connections, creating an expansion bus (E-bus) network, assigning device ID numbers, selecting the mixer mode, and using the front panel LCD menu.

  • Page 16: To Connect The Unit

    Plug in the XAP 800 to complete the installation. The power output [A] will operate at any level between 100–240VAC and 50–60Hz. If you are installing only one XAP 800 and are not connecting it to any other XAP or PSR1212 units, you have completed the hardware installation.

  • Page 17: Networking Units

    XAP 800 or XAP 400. For example, if the cable from the XAP 800 to the XAP TH2 is 50 feet and the cable from the XAP TH2 to the second XAP 800 is 50 feet, then the total length between the two XAP 800s is 100 feet which is beyond the maximum 80-foot limit.

  • Page 18: Device Ids

    Once your expansion bus connections are made (and if you have more than one XAP 800 at a site), you need to set up a unique expansion bus device ID number—a network address—for each XAP 800 on the network. As shipped from the factory, all XAP 800s are set to device ID 0.

  • Page 19: Lcd Programming

    ~ LCD Programming LCD Programming The XAP 800’s front panel is intuitive to operate, thanks to its simple interface: a 2x16 character LCD, menu buttons, and a peak-level LED bar meter. Although most of the XAP 800’s features are programmed with G-Ware software (see page 23), the front panel can be used for simple adjustments and meter monitoring.

  • Page 20: System Menu

    Enter to run the macro. Lock Panel The front panel may be locked to prevent unauthorized adjustments to the XAP 800. To lock the front panel, use the ▲/▼ buttons to select Lock Panel from the System menu, and press Enter. Lock Panel selections are Off, On, or On at Timeout. Press Enter to enable your selection.

  • Page 21: Rs-232 Menu

    The default passcode for all boxes is ▲▲▼▼Enter. Set Passcode Once the XAP 800 is unlocked, the passcode may be changed. Before the XAP 800 will allow passcode changes, the new passcode must be entered, then re-entered to validate the new passcode.

  • Page 22: Meter Menu

    Flow Control (hardware) Flow The XAP 800 uses the RTS and CTS pins on the RS-232 port to regulate the transmission and reception of data. You can enable or disable flow control on the front panel of unit and select the flow control type in the Site Properties window of G-Ware (see page 23).

  • Page 23: Inputs Menu

    LCD and LED display. Scroll to the output you want to monitor, then press Enter. This submenu allows monitoring of the ERL meters on the XAP 800. Select the meter you want to monitor and press Enter.

  • Page 24: Outputs Menu

    Installation ~ LCD Programming Gain This submenu allows you to adjust the gain for the selected input. Use the ▲ and ▼ buttons to increase or decrease gain. Outputs menu There are two submenus under the Outputs menu: Mute and Gain.To access these submenus you must first select the output.
  • Page 25 Installation ~ LCD Programming Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...
  • Page 26 Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...

  • Page 27: Chapter 3: System Configuration

    CHAPTER 3: System ClearOne’s G-Ware software provides an easy interface for configuring and controlling your XAP 800. While some configuration can be done using the front panel LCD menus, G-Ware is required to complete the custom configuration of your audio conferencing system.

  • Page 28: Creating Floppy Disk Copies

    ✍ ✍ To select an alternate destination directory, click Browse Choose Directory window to find the desired location. Click OK to return to the previous window. Figure 3.1. Desktop icon System Configuration Creating Floppy Disk Copies Depending upon the computer equipment you have available, you might need to install G-Ware software from floppy disks rather than the included CD.To do this, a Disk Copy program is provided in G-Ware that allows you to transfer G-Ware to floppy disks.

  • Page 29: Site Setup

    System Configuration ~ Site Setup Site Setup Creating a new site New site files are created through the Site Properties window in G-Ware. A site file contains all information about a particular installation including all unit settings and properties. It also provides G-Ware with the necessary information to communicate with the site hardware using your PC.

  • Page 30: Adding A Xap 800

    System Configuration Adding a XAP 800 You can add a XAP 800(s) to your site file by connecting to your site and using G-Ware to automatically create icons for the detected units. Or, you can work offline and manually add the unit(s) to the site file and connect to the site at a later time.To open an existing site file, click the Open Site File button or select Open Site from the File menu.

  • Page 31: Configuring Unit Properties

    Site Properties window (see page 23). Set the Serial Echo (default On) and the Serial Mode (default Text). Serial Echo echos back commands sent over the XAP 800 network. The serial mode determines the format in which the commands return—text or binary.
  • Page 32 Figure 3.14. Unit Properties Security tab System Configuration If a modem is connected to the XAP 800 unit, select Use Modem and enter the initialization string. Click OK; the XAP 800 will initialize the modem. Click the Security tab. Create a modem password. The password will be required before control of the system is allowed.

  • Page 33: G-Ware Screens

    The XAP 800 Flow Screen has seven icons and buttons at the bottom of the Flow Screen which open the following unit programs: Remote Builder, Gating Control, Signal Generator, Preset Mode, Macro Editor, Meters, and GPIO Builder.

  • Page 34: Status Bar

    Figure 3.17. Unit shortcut menu Figure 3.18. Inputs 1–8 shortcut menu Figure 3.19. Safety Mute Copying and pasting settings G-Ware has shortcut menus which appear when you right-click a selection or program window in G-Ware.These shortcut menus provide quick access to options such as Print, Copy, and Paste that pertain only to that selection or screen region.

  • Page 35: Matrix Screen

    System Configuration ~ G-Ware Screens Matrix Screen The Matrix Screen is used to route audio to one or more destinations (outputs, expansion bus, or processing). Any number of connections to outputs can be made in the matrix.The Matrix Screen can also be used to access the Input, Output, and Processing configuration windows by clicking on the buttons along the top and left sides of the routing matrix.

  • Page 36: Audio Routing

    Expansion bus O–Z routing Audio on any XAP unit in the E-bus network can be placed on the bus or taken off the bus and routed to any destination within the unit.The XAP 800 has 12 digital mix-minus buses: •...

  • Page 37: Matrix Report

    System Configuration ~ Audio Routing numerical value directly in the window). The attenuation range is from 0 to -60dB. Click Close to exit. Note that the level control you have selected for the cross point is indicated numerically in the cross point cell. The Cross Point shortcut menu also allows you to copy and paste the current Cross Point configuration, including attenuation, to other cross points.

  • Page 38: Inputs And Outputs

    ✍ ✍ Inputs 1–8 accept either microphone (-55, -25dB) or line level (0dB) inputs. ✍ ✍ ClearOne recommends using the XAP to mute mics instead of using the mute provided microphones. External muting devices limit the effectiveness of Gentner D.E.C. To use the mute button on a microphone, contact ClearOne Technical Services.
  • Page 39 P Pwr (Phantom Power) Phantom Power toggles the phantom power on and off. Phantom power is an auxiliary power source to power certain types of microphones.The XAP 800’s phantom power voltage is 24VDC. Default is On. AEC opens the Acoustic Echo Canceller window.To enable the acoustic echo canceller, click Enabled, then select the reference.
  • Page 40 Figure 3.29. Virtual Reference toolbar button System Configuration If you select a virtual echo cancellation reference, the Virtual Reference window will open. You can also open this window from the G-Ware toolbar. Figure 3.30. Virtual Reference window. Use this window to select which signals will be used by the four Virtual Reference points.
  • Page 41 System Configuration ~ Inputs and Outputs Non-linear Processing (NLP) The Non-linear Processing (NLP) feature increases the power of echo cancellation for difficult acoustical environments. NLP features four settings: Soft (6dB), Medium (12dB), Aggressive (18dB), and Off. Use NLP with care; corresponding trade-offs can include suppression and half-duplex operation.
  • Page 42 Q, or Quality factor. Q, or Quality factor, selects the ratio of the center frequency divided by the bandwidth. Q reflects an inverse relationship to the bandwidth, and adjusts from .02:1 to 40:1 on the XAP 800. Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...
  • Page 43 System Configuration ~ Inputs and Outputs Bandwidth. Bandwidth establishes the difference between the upper and lower points of a filter’s audio passband. Bypass. The Bypass box, when selected, bypasses the selected filter. Phase. Phase generates—on the graph—the phase relationship of the graphed frequency response.
  • Page 44 System Configuration Gate The XAP 800 has unique gating parameters which control microphone activation. The Gate button on the selected input in Inputs 1–8 window opens the Gate configuration window where you can establish the gating parameters for the input.
  • Page 45 System Configuration ~ Inputs and Outputs Figure 3.35. XAP 800 automixing gate functions Gate Ratio Gate Ratio specifies how much louder the audio level must be above the ambient level before the channel gates on.The gate ratio range is from 0 to 50dB. Default is 15dB.
  • Page 46 ✍ ✍ The PA Adapt Reference and AEC Reference are the same for each channel. If you change the PA Adapt Reference for a channel, you will also make the same change to that channel’s AEC Reference. Figure 3.37. Virtual Reference toolbar button System Configuration PA Adapt and AEC Reference...
  • Page 47 The XAP 800 features four internal gating groups (Internal 1–4) and four global gating groups across the expansion bus (Global A–D). Microphones can only be used in one gating group at a time.
  • Page 48 The Input setting allows you to select which mic input the XAP 800 leaves on when all mics gate off. If Off is selected, all mics will gate off when no audio is present. It is preferable in most applications to leave a mic on so the remote participants don’t think they have lost their...
  • Page 49 Input meter, just begins to enter the red (clipping) zone, then reduce the gain slightly until peaks no longer climb into the red zone. This setting will ensure that the XAP 800 maximizes the signal-to-noise ratio without clipping the signal.

  • Page 50: Inputs 9-12

    ~ Inputs and Outputs Inputs 9–12 The XAP 800 supports 4 line level only inputs for auxiliary audio sources such as video codecs and CD players.To open the Inputs 9–12 configuration window, click the Inputs 9–12 button on the Flow Screen.The In 9–12 button on the Matrix Screen will also open this window.These non-gated inputs are balanced.The nominal input...
  • Page 51 Post Gain meter, just begins to enter the red (clipping) zone, then reduce the gain slightly until peaks no longer climb into the red zone. This setting will ensure that the XAP 800 maximizes the signal-to-noise ratio without clipping the signal.

  • Page 52: Outputs 1-12

    System Configuration Outputs 1–12 The XAP 800 has 12 line level outputs for sending audio to video codecs, recorders, or amplifiers.To open the Outputs 1–12 configuration window, click the Outputs 1–12 button on the Flow Screen.The Outputs 1–12 button on the Matrix Screen will also open this window.
  • Page 53 Level meter, just begins to enter the red (clipping) zone, then reduce the gain slightly until peaks no longer climb into the red zone. This setting will ensure that the XAP 800 maximizes the signal-to-noise ratio without clipping the signal.

  • Page 54: Expansion Buses

    ✍ ✍ Routing of audio to the expansion buses is done in the Matrix Screen. See page 30. For information on setting up an expansion bus network, see page 11. System Configuration Expansion Buses From Expansion Bus O–Z Click the From Expansion Bus O–Z button on the Flow Screen to open the From Expansion Bus Labels window.

  • Page 55: Processing

    Processing Processing A–H There are eight processing blocks in the XAP 800, each with filters, compressors, and delay to provide pinpoint audio configurations.To open the Processing configuration window, click the Processing A–H button on the Flow Screen.The To and From Processing buttons on the Matrix Screen will also open this window.
  • Page 56 When configured properly, this results in a smooth audio response throughout the frequency range, with no bass, midrange, or treble dropouts. A given compressor group must be configured for a single XAP 800 unit; a group cannot use compressors from multiple XAP 800 units.
  • Page 57 System Configuration ~ Processing Post Compressor Gain Adjust the compressor gain with the gain slider or by using the ▲ and ▼ buttons.The graph reflects the input/output decibel levels with the gain setting you select. Threshold Threshold determines the RMS level at which the compressor begins to operate.The range is from -30 to +20dBu.
  • Page 58 System Configuration The frequency response and phase vs. frequency of the total transfer function of all filters is displayed in the window. Each filter can be disabled without affecting the filter settings. All filters can also be disabled using a single command. By default, they are not enabled and the filter types are not defined.
  • Page 59 System Configuration ~ Processing Figure 3.55. Low/Mid/High Loudspeaker Driver configuration Refer to the figure above. Note that as you create filters across several processing channels, you can observe their crossover points and general shape of the frequency response. In this case, several Linkwitz-Riley filters are being created across three processing channels to establish a balanced frequency response from low-frequency, midrange, and high-frequency transducers.
  • Page 60 Other types of delay to consider when establishing delay parameters are delays which occur naturally as a result of processing operations within the XAP 800. Propagation delay is an example. This delay is caused by operations such as the conversion of the signal between analog and digital formats.

  • Page 61: Chapter 4: Advanced Configuration

    You can change every unit parameter or a select few depending on your room needs. XAP 800 presets are unique in the sense that they operate independently of other presets in the unit. When a preset is run, only the selected inputs/outputs are changed—all other settings in other presets remain...
  • Page 62 Figure 4.3. Preset Configuration pane G-Ware Toolbar G-Ware Menus Preset Configuration Pane Status Bar Figure 4.2. Preset Mode Matrix Screen The Matrix Screen in the Preset Mode is very similar to the Matrix Screen in Configuration Mode. All Input, Output, and Processing windows can be accessed by clicking on their respective buttons.
  • Page 63 Advanced Configuration ~ Presets Preset Description. Use the Preset Description box for entering information about the preset.This description is stored in the site file, not the unit. Preset Mask Control/Status B. With Preset Mask Control Status B you can require an active high (H) or active low (L) contact on a control pin (1–19 odd numbers) or combination of several contacts in order to run the preset.
  • Page 64 ✍ ✍ To enable Acoustic Echo Cancellation or to change which outputs, expansion references, virtual references will be used for this preset, open the Acoustic Echo Canceller window from the Inputs 1–8 configuration window. Advanced Configuration Virtual Reference. The Virtual Reference button opens the preset Virtual Reference window.
  • Page 65 Advanced Configuration ~ Presets To create a preset From the Preset Selection list, select the number of the preset you will be configuring. Enter a description of the preset in the Preset Description box. If you want to password protect this preset, click Protected. See page 26 for information on creating the preset password.

  • Page 66: Running Presets

    Advanced Configuration Running presets Presets can be run from G-Ware or the front panel controls on the XAP 800. You can also program external control devices (such as AMX or Crestron, ClearOne Control Panels, XAP IR Remote, and GPIO devices) or use macros to run presets.
  • Page 67 Advanced Configuration ~ Presets Figure 4.9. Assigning a state to a preset command in the Macro Editor If a preset is flagged as “On,” nothing will happen when the preset is executed again because the system knows it has already been run. This prevents any manual adjustments that are made during the course of the meeting (gain, muting, etc.) from being lost.
  • Page 68 Advanced Configuration The four macros (one for each configuration) are set up as follows: When the room is in Configuration 1, running the Configuration 2 macro will change the presets to the following states: • P1 does not change because the flag is already set (1) •...

  • Page 69: Macros

    See pages 97–98 for a list of commands which can be used in macros. The XAP 800 is designed to support up to 255 macros, with an average of 150 command lines each. In the unlikely event that you exceed G-Ware’s capacity, you will be notified with a warning that indicates the command line at which memory is exceeded.
  • Page 70 Figure 4.14. Macro Editor button Figure 4.16 Macro Name window Advanced Configuration To create a macro using Macro Editor Click the Macro Editor button in the G-Ware toolbar to open the Macro Editor. Figure 4.15. Macro Editor window Select the Macro (from 1 to 255) you are creating from the Macro list. Numbers that are already assigned to macros will be marked with an asterisk.

  • Page 71: Editing Macros

    Advanced Configuration ~ Macros Click Add to place the command into the macro. The command line now appears in the command line table. You can now create another command line for the macro or save the completed macro. Editing macros With the Macro Editor, you can add, edit, or remove command lines in the macro.

  • Page 72: Running Macros

    Advanced Configuration Running macros Macros can be run from G-Ware or the front panel controls on the XAP 800. You can also run a macro using external control devices (see Chapter 6: Control for more information). To run a macro using G-Ware Select the Run Macro button on the G-Ware toolbar.

  • Page 73: Chapter 5: Operation

    CHAPTER 5: Operation G-Ware features several tools designed to assist you as you install your XAP 800 Audio Conferencing System including Signal Generator, Document Compare, Print Reports, Copy and Paste, and Message Log. G-Ware also provides Gate Views and Meters so you can quickly monitor or troubleshoot your system.This chapter describes how to use these utility programs and monitoring views in G-Ware.

  • Page 74: Document Compare Utility

    Figure 5.4. You can also open the Document Compare Utility from the Start menu To use tone Select the XAP 800 Unit and Input Channel the signal will be generated on. Select Tone. Using the Frequency slider, select a specific tone frequency. You can also enter the frequency in the box directly below the Frequency slider.
  • Page 75 This process can take a minute or two. Figure 5.6. Document Compare Utility showing two XAP 800 sites. The items listed in the Site 1 and Site 2 columns show where the differences are To view the difference(s) between two sources on a single parameter, select the row in the table you want to examine, then click Preview.
  • Page 76 ✍ ✍ Print the comparison for a detailed list of differences between the two sites. Figure 5.7. Print Preview window To print the report, click Print (you can also click Print in the Compare Utility window to print the report). The other buttons in this window allow you to tailor the view of the report and browse sequentially through each page.

  • Page 77: Print Reports

    Operation ~ Utilities In the window shown in Figure 5.9, clicking the Site 1 button transfers the selected settings from a line selected in the Site 2 column to the corresponding line in the Site 1 column. The Copy button copies the settings of the Site/Line above it, allowing you to paste (with the Paste button) settings to another site, unit, or even to a particular G-Ware parameter, such as an input.

  • Page 78: Gfirm Firmware Utility

    ✍ ✍ Make a note of the baud rate selected in the Site Properties window before opening G-Ware Firmware Utility. Figure 5.10. GFirm button ✍ ✍ If the GFirm toolbar button is not on the G-Ware toolbar, you need to install the current G-Ware release.
  • Page 79 Operation ~ Utilities Select the PC COM port you are using for the upgrade. Select the Baud Rate that matches the baud rate in the Site Properties window. Click Next. If the upgrade requires you to save your site files, a warning message will display.

  • Page 80: G-Ware Switcher

    ✍ ✍ If you want to reinstall previous versions, you must install them different directories or G-Ware Switcher will not work properly. Figure 5.14. Creating a directory for G-Ware 3.5 Figure 5.15. Creating a directory for G-Ware 4.5 G-Ware Switcher G-Ware Switcher allows you to alternate between different G-Ware software versions that are installed on the same PC.

  • Page 81: Copy And Paste Settings

    Operation ~ Monitoring Views If the selected G-Ware version is not active, click Re-Register/Make Shortcuts to re-register the version so it becomes active. Then click Run to launch it. If you have installed a version of G-Ware that isn’t displayed in the G-Ware Switcher window, click Refresh.

  • Page 82: Meter Views

    The Meter Views window allows you to monitor the level of any input, output, or processing signal of the XAP 800. You can monitor the same parameter on multiple inputs (or outputs or processing channels) for comparison or you can monitor an entire signal flow from input to output.

  • Page 83: Chapter 6: Control

    CHAPTER 6: Control There are many ways to control your XAP 800 and other networked units.This chapter explains how to set up control for Control/Status A port using GPIO Builder, XAP IR Remote and ClearOne Control Panel using Remote Builder and RS-232 port.

  • Page 84: Remote Builder

    Figure 6.2. Remote Builder button on Flow Screen Figure 6.3. Remote Builder toolbar button ✍ ✍ If you want to program different button assign- ments for use in a preset, you will need to open the Remote Builder from Preset Configuration pane (see page 57) and select Use in Preset.

  • Page 85: Clearone Control Panels

    ClearOne Control Panels ClearOne Control Panels are convenient wall panels which provide control over the XAP 800 audio conferencing system.There are two Control Panel models: Volume and Select. You can connect up to six Control Panels in daisy chain fashion to each RS-485 port.
  • Page 86 ✍ ✍ Each Control Panel button programmed to respond like a momentary or latching button. A command programmed activate deactivate a particular function. ✍ ✍ Up to six control panels (or five control panels and one IR remote) can be connected to each of the RS-485 ports.
  • Page 87 Control ~ Remote Builder Select the Device Type, ID, and Command from their respective lists. When you select a command, a description of it appears in the Command Description box. Select the command parameters from the argument lists. The parameters that are available depend on the command selected.

  • Page 88: Rs-232 Port

    Serial commands Serial commands can be passed through the XAP 800 RS-232 port using Hyper Terminal, touch panels, or other compatible remote control devices.To learn more about serial commands, see Appendix E.

  • Page 89: Command Strings

    ~ RS-232 Port Command strings By creating command strings, you can use your XAP 800 to control equipment such as lighting, projectors, and room dividers as well as other ClearOne products. A command string is passed to the connected device via the XAP 800’s RS-232 port.
  • Page 90 Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...

  • Page 91: Appendices

    APPENDICES Appendix A: Specifications Dimensions (LxDxH) 17.25" x 10.25" x 1.75" 43.8 x 26 x 4.5 cm Weight 7 lb/3.2 kg dry 12 lb/5.5 kg shipping Operating Temperature 32–100° F/0–38° C Humidity 15% to 80%, non-condensing Power Input Range Auto-adjusting 100–240VAC;...
  • Page 92 Last Mic Mode Maximum # of Mics Mode Ambient Level Gate Threshold Adjust Off Attenuation Adjust Hold Time Decay Rate Microphone Input Configuration Input Gain Adjust Mic or Line Level Phantom Power on/off Appendices Echo Cancellation on/off Noise Cancellation on/off Filters All Pass Low Pass...

  • Page 93: Appendix B: Pinouts

    DTR (Pin 4) GND (Pin 5) XAP 800 Pin 6 CTS (Pin 7) RTS (Pin 8) Pin 9 Figure B.2. XAP 800 to PC RS-232 connections DB-9 Female TXD (Pin 2) RXD (Pin 3) GND (Pin 5) XAP 800 CTS (Pin 7) RTS (Pin 8) Figure B.4.
  • Page 94 XAP 800 to control and be controlled by a wide variety of external devices, including relays, lamps, switches, and other equipment.
  • Page 95 Appendices ~ Appendix B: Pinouts Control/Status B port pinout Definable* Type No connection No connection Control/Status A and B: DB25 female Inputs A and B: active low (pull to ground) Outputs A and B: Open collector, 40V max, 40mA each Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760 Default Description Preset select bit...

  • Page 96: Line Connector Pinout

    Figure B.7. RS-485 Remote Control Ports RS-485 Remote Panel A and B connectors Description +15VDC, 300mA (over-current protected) Set connector pinout Description To pin 6 of SET RJ-11C To pin 5 of SET Ring Line connector pinout Description To pin 6 of LINE RJ-11C To pin 5 of LINE Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760 Appendices...

  • Page 97: Connecting The Control Panel

    The Volume Control Panel and Select Control Panel connect to either the Remote Panel A or B connector of the PSR1212, XAP 800, or XAP 400 and works by triggering the execution of programmed commands from the XAP/PSR unit. Each button on the control panel is programmable to execute a single command or a series of commands.
  • Page 98 ✍ ✍ Control Panel Assembly Dimensions (both versions): 1.8ý/4.6cm W x 4.125ý /10.5cm L (not including faceplate or electrical box). # of Control Panels Maximum Distance* 3,000 ft/914 meters 2,500 ft/762 meters 1,600 ft/488 meters 1,200 ft/366 meters 1,000 ft/305 meters 800 ft/244 meters Figure C.4.

  • Page 99: Appendix D: Accessories

    Appendices ~ Appendix D: Accessories 460-155-002 WALL ENCLOSURE 2.25 X 3.25 681-010-616 SCREWS (2) 6-32 X 1 INCH PPH 673-016-104 CONN TERM BLOCK/ F EURO 4 P (2 EACH) This equipment complies with the requirements of the European guidelines: 89/336/EEC “Electromagnetic Compatibility” and 93/68/EEC “Electrical operating material for use within specific voltage limits.”...

  • Page 100: Appendix E: Serial Commands

    Example A command to disable automatic gain control for Mic 2 on a XAP 800 device “0” will have the command line: #50 AGC 2 M 0. In this command line, 5=XAP 800, 0=unit 0, AGC=command, 2=channel, M=Mic Input group, 0=off state.

  • Page 101: Groups And Channels

    The following table shows the alpha representations for the different groups and the channels that are available for each product. Type and device IDs Type ID Unit type PSR1212 XAP 800 XAP TH2 XAP 400 Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760 Device ID range 0–7 0–7...
  • Page 102 Meter type definitions Serial command error codes Error number Appendices Text message Explanation/Solution Memory error The box is out of internal memory. Power cycle the box. No command found A command was not found in the string. Unknown command A command was executed on a different device type that this box response cannot display.The command dictionary needs to be updated.
  • Page 103 Appendices ~ Appendix E: Serial Commands XAP 800 Serial commands Command Function AAMB Selects/reports adapt ambient setting Selects/reports acoustic echo canceller setting Enable/disables AGC AGCSET Selects/reports AGC settings on inputs AMBLVL Selects/reports ambient level BAUD Selects/reports the baud rate of the serial port...
  • Page 104 Command Function NCSEL Selects/reports noise cancellation on/off for each mic channel Selects/reports NLP for each mic channel Selects/reports NOM setting on output channels OFFA Selects/reports off attenuation mode for Inputs 1–8 Selects PA adapt mode for specified input Selects/reports phantom power setting PRESET Executes preset or report last executed preset PRGSTRING...

  • Page 105: Aamb - Adaptive Ambient Mode

    Value 0 = Off, 1 = On, 2 = Toggle, Null to query in text Example: #50 AEC 1 0 On XAP 800 unit 0 (#50) the echo canceller (AEC) for mic channel 1 (1) is set to off (0).

  • Page 106: Agcset - Automatic Gain Control Adjust

    Gain 0.00–18.00 Example: #55 AGCSET 1 M -10 4 .5 18 On XAP 800 device 5 (#55) the automatic gain control (AGCSET) for mic (M) channel 1 (1) is set to have a threshold of -10dB rms, a target of 4dB rms, a response time of 500ms (.5), and a maximum gain of 18dB.

  • Page 107: Baud - Baud Rate

    Value 9600, 19200, 38400, 57600 (Null to query in text) Example: #56 BAUD 38400 On XAP 800 unit 6 (#56), the baud rate (BAUD) for the RS-232 port is set to 38,400 (38400). CGROUP - Compressor Group Select This command selects/reports the setting of the compressor group on each assignable processing channel.

  • Page 108: Compress - Compressor Adjust

    Gain 0.00 to 20.00 Example: #51 COMPRESS A 6 5 25 250 3 On XAP 800 unit 1 (#51), the compression (COMPRESS) within processing channel A is set to have a threshold of 6dB, a ratio of 5:1 (5), an attack time of 25ms, a release time of 250ms, and a gain of 3dB.

  • Page 109: Decay - Decay Adjust

    Value 1 = Slow, 2 = Medium, 3 = Fast, Null to return current state Example: #53 DECAY 1 3 On XAP 800 unit 3 (#53), the decay rate (DECAY) for mic channel 1 is set to fast (3). DELAY - Delay Adjust This command selects/reports the delay time of each assignable processing channel.

  • Page 110: Dfltm - Default Meter

    Value 0–7 (select device ID) Example: #57 DID 0 On XAP 800 unit 7 (#57), the device ID (DID) is set to 0. DSPVER - DSP Version This command reports the version of the DSP code in the unit. the version is a date and time stamp.This command is read only.

  • Page 111: Filter - Filter Adjust

    2 = low pass, 3 = high pass (Type 8–10) Examples #50 FILTER 1 M 3 2 200 On XAP 800 unit 0 (#50) the filter (FILTER) for mic (M) channel 1, node 3 is set as a low-pass filter (2) at 200Hz.

  • Page 112: Filtsel - Filter Select

    0 = Off, 1 = On, 2 = Toggle, Null returns the current mode Example: #55 FMP A 1 On XAP 800 unit 5 (#55), the first mic priority mode (FMP) for gating group A is set to on (1).

  • Page 113: Gain - Gain Adjustment

    -99 to 99 *, Null to return the current gain A = Absolute, R = Relative, Null = Relative Example: #51 GAIN 4 O 12 A On XAP 800 unit 1 (#51), the GAIN for Output (O) 4 is set to 12dB absolute (A).

  • Page 114: Gate - Gate Status

    Value 0.10-8.00 Null to return the current hold time Example: #50 GHOLD 1 .3 On XAP 800 unit 0 (#50), the hold time (GHOLD) for mic channel 1 is 300ms (.3). Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760 ~ Appendix E: Serial Commands...

  • Page 115: Gmode - Gating Mode

    Value 1 = auto, 2 = manual on, 3 = manual off, Null= current mode Example: #55 GMODE 1 2 On XAP 800 unit 5 (#55), mic channel 1 is set to a gating mode (GMODE) if manual on (2).

  • Page 116: Greport - Gate Report

    1–8 (selects mic input) Value 1–4, A–D (selects gating group), Null to return current value Example: #54 GRPSEL 1 A On XAP 800 unit 4 (#54), mic channel 1 is assigned to gating group (GRPSEL) A. LABEL - Label This selects/reports the label of the specific channel identified in the unit.

  • Page 117: Lmo - Last Mic On Mode

    0 = Unlock Panel, 1 = Lock Panel, 2 = Toggle Value, 3 = Lock when timed out Example: #54 LFP 1 The XAP 800 unit 4 (#54), front panel (LFP) is locked (1). LMO - Last Mic On Mode This command selects/reports last Mic on mode for the specified gating group.
  • Page 118 0 = Off, 1 = On, 2 = Toggle, Null = Query (value is only returned if unit is unlocked) Example: #52 LOCKPRST 5 S 1 On XAP 800 unit 2 (#52), preset 5 (5 S) will be protected (1) whenever the lock option is enabled.

  • Page 119: Lvlreport - Level Report

    1 =On (Add specified level to list of levels to be reported) 2 = Toggle Example: #52 LVLREPORT 8 L I 1 On XAP 800 unit 2 (#52), the level (LVLREPORT) of line level (L) input 8 at the input stage (I) is to be added (1) to the report.

  • Page 120: Macro - Macro Execution/Reporting

    1-255 Value to execute user macros Example: #55 MACRO 1 On XAP 800 unit 5 (#55), Macro (MACRO) 1 is run. MASTER - Expansion Bus Master Mode This command reports the mode of the unit.The mode can be Master or Slave.

  • Page 121: Min - Minimum Gain Setting

    -65.00 to 20.00 Null to return the current setting Example: #54 MIN 2 M -10 On XAP 800 unit 4 (#54), the minimum (MIN) relative gain setting for mic (M) channel 2 is -10dB. Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...

  • Page 122: Minmax - Minimum And Maximum Gain Setting

    -65.00 to 20.00, Null to return current settings Maximum -65.00 – 20.00 Example: #55 MINMAX 2 M -12 10 On XAP 800 unit 5 (#55), the minimum and maximum (MINMAX) relative gain settings for mic (M) channel 2 are -12dB and 10dB respectively.

  • Page 123: Mmax - Maximum Number Of Microphones

    Null = Current maximum number of microphones Example: #52 MMAX A 4 On the XAP 800 unit 2 (#52), the max number of mics (MMAX) in gating group A that are allowed to gate on at any one time is 4.
  • Page 124 4 = Gated (mic sources only)\ Null = Current mode Example: #57 MTRX 1 M 4 O 4 On XAP 800 unit 7 (#57), mic (M) channel 1 is routed (MTRX) as gated (4) to output (O) 4. MTRXLVL - Matrix Attenuation Adjustment This command selects/reports the matrix level at the cross point.

  • Page 125: Ncsel - Noise Cancellation Select

    Value 0 = Off, 1 = On, 2 = Toggle, Null = current mode Example: #51 MUTE 2 M 1 On XAP 800 unit 1 (#51), the mute (MUTE) for mic (M) channel 2 is on (1). NCD - Noise Cancellation Depth This command selects/reports the noise cancellation amount for each mic channel.

  • Page 126: Nlp - Non-Linear Processing Adjust

    Value 0 = Off, 1 = On, 2 = Toggle, Null = Current mode Example: #55 NOM 2 1 On XAP 800 unit 5 (#55), the number of open microphones (NOM) attenuation for output 2 is on (1). OFFA - Off Attenuation Mode This command selects/reports the off attenuation mode of input channels 1–8.

  • Page 127: Paa - Pa Adaptive Mode

    Value 0 = Off, 1 = On, 2 = Toggle, Null = Current mode Example: #57 PAA 1 0 On XAP 800 unit 7 (#57), the PA adaptive mode (PAA) on mic channel 1 is disabled (0). PP - Phantom Power This command selects/reports the setting of phantom power.

  • Page 128: Prgstring - Program String

    Value 1–80 Characters CLEAR = Clear current value Null = Current value Example: #53 PRGSTRING 2 MUTE On XAP 800 unit 3 (#53), string location 2 is programmed (PRGSTRING) with MUTE. Supported special characters \a = alert \b = backspace...

  • Page 129: Ramp - Ramp Gain Adjustment

    Example: #57 RAMP 5 L 6 12 On XAP 800 unit 7 ( #57 ), the gain ( RAMP ) on ine Input 5 will increase at a rate of 6d B/sec until the 12 dB point is reached.

  • Page 130: Serecho - Serial Echo

    1–9 (select output channel to track) Value 0 = none Example: #53 REFSET 2 4 On XAP 800 unit 3 (#53), virtual reference (2) will track gain changes mde on output channel 4. SERECHO - Serial Echo This command selects/reports the serial echo of the RS-232 port.

  • Page 131: Sftymute - Safety Mute

    20 to 20,000 frequency in Hz (only needed when using tone generation) Example: #56 SIGGEN 1 M 2 0 On XAP 800 unit 6 (#56), the signal gen- erator (SIGGEN) is set to input at mic (M) channel 1 with white noise (2) at 0dB.

  • Page 132: Sigtout - Signal Generator Time Out

    Value 0 = Off, 1–30 = Set time out minutes, Null = Current rate Example: #57 SIGTOUT 15 On XAP 800 unit 7 (#57), the signal generator time out (SIGTOUT) is set to 15 minutes. SLVL - Speech Level Control Enable/Disable This command selects/reports the setting of speech level control for a microphone.

  • Page 133: Tout - Time Out Select

    0 = Off, 1–15 (select time out in minutes) Null = Current mode Example: #52 TOUT 5 On XAP 800 unit 2 (#52), the front panel of the unit will time out (TOUT) after 5 minutes. UID - Unit ID This command reports the unit ID.This command is read only.

  • Page 134: Appendix F: Warranty

    Appendices ~ Appendix F: Warranty Appendix F: Warranty ClearOne Communications, Inc. (Manufacturer) warrants that this product is free of defects in both materials and workmanship. For full warranty information and coverage, refer to the ClearOne website at www.clearone.com. Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...
  • Page 135 Appendices ~ Appendix F: Warranty Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...

  • Page 136: Appendix G: Compliance

    Appendices Appendix G: FCC Part 15 Compliance This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

  • Page 137: Glossary

    Adaptive Ambient This portion of the mixer monitors the varying ambient noise level in the room and changes the threshold level at which a microphone gates on. Ambient Level The manually-set background noise level upon which the XAP 800 bases gating protocols. Used only if the Adaptive Ambient feature isn’t used.
  • Page 138 Constant Directivity Horn Equalizer (CD Horn EQ) Horn drivers commonly used in arrays in arenas and auditoriums have an inherent 6dB/octave high frequency rolloff.The XAP 800’s CD Horn EQ compensates for this characteristic. Crossover A device that passes designated frequency segments of an audio signal to various loudspeaker elements in a sound system.
  • Page 139 E-bus network. Because up to eight XAP 800s may be used in the same network, the device ID range is 0–7. Device Type A number which identifies the type of unit. For example, a XAP 800 is device type 5.
  • Page 140 Gain The amount a signal is increased over a given reference, typically 0. Normally specified in dB (decibels). On the XAP 800, gain is adjustable from -65 to 20dB (85dB range) in .5dB increments.
  • Page 141 First Mic Priority and Max NOM. GPIO (general purpose input/output) The Control/Status A and B ports on the XAP 800 unit.The GPIO Builder is used to program Control/Status A pins. G-Ware Software The XAP 800’s setup and configuration software.
  • Page 142 Matrix Mixer A mixer that allows routing of any input or combination of inputs to an output or any combination of outputs. In the case of the XAP 800, the matrix mixer permits level control at each cross point in the matrix.
  • Page 143 Off Attenuation The amount of level reduction a microphone is given when the microphone is not gated on. PA Adaptive Mode The XAP 800 recognizes how much loudspeaker audio is picked up by the microphones and then uses this level as the new ambient level when audio is present at the power amplifier.This prevents loudspeaker audio from gating...
  • Page 144 Pink Noise An audio test signal containing all the frequencies in a given audio spectrum, with equal energy in each octave. Preset One of 32 configurable memories in the XAP 800. A preset can be programmed with a variety of routing, level, gating, delay, filter, and equalizer settings to meet specific application requirements.
  • Page 145 Glossary Signal Delay Used for: • Compensating for physical placement of multiple drivers in a cluster—to align points of acoustic origin in the same plane. • Ensure matching arrival times at listeners from multiple loudspeaker drivers. • Using the Haas effect to maintain localization of the source, even with a distributed system.

  • Page 146: Index

    acoustic echo cancellation 33–35, 40, 99, 131 adaptive ambient 38, 39, 86, 99, 131 add unit 24 AEC reference 7, 33, 38, 40 All Pass 36, 51, 85, 86, 105, 134 ambient level 38–39, 42, 200, 131 ambient noise 35, 38, 131 attack time audio routing 6, 27, 29, 30, 31, 55, 131 Auto Sweep 77...
  • Page 147 Index network 6, 11, 115 reference 33, 40, 58, 123 routing to 29, 30 Expansion Bus In/Out 5, 11, 85 File Access Password 23 filter 35–37, 51–53, 105, 106, 134 First Mic Priority 42, 85, 106, 134 floppy disk 22 flow control 15, 23, 25, 85, 106, 134 Flow Screen 27, 30 front panel control 4, 60...
  • Page 148 master setting 12, 15, 114 Matrix Screen 27–32, 136 Message Log 28, 75 meter 4 Meter menu 16 Meter reference 19 Meter View 76 Meters 43 Min/Max limits 42 mixer mode 9, 12, 14, 15, 136 modem 15, 16, 23, 26, 82, 87, 97, 115, 117 modem access 82 noise cancellation 35, 85, 119, 136 NOM 30, 38, 46, 47, 120, 136...
  • Page 149 Index phase 52 mute 49 propagation 6, 54 Ramp 123 release time 102, 138 Remote Builder 27, 78–82 Remote Panel 6, 10, 57, 90, 91–92 response time 33, 100 see also automatic gain control RJ-45 jumper 11 room combining 5, 60–62, 63 routing matrix 29, 30, 34, 40, 56 RS-232 10, 11, 12, 82, 83, 87, 101, 124 see also serial comands...
