- Page 2 XAP line. With more than 80,000 professional systems sold, ClearOne has earned a reputation as the industry leader in high-end audio conferencing and an innovator in the overall audio conferencing market. Recognizing their customer-focused and forward-looking product strategy, the independent growth-consulting firm Frost & Sullivan presented ClearOne with its 2007 Product Line Strategy Award.
- Page 3 Along with the Converge 560/590, ClearOne offers the most complete professional audio conferencing product line in the industry. CONFERENCING FURNITURE - PG 30 ClearOne’s conferencing furniture makes it easier and more convenient for you to conference.
- Page 4 PERSONAL CONFERENCING Chat The Chat speaker phone products provide unmatched full-duplex audio clarity and connect to a wide variety of devices for conferencing wherever and whenever you need it Page 4...
- Page 5 The Chat 50 is a mobile audio peripheral that connects to a variety of devices and provides crystal-clear, hands-free audio communications. With unmatched full-duplex capability, users can simultaneously speak and listen without audio cutting in and out. The Chat 50 also delivers rich audio playback for music, gaming and other sound files.
- Page 6 CHAT 50 USAGE PROFILES Internet Telephony Enterprise Telephones VoIP Softphones Cell Phones Web Conferencing Instant Messenger Desktop Video Conferencing Audio Playback PC-Based Gaming Page 6 Skype, Vonage, Google Talk, others Avaya, Cisco, Inter-Tel (connectivity limited to certain models) Avaya, Cisco, Nortel Motorola, Nokia IBM Workplace, Microsoft Live Meeting, WebEx AOL, Microsoft MSN, Yahoo...
- Page 7 CHAT 50 CONFIGURATIONS The Chat 50 comes in multiple bundled configurations to allow users to choose the accessories they want included. Also, cables and other accessories are available separately to customize the Chat 50 to exact needs. CHAT 50 BUNDLES Chat™...
- Page 8 Connects to leading Enterprise telephone handsets. Allows user to utilize functions of phone, but enjoy business-class audio conferencing performance. Eliminates need to install additional lines - utilizes whatever line type (analog, digital, VoIP) the phone is connected to - just plug into existing phone and use.
- Page 9 CHAT 150 USAGE PROFILES Enterprise Telephones Internet Telephony VoIP Softphones Web Conferencing Instant Messenger Video Conferencing Audio Playback Avaya, Cisco, others (connectivity limited to certain models) Skype, Vonage, Google Talk, others Avaya, Cisco, Nortel IBM Workplace, Microsoft Live Meeting, WebEx AOL, Microsoft MSN, Yahoo Polycom, Sony, Tandberg QuickTime, RealPlayer, Windows Media Player...
-
Page 10: Chat 150 Configurations
CHAT 150 CONFIGURATIONS The Chat 150 comes in three versions, allowing users to connect to enterprise telephones, PCs, and video conferencing systems. All systems have a USB port for connectivity to a PC. The telephone SKUs vary by phone manufacturer because the breakout boxes that connect the Chat 150 to the phone are tailored to the specific requirements of the phone. - Page 11 TABLETOP CONFERENCING ® ClearOne MAX conference phones deliver rich, full-duplex audio with the unique capability of daisy-chaining multiple phones together. Page 11...

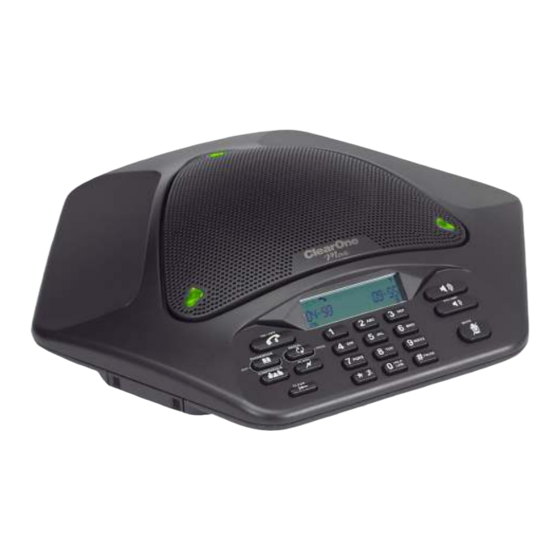

- Page 12 MAX IP The industry’s first fully expandable SIP-based VoIP tabletop conference phone. The MAX IP audio conferencing phone delivers unrivaled audio clarity and room coverage for your VoIP phone system. With ClearOne’s sophisticated audio processing technologies, advanced SIP features, and the ability to daisy-chain up to four phones, MAX IP delivers outstanding audio conferencing value.
- Page 13 TABLE DIAGRAMS The recommended distance between the phone units and each participant is between 3 and 8 feet, depending on room conditions. Background noise, reflective hard surfaces and the number of participants may effect the pickup range. MAX WIRELESS ANALOG CONFERENCE PHONES Wireless ®...
- Page 14 MAX CONFIGURATIONS As shown below, the MAX wireless SKUs come with one base unit and either one or two phone units. The wired SKUs allow users to mix base units and phone units according to room requirements. MAX WIRELESS CONFERENCE PHONES Wireless ®...
- Page 15 USAGE PROFILES MAX EX • Small conference rooms – up to 8 people • Executive offices MAX IP • Home offices MAXAttach • Medium to large conference rooms • Training rooms MAXAttach IP • Unique room configurations, such as U-shaped table layouts •...
- Page 16 PREMIUM CONFERENCING This complete audio conferencing system in a box delivers superior sound quality for stand alone audio conferencing, and connects to video and web conferencing systems. Page 16...
- Page 17 - no wideband required • Interface with AMX and Crestron control systems • Add audio conferencing functionality to existing in-room sound systems, or use RAV’s amplifier and speakers • Manage system remotely via Ethernet connection •...
- Page 18 TABLE DIAGRAMS The recommended distance between the mic pods and each participant is between 4 and 12 feet, depending on room conditions. Background noise, reflective hard surfaces and the number of participants may effect the pickup range. RAV WITH WIRED CONTROLLER RAV 600 Ceiling Speakers 910-153-113...
- Page 19 CONFERENCING MICROPHONES AccuMic ® The AccuMic VC and PC are true plug-and-play echo and noise cancelling microphones that provide superior audio pickup for video and PC-based conferencing. Page 19...
- Page 20 Utilizing ClearOne’s sophisticated audio processing technologies, AccuMic PC and VC echo and noise canceling microphones connect to video and web conferencing systems to provide superior audio pickup. They can daisy chain up to two units to provide expanded coverage for larger rooms. •...
- Page 21 ROOM APPLICATIONS The recommended distance between the mic pods and each participant is between 4 and 12 feet, depending on room conditions. Background noise, reflective hard surfaces and the number of participants may effect the pickup range. AccuMic VC 910-156-115 AccuMic VC Extension MIc 910-156-117 AccuMic PC...
- Page 22 PROFESSIONAL CONFERENCING Converge Converge ® ClearOne’s professional audio conferencing and sound reinforcement products are the most sophisticated, feature-rich systems on the market, offering unrivaled audio processing performance. Page 22...
- Page 23 The Converge Pro series of next-generation professional audio conferencing products delivers a new level of unrivaled performance, flexibility and manageability. These prod- ucts build on the heritage of the worldwide market-leading XAP family. Converge Pro 880T NEW The Converge Pro 880T combines the rich functionality of the Converge Pro 880 with a built-in telephone interface and speaker amplifier for standalone conferencing applications.
- Page 24 XAP’s unmatched audio performance has earned it the distinction as the undisputed leading choice for boardrooms, convention centers, distance learning facilities, courtrooms and other multi-use conference rooms. This scalable solution enables superior audio conferencing performance in medium to large environments.
- Page 25 An easy-to-use conferencing system with flexible micro- phone and speaker options. Converge 560 and 590 deliver exceptional audio conferencing quality at a value price point far superior to the competition. Innovative microphone distribution boxes, plus the ability to connect to rich-media systems, allow great flexibility in a wide variety of medium- sized room applications.
- Page 26 AV Essentials Continuously Variable pattern desktop boundary layer microphone • Continuously variable pick-up pattern selector Potentiometer • Programmable feather-touch membrane switch • Selectable Push-To-Talk or Push-To-Mute • Selectable power up ON or power up MUTED • Selectable bass roll-off filter (12dB/oct @ 200Hz) •...
- Page 27 Microphone packages WIRED UNI-DIRECTIONAL BUTTON MIC PACKAGES 4 Mics with Converge Pro 840 - SCM-BDCP-4 6 Mics with Converge 560 - SCM-BDC5-6 7 Mics & 1 Revolabs Mic with Converge Pro 880 - SCM-BDCP-8R 8 Mics with Converge Pro 880 - SCM-BDCP-8 WIRED UNI-DIRECTIONAL TABLE-TOP MIC PACKAGES 4 Mics with Converge Pro 840 - SCM-TDCP-4 6 Mics with Converge 560 - SCM-TDC5-6...
- Page 28 ROOM APPLICATIONS Distance Learning/Training Facility Courtroom Hotel/Convention Venue Page 28 Boardroom Auditorium...
- Page 29 USAGE PROFILES Converge Pro 880 • Large-scale conferencing venues, such as board rooms, courtrooms, distance learning facilities, hotel and convention centers, training rooms, telemedicine & XAP 800 facilities and houses of worship • Integration of various multimedia systems, such as control systems, video conferencing, in-room sound amplification, video and audio playback and recording, etc.
- Page 30 ADDITIONAL CLEARONE PRODUCTS Conferencing Furniture In addition to a complete line of audio conferencing products, ClearOne also offers an impressive line of conferencing furniture. Page 30...
- Page 31 ClearOne’s conferencing furniture makes it easier and more convenient to conference. Each piece is designed to be highly durable and functional, while also providing the style and elegance required for the most sophisticated settings. Titan Dual Plasma Cart Titan Dual Plasma Cart includes a set-top codec shelf and a center PTZ camera mount.
