ClearOne XAP 800 Datasheet

THE CLEAR CHOICE
FOR PROFESSIONAL
AUDIO CONFERENCING

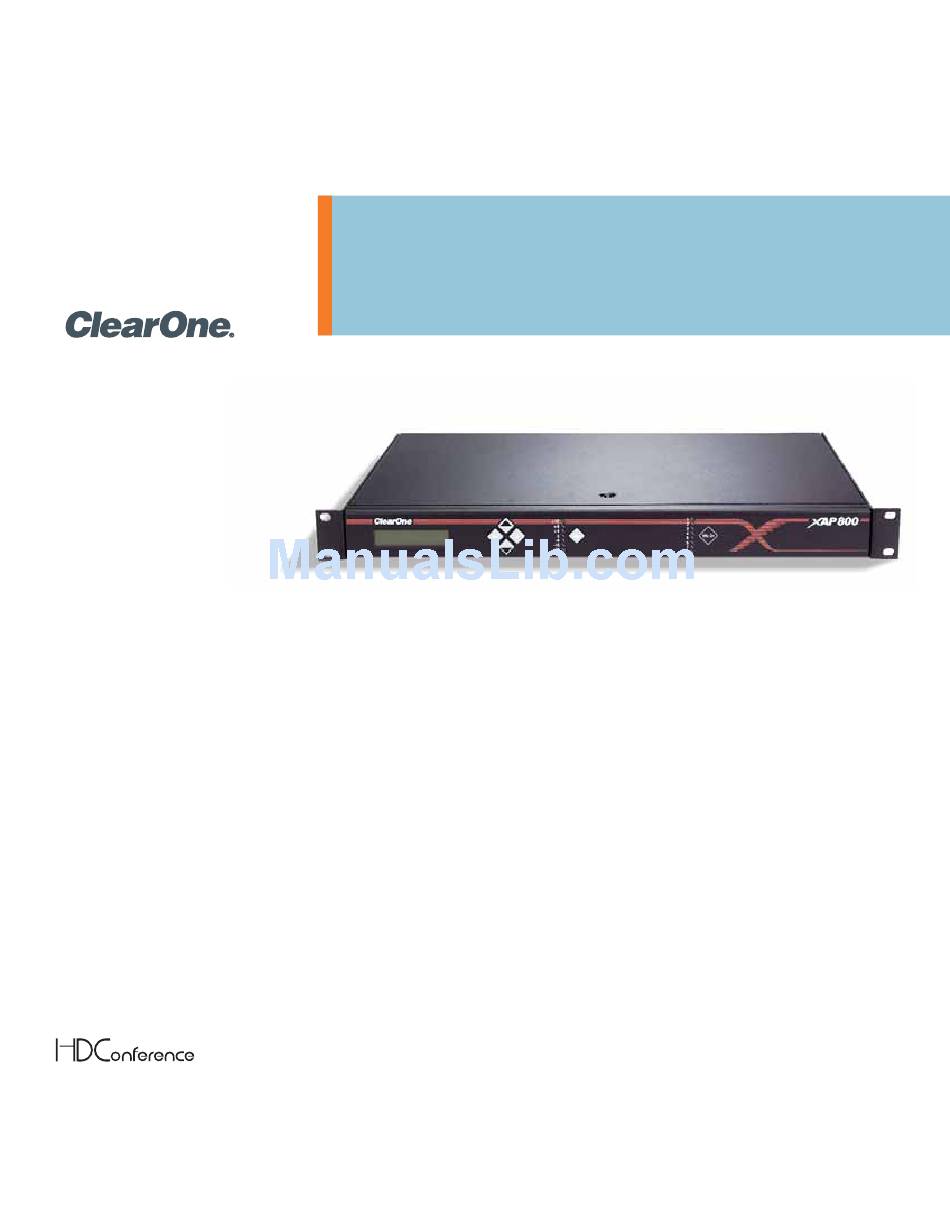

XAP|800
®
Professional Conferencing System
The most sophisticated, feature-rich system on the market. With
unrivaled audio processing performance, XAP 800 is the ultimate
audio management platform for conferencing and sound
reinforcement in large-scale, installed audio applications.
XAP 800 APPLICATIONS
Conference Rooms
Boardrooms
Courtrooms
Distance Learning Facilities
Convention Centers and Hotels
Training Rooms
Telemedicine Facilities
Houses of Worship
XAP 800 ADVANTAGES
Superior Audio Performance
+ Distributed Echo Cancellation on every mic input
®
+ Noise cancellation on each mic/line input
+ Full-duplex sound enables participants to speak and listen at the same time
without cutting in and out
+ First-mic priority eliminates hollow "tunnel" sound by activating only the
microphone closest to the person speaking
+ Eight microphone/line inputs, with four additional line inputs
+ 12 outputs
+ 20 Hz-20 kHz bandwidth for full-range audio response
+ Automatic level control and automatic gain control
+ Four input filters on each of eight mic inputs; 15 filters on each of eight
independent processing blocks
Configuration Flexibility
+ Scalable – link multiple XAP units (XAP 800, XAP 400, XAP TH2) for up to 64
microphones and 16 phone lines
+ 32x32 matrix with level control (in .5 dB steps) at each cross point to simplify
complex mixing operations; Clear Matrix button easily clears cross points
+ Wide variety of system control options: ClearOne IR Remote, Volume Control,
Select Control, 3rd-party control systems such as AMX, Crestron
+ Configuration control through included G-Ware™ software, RS-232 port
+ Enhanced expansion bus, featuring 12 bidirectional audio buses
+ Four mic gating groups allow separation of mics into individual mixer gating
groups for greater configuration flexibility
Ease of Use & Control
+ Labels for all inputs, outputs, macros and presets are saved within the unit
+ Front panel control of gain and mute
+ 32 presets that can be executed on-the-fly without disturbing other ongoing
preset operations
+ Macro scripting language and recorder simplifies macro creation with
point-and-click convenience
+ RAMP serial command for greater control over gain adjustments – no external
volume card required
Conferencing Capability
+ Add teleconferencing with XAP TH2 or XAP 400
+ Link up to 16 XAP TH2s for 16-line capability
PROFESSIONAL CONFERENCING
DATA SHEET
<
