TECH NOTE
CLEARONE DOCUMENT 801-000-000-05
(REVISION 1.1) November 2012
OVERVIEW
This Tech Note applies to the following Converge Pro systems using the ClockAudio CS 2S-RF microphone system:
•
880
•
880T
•
880TA
•
8i
The ClockAudio TS-001 is a Flush mount electronic touch switch with 10 green / red led arrays to give clear precise visual status of operation. This
document gives instructions on how to wire the TS-001 to the Converge Pro and the necessary programming within the Converge Pro to use the
TS-001.
The TS-001 requires 12 VDC for operation, but the voltage supply of the Converge Pro provides only 3.3 VDC. Because the Converge Pro does not
supply the required voltage, an external power supply is required. .
This document assumes the reader has knowledge of programming with ClearOne Console. If further assistance is needed please refer to the
Converge Pro user manual or available technical documents in the Resources section of the ClearOne website at http://www.clearone.com, or call
ClearOne Technical Support at 1-800-283-5936.
OPERATION OF THE CLOCKAUDIO TS-001 TOUCH SWITCH
The ClockAudio TS-001 is a touch switch which supplies a logic low when pressed, and has an array of 10 red and 10 green LED's to show status.
Depending on whether the ClockAudio TS-001's green wire or pink wire is grounded determines whether the array will illuminate green or red. When
ground is provided for the red LED the ground for the green LED is lifted and vise versa. This ensures the array does not illuminate both red and
green at the same time. If all eight microphone channels on the Converge Pro are to be connected with their own ClockAudio TS-001, a total of 16
switchable grounds, or status pins, are required. Because the Converge Pro has only 8 user assignable status pins, an external relay is required.
»
NOTE: The four microphone channel Converge Pro 840T contains 8 user programmable status pins, two for
each microphone, on Control Port A. Because of this a relay is not required with the 840T. See the "Converge
Pro 840T" section below.
CONVERGE PRO 88X AND 8I CONFIGURATION
•
Converge Pro
•
Clock Audio TS-001
•

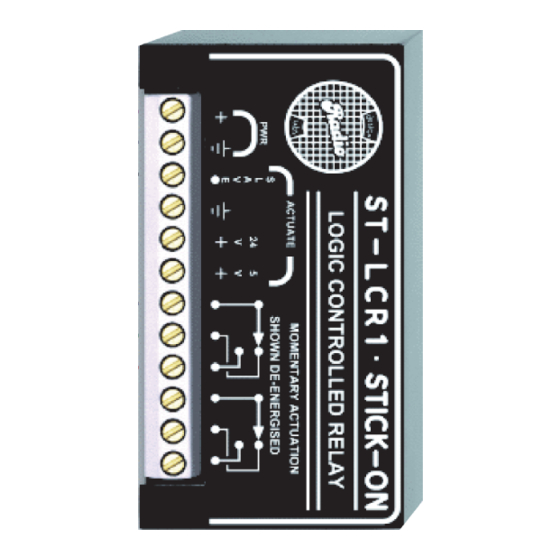

Relay (RDL ST-LCR)
•
External 24 Volt DC Power Supply
•
External 12 Volt DC Power Supply
•
DB25 Male Connector
•
Wire (22 Gauge Recommended
U
C
A
®
sing the
loCk
Udio
•
840T
•
SR1212
•
SR1212A
PRODUCTS SUPPORTED:
All Converge Pro Products
except the TH20 and VH20
ts-001
C
with the
onverge
P
ro
