Connect a Power Supply
Before You Begin
Obtain a Powertron 12V DC power supply. The power supply is ordered separately. See
the table below.
Caution
Only use Extreme approved power supplies for your access point. Unapproved
third-party components can damage your AP.
Table 19: Power Accessory
Part number
37215
About This Task
You can power the AP through the ETH0 RJ45 Ethernet port. But if you prefer an
external power supply, then you can use the 12V DC power supply. There is no wall
mount bracket for the power supply.
See the Power Profile
Note
Power over Ethernet (PoE) is disabled when you use an external power supply.

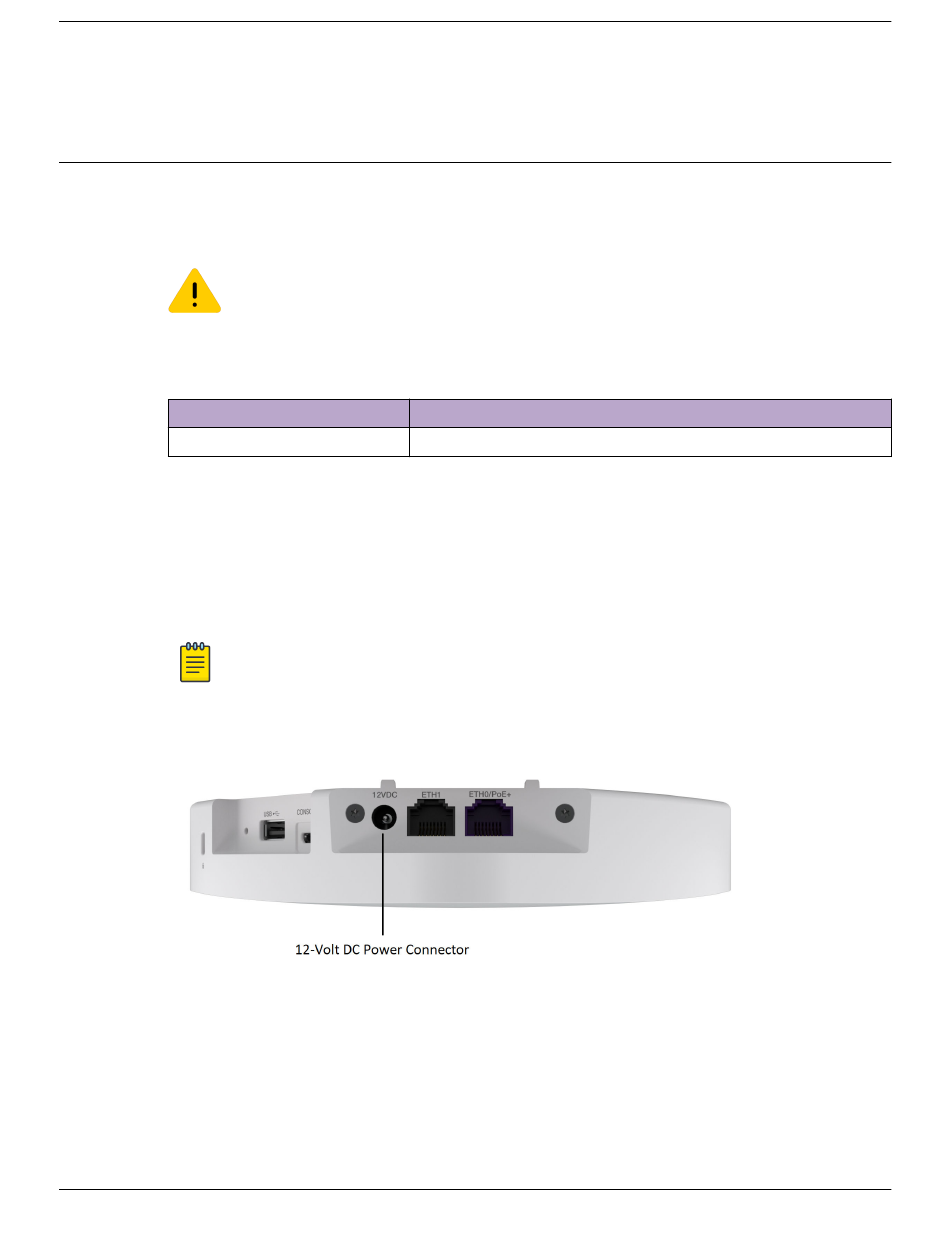

Figure 16: AP3000 Power connector
Procedure
Plug the power supply into the 12-volt power connector.
The LED lights up.
34 ExtremeWireless™ AP3000X Access Point Installation Guide
Description
PWR 12V DC, 2A (24W), 2.5 mm X 5.5 mm connector
for power consumption specifications.
