ASSEMBLY INSTRUCTIONS

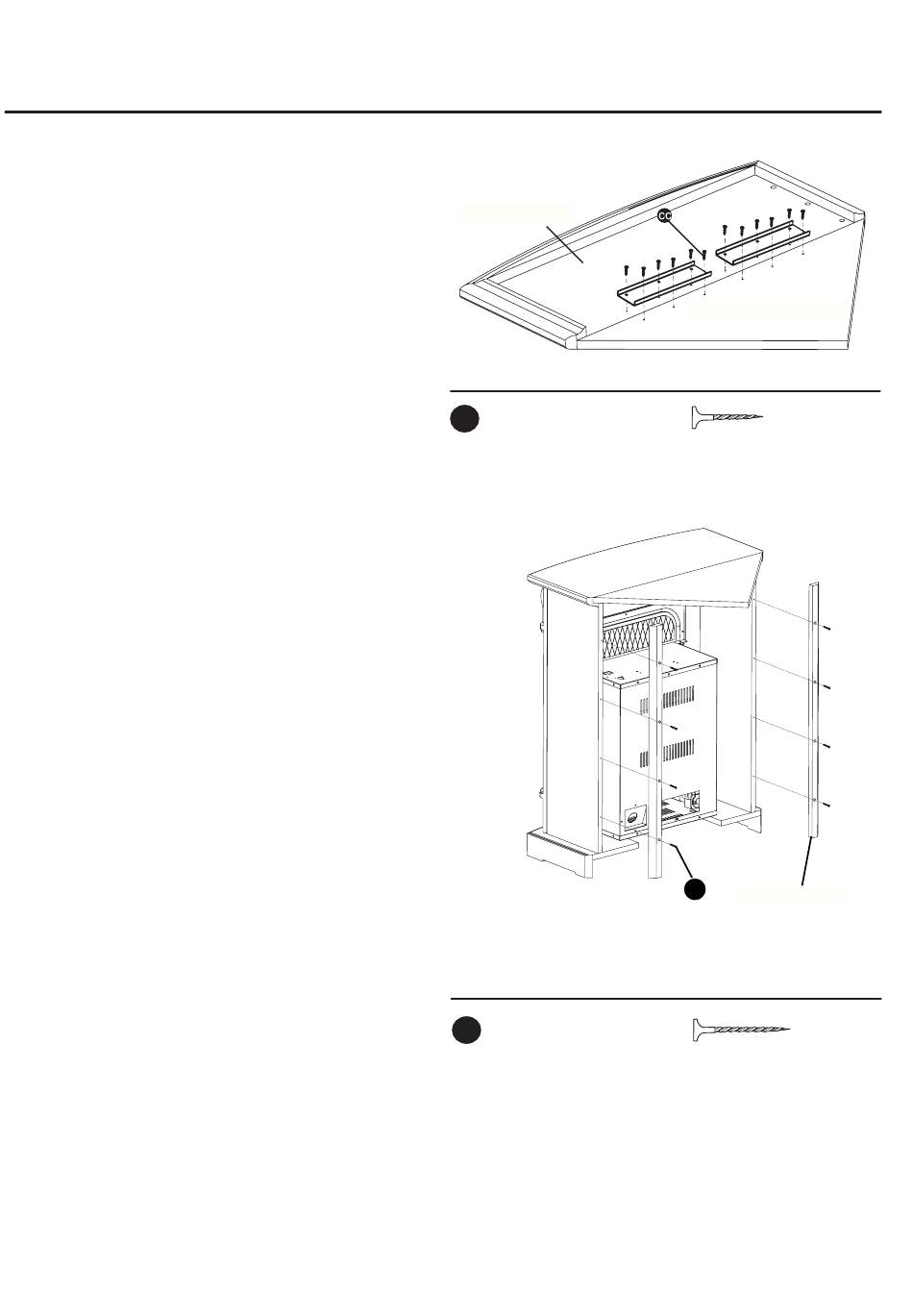

1. Turn the fireplace top panel over. Using the connector
brackets that are supplied, connect the fireplace top panel
to the triangular top triangle panel with ST4 screw - 5/8 in.
(CC) as shown in Fig. 1.
With the fireplace top panel assembled, reattach the
assembled top with the fireplace.
2. Attach the left and right rear barrier trim pieces to the back
of the fireplace with ST4 screw - 1 3/16 in. (BB) as shown in
Fig. 2.
Fireplace Top
Hardware Used
ST4 Screw - 5/8 in.
CC
Hardware Used
ST4 Screw - 1 3/16 in.
BB
28
Fig. 1
Top Triangle Panel
x 12
Fig. 2
BB
Rear Barrier
x 8
