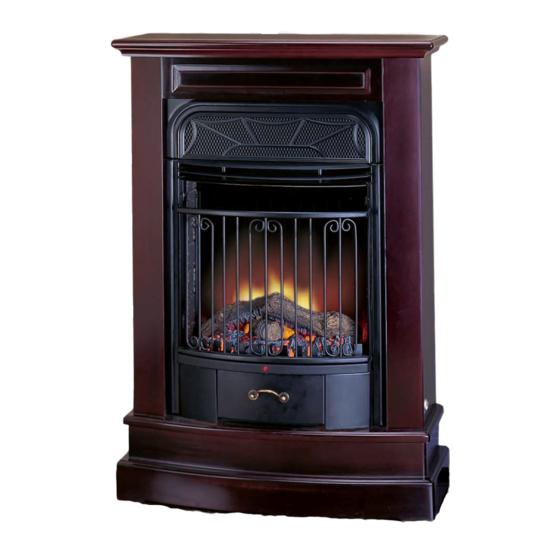

Installation Instructions and Homeowner's Manual
WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
INSTALLER: DO NOT DISCARD THIS MANUAL-LEAVE FOR HOME OWNER
FOR YOUR SAFETY
DO NOT STORE
OR USE GASOLINE OR OTHER
FLAMMABLE VAPORS OR LIQUIDS
IN THE VICINITY OF THIS OR ANY
OTHER APPLIANCE
1
PC(220)-VCL100-01-0709
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Procom V50TYLA-BC
Summary of Contents for Procom V50TYLA-BC
-
Page 1: For Your Safety
Installation Instructions and Homeowner’s Manual WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. INSTALLER: DO NOT DISCARD THIS MANUAL-LEAVE FOR HOME OWNER FOR YOUR SAFETY DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS OR LIQUIDS... -
Page 2: Table Of Contents
Heater Control…………………………………………………………………… .. 6 Instructions for power………………………………………………………………. 6 Specifications………………………………………………………………….. …. 7 Replacement Parts Pictures…………………………………………………….. 8 Replacement Parts List (V50TYLA-O)…………………………………………… 9 Replacement Parts List (V50TYLA-C)……………………………………………10 Replacement Parts List (V50TYLA-DO)………………………………………… 11 Replacement Parts List (V50TYLA-BC)………………………………………… 12 Replacement Parts List (V50TYLAR-BC)……………………………………… 13 USING THIS APPLIANCE …... -
Page 3: Important Instructions
Read all instructions before using this appliance. This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet(1m.) from the front of this appliance. -
Page 4: Clearance To Combustibles
CLEARANCE TO COMBUSTIBLES Back…………………………0mm ………… 0mm Sides…………….. Floor……………. . ………… 0mm ………… 610mm Top………………. . ELECTRICAL CONNECTION A 10 AMP, 220 Volt,50Hz circuit with a properly grounded outlet is required. Preferably, the stove will be on a dedicated circuit. Other appliances on the same circuit may cause the circuit breaker to trip or the fuse to blow when the heater is on operation. -
Page 5: Glass Information
MAINTENANCE OF MOTORS The motors used on the fan and flame genera- tor assembly are prelubricated for extended bearing life and require no further lubrication. However, periodic cleaning/vacuuming of the fan/heater unit is recommended. WARNING: Make sure that the power is turned off before proceeding. -
Page 6: Operating Instructions
This section provides easy step by step instructions for operating your fireplace. 1. Make sure the unit is unplugged from the power source。 2. Plug the fireplace into a 10AMP/220V outlet. If the cord does not reach, you may use an extension cord rated for a minimum of 1900 watts. -
Page 7: Specifications
Dimensions, CM (H x W X D) Fireplace 97.8x67x35.9 Carton 105.1x74.5x44.1 Weight, Kgs Fireplace 35.9 Shipping 43.1 Model: V50TYLA-BC Voltage: 220V/50HZ Total Amps: 6.5A Total Watts: 1350W Heating Ratings: 1200W Dimensions, CM (H x W X D) Fireplace 97.8x67x35.9 Carton 105.1x74.5x44.1 Weight, Kgs Fireplace 35.9... -
Page 8: Replacement Parts Pictures
REPLACEMENT PARTS PICTURES OF V50TYLA-O V50TYLA-C V50TYLA-DO V50TYLAR-BC V50TYLA-BC... -
Page 9: Replacement Parts List (V50Tyla-O)
Ite m # P a rt De scripition S et Fan/Heater A s s em bly S y nc hroniz ation M otor-220V olt A C w/Term inal Cord P ower H05V V -F3GX1.0 w/Term inal ON/OFF S witc h Heater Control (Therm os tat) Heater Control K nob Flam e Generator A s s em bly /Firewood Glis ten P aper P T/32GS 370/FE 33A 205-01... -
Page 10: Replacement Parts List (V50Tyla-C)
Item# Part Descripition Log Set Fan/Heater Assembly Synchronization Motor-220Volt AC w/Terminal Cord Power H05VV-F3GX1.0 w/Terminal ON/OFF Switch Heater Control (Thermostat) Heater Control Knob Flame Generator Assembly/Firewood Glisten Paper PT/32GS370/FE33A205-01 Light Bulb Socket w/Wiring Assembly Screen Top Panel Side Panel (Right/Left) Left Lower Panel/Right Lower Panel Door Brass Knob... -
Page 11: Replacement Parts List (V50Tyla-Do)
Item# Part Descripition Log Set Fan/Heater Assembly Synchronization Motor-220Volt AC w/Terminal Cord Power H05VV-F3GX1.0 w/Terminal ON/OFF Switch Heater Control (Thermostat) Heater Control Knob Flame Generator Assembly/Firewood Glisten Paper Light Bulb Socket w/Wiring Assembly Screen Top Panel Side Panel (Right/Left) Left Lower Panel/Right Lower Panel Door Brass Knob Back Panel... -
Page 12: Replacement Parts List (V50Tyla-Bc)
Upper Decorating Frame Upper Decorating W ire Upper (Mid) Louver Pilot Light Bulb Socket w/W iring Assembly Base Plate ( Not shown) Driverwheel 2(Not shown) Switch Mount Panel ( Not shown) V50TYLA-BC Part Number VL050-01A NFHTX186-R/VB17-000-R FE23A307 NFHL008-R-A VL067-01 VL053-02... -
Page 13: Replacement Parts List (V50Tylar-Bc)
Item# Part Descripition Log Set Fan/Heater Assembly Synchronization Motor-220Volt AC w/Terminal Cord Power H05VV-F3GX1.0 w/Terminal ON/OFF Switch Heater Control (Thermostat) Heater Control Knob Flame Generator Assembly/Firewood Glisten Paper PT/32GS370/FE33A205-01 Light Bulb Socket w/Wiring Assembly Screen Top Panel Side Panel (Right/Left) Left Lower Panel/Right Lower Panel Door Brass Knob...
