※Note:Once you enter the quick charge trigger/detection interface, all operations
must be carried out carefully.It is forbidden to access equipment that cannot
withstand high voltage.In the process of using this function,the author shall not be
liable for losses caused by misoperation.

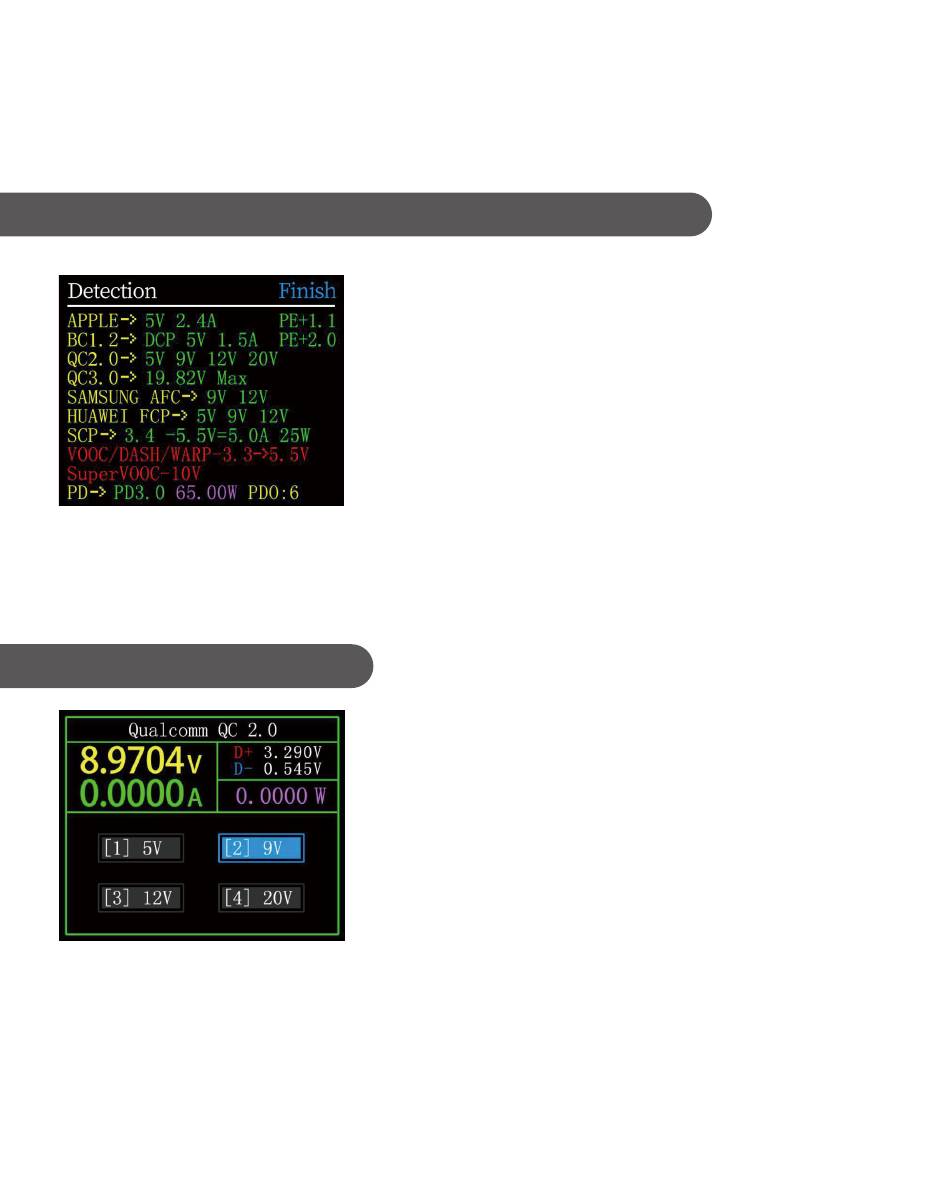

【 9.0.1 】 Fast charge protocol automatic detection
●After the test is completed, click the middle button to start the test again; click the
BACK button to return to the previous page.
【 9.0.2 】 QC2.0 Trigger
●In this mode,the meter tries to trigger various
protocols in turn,display the test results on the
screen,Red is not
the process of testing,such as measuring PD
chargers.It is normal to restart and continue
testing.During the test, it is forbidden to connect
to any equipment at the back end.
●It does not respond to any key operation during
the test. If you want to exit during the test, please
unplug the meter directly.
●In QC2.0 trigger mode, use the left and right keys
to select the trigger voltage, and click BACK to
return.
10
supported,Green is support.In
