Fnirsi FNB48P Manual

Fnirsi FNB48P Manual

Usb fast charge tester
Hide thumbs Also See for FNB48P:
Table of Contents

Advertisement

Quick Links

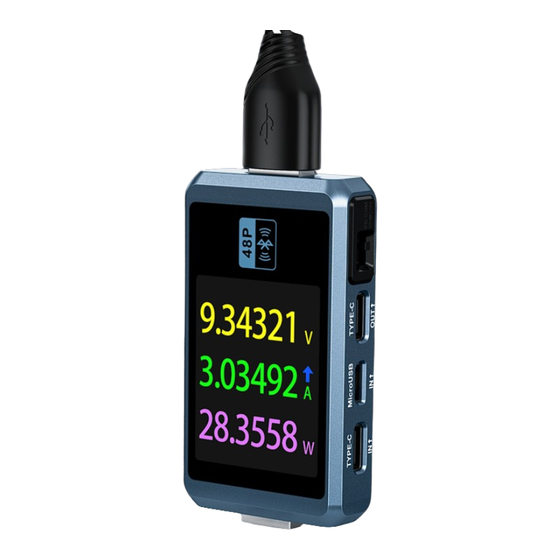

FNB48P
USB Fast charge tester

Advertisement

Table of Contents
loading

Related Manuals for Fnirsi FNB48P

Summary of Contents for Fnirsi FNB48P

  • Page 1 FNB48P USB Fast charge tester...
  • Page 2 Catalog 4.0.1 Human-computer interaction 4.0.2 Voltage and Current 4.0.3 Fast charge trigger 4.0.4 Wire identification class 4.0.5 Miscellaneous 7.0.1 Summary page 7.0.2 Record page 7.0.3 Fast charge recognition page 7.0.4 Curve display page...

  • Page 3: Table Of Contents

    7.0.4 Wire resistance measurement page 8.0.1 Energy statistics list 8.0.2 Battery capacity calculation tool 9.0.1 Fast charge protocol automatic detection 9.0.2 QC2.0 Trigger 9.0.3 QC3.0 Trigger 9.0.4 Huawei FCP trigger 9.0.5 Huawei SCP trigger 9.0.6 Samsung AFC trigger 9.0.7 PD Protocol trigger 9.0.8 PD PD Protocol conversion 9.0.9 VOOC/WARP Constant voltage trigger 9.0.10 SVOOC Trigger...
  • Page 4 11.0.1 General 11.0.2 Record 11.0.3 Trigger related configuration 11.0.4 system...
  • Page 5 1.Versions and Updates This product has many functions with frequent software and hardware updates, so, please be aware that the manual may be updated at any time. Please get the latest information on the official website. 2.Overview The FNB48USB tester is a high-reliability, high-safety USB voltage and current detection meter and a mobile communication terminal fast charging trigger.
  • Page 6 ●Do not charge the phone after the fast charge is triggered.The manufacturer is not responsible if the phone is damaged by doing so. 4.Performance description 【 4.0.1 】 Human-computer interaction 1. 1.77 inch TFT-LCD screen 3.Touch switch 2. Multi-function switch 【...
  • Page 7 【 4.0.5 】 Miscellaneous 1. Record of startup time 2. Onboard temperature measurement 3. Gravity sensor, automatically switch the display direction 4. PD monitor 5. Analog DASH cable 6. Apple 2.4A acceleration 5.Structure appearance 1. Input monitoring port: USB-A, 5-PIN male; 2.
  • Page 8 6.Technical index Accuracy: ±(a%(‰) reading + number of words) Index Range Resolution Accuracy 0.00001V ±(0.2‰+2) Monitor voltage 4～24V 0.00001A ±(0.5‰+2) Monitor current 0～6.5A Monitor power 0～156W 0.00001W ±(0.5‰+2) Load equivalent 0～9999.9Ω 0.0001Ω ±(0.5‰+2) internal resistance D+/D- voltage 0～3.3V 0.001V ±(1.0%+2) ℃...
  • Page 9 7.Main page ●Except for special instructions, the left and right buttons switch pages/menus, the middle button confirms, and the BACK button cancels/returns. ●On all pages, long press the BACK button to turn off the screen backlight. Description 【 7.0.1 】 Summary page ●Only the three key parameters of voltage, current and power are displayed, →indicates the direction of current.
  • Page 10 ●There are two text boxes in the lower right corner, the first 1.0 from top to bottom is the setting menu -> recording -> offline recording time, in hours, it is highlighted when recording, otherwise it is grayed out; the second is the setting menu -> record->energy statistics time, unit hour, when the value is 0.0, it means there is no time limit for statistics.
  • Page 11 Instructions ●Long press the left button: prompt to enter the fast charge trigger module, if a certain protocol has been triggered, it will prompt to release. ●Click the middle button: start/stop the trigger timing. ●Long press the middle button: prompt to clear the trigger timing. ●Long press the right button: enter the charging tool menu (please see the subsequent instructions).

  • Page 12: Wire Resistance Measurement Page

    【 7.0.5 】 Wire resistance measurement page Description ●FNB48 uses the differential pressure method to measure the internal resistance of the cable, which needs to be used with a constant current load. Instructions ●Click the middle button: use the current voltage and current value as the reference value.

  • Page 13: Battery Capacity Calculation Tool

    【 8.0.2 】 Battery capacity calculation tool Description ●In the record page (7.0.2), press and hold the right button to enter. ●Select the statistics group,set battery voltage, energy conversion efficiency, the battery capacity can be calculated.Click the middle button to move the green dot on the left between Group, battVol and Conv Eff.

  • Page 14: Fast Charge Protocol Automatic Detection

    ※Note:Once you enter the quick charge trigger/detection interface, all operations must be carried out carefully.It is forbidden to access equipment that cannot withstand high voltage.In the process of using this function,the author shall not be liable for losses caused by misoperation. 【...

  • Page 15: Qc3.0 Trigger

    【 9.0.3 】 QC3.0 Trigger ●In QC3.0 trigger mode,Use the left and right keys to decrease/increase the trigger voltage,click BACK to return. ●Press the left/right keys to quickly decrease/in- crease the voltage. 【 9.0.4 】 Huawei FCP trigger The operation method is the same as QC2.0 trigger. 【...

  • Page 16: Pd Pd Protocol Conversion

    【 9.0.8 】 PD Protocol conversion This function is used for only QC2.0 charger,But want to supply power to PD appliances. ●Before use,switch the PD communication switch to ON,then enter the PD protocol conversion mode, after entering,plug in PD appliances,you can perform PD fast charge.

  • Page 17: Pd Listener

    10.Charging tool On the (7.0.3) fast charge identification page, long- click the right button to enter the charging tool menu. The functions are: ●PD monitor ●Read the E-Marker cable ●Read the DASH cable ●Analog DASH cable ●Apple 2.4A acceleration 【 10.0.1 】 PD Listener ●When using PD listener,Need to turn the PD communication switch to ON,And use a power supply not greater than 16V (usually 5V) and a...

  • Page 18: Read E-Marker Cable

    ●The voltage contained in the right column 0x3304B12C when sending a Request message,Information such as current. ●In addition,under this interface,long press the left button,the data buffer can be cleared. Long press the right button to quickly browse the messages. Note: ●Open the settings menu ->...

  • Page 19: Read Dash Cable

    【 10.0.3 】 Read DASH cable ●Enter this function,plug in the DASH cable,you can read the chip-related data,as shown below. 【 10.0.4 】 Analog DASH cable This function is used without DASH cable ●The USB-A head of the DASH cable will have one more data pin than the ordinary USB-A data cable.And one more chip,used to identify and start VOOC/WARP flash charge.
  • Page 20 11.Setting menu ●In the settings menu,left click and right click to select menu options,click the middle button to enter/con- firm the current option,click the BACK button to return / cancel / exit the current option / menu. 【 11.0.1 】 General Set up some general system configurations.
  • Page 21 【 11.0.2 】 Record Set the configuration required for logging data. ●Curve recording time： Set the recording time of the voltage and current curve,max- imum 9 hours,set to no time record.Every time you change the configuration, the curve will be cleared to 0. ●Statistical current threshold：...
  • Page 22 12.Upgrade firmware instructions 1.Open the USB Meter upgrade tool. 2.When the meter is off, press the middle button to access the PC online port, it will display the connected, device model, and device firmware version. （The connection cable used in the upgrade must have data transmission to be able to connect successfully.）...
  • Page 23 . After the upgrade is complete, the device will automatically restart and enter the main interface. 13.Contact US Any FNIRSI'users with anyquestions who comes to contact us wiil have our promise toﾠgetﾠasatisfactoryﾠsolutionﾠ+ﾠanﾠExtraﾠ6-MonthﾠWarrantyﾠtoﾠthanksﾠfor yoursupport! By the way, We have created an interesting community, welcome to contact FNIRSI staff...
  • Page 24 下载用户手册&应用软件 Download User manual&APP&Software...
